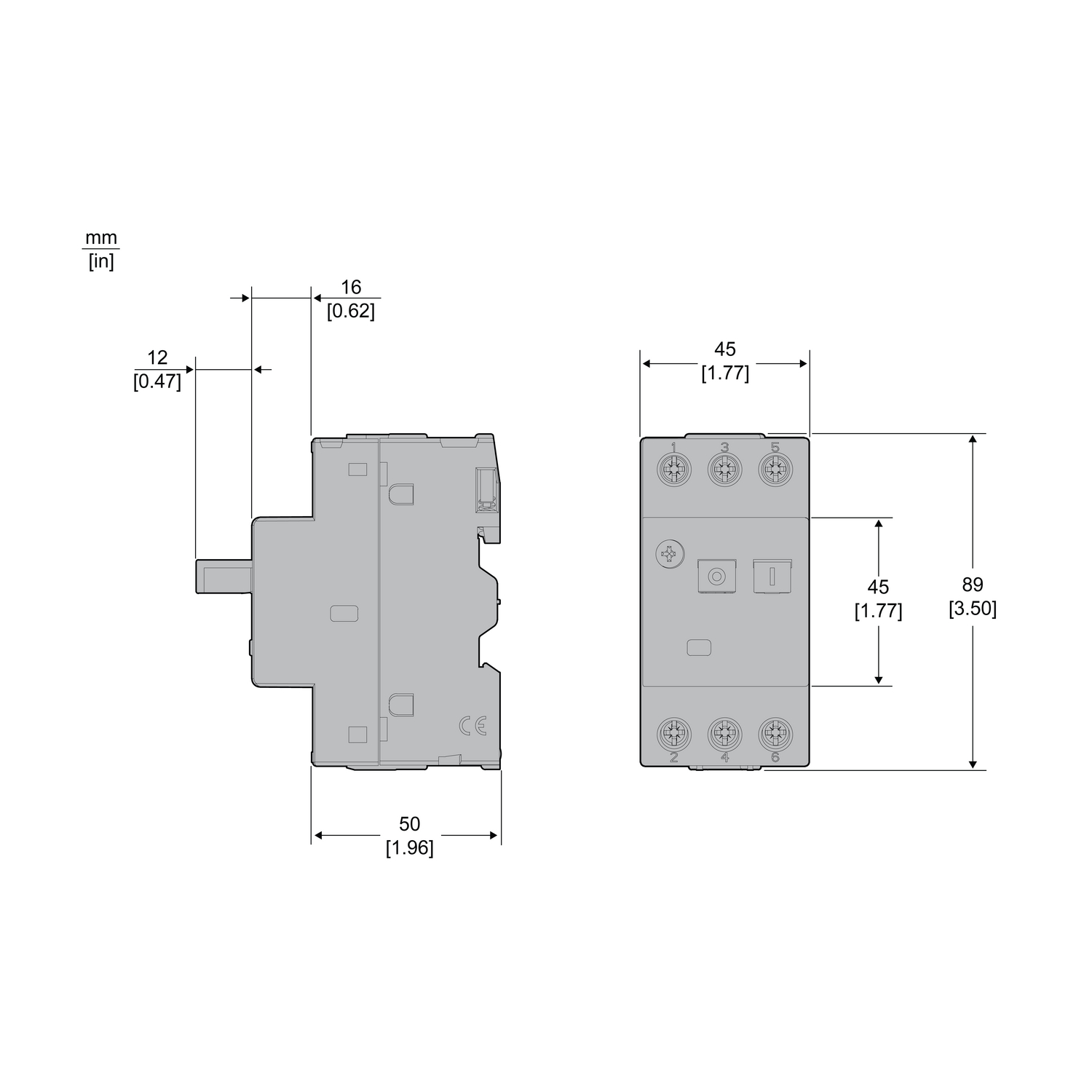

MOTOR CIRCUIT-BREAKER EASYPACT GZ1E,AC-3,3P,9..14A
Product code
3782967
No product description available.
Product details
Technical specifications
Product class (ETIM)Motor protection circuit-breaker (EC000074)
Overload release current setting9 - 14 A
Adjustment range undelayed short-circuit release170 - 170 A
With thermal overload protectionyes
Phase failure sensitiveno
Switch off techniqueThermomagnetic
Rated operating voltage690 - 690 V
Rated permanent current Iu14 A
Rated operation power at AC-3, 400 V5.5 kW
Power loss2.5 W
Type of electrical connection of main circuitScrew connection
Type of control elementPush button
Device constructionComplete device in housing
With integrated auxiliary switchno
With integrated under voltage releaseno
Number of poles3
Product codes
SAPHEK830
STK3782967
PLC3782967
GTIN/EAN3606480567872
Manufacturer part numberGZ1E16
Vendor material number3782967
Basic information
Package measurements (L x W x H)90 x 85 x 45 mm
Package volume0.344 l
Package weight0.274 kg
Base uniteach
Package units1
Package contents–
UNSPSC39121521
BrandSCHNEIDER ELECTRIC
VendorSCHNEIDER ELECTRIC FINLAND OY
Documents (4)
Environment and safety
Manufacturer
NameSchneider Electric Finland Oy
Websitehttps://www.se.com/fi/fi/
Postal addressSokerilinnantie 11 C, 02600 Espoo, Finland
