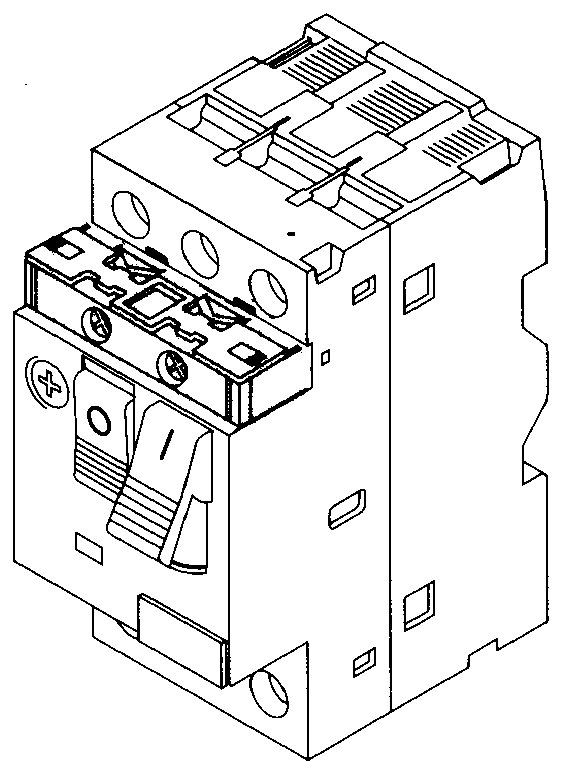

MOTOR CIRCUIT-BREAKER GV2ME14
Product code
3760038
TeSys GV2ME moottorinsuojakatkaisija 6-10A, 3-4kW 400V, 100kA/400V, painikeohj
Perfect protection in a single product
- Compact and easily selectable TeSys GV2 motor protection circuit breakers are only 45 mm wide and are classified according to control method, performance, and other features: push-button or rotary knob control, breaking capacity, motor protection, and accessories
- Safe protection up to 15 kW / 400 V motor size
- Local motor control from the motor protection circuit breaker or remote control via contactor
- The circuit breaker includes short-circuit protection and motor overload protection
- Fingers cannot touch the live parts of the circuit breaker
- Undervoltage release (option) enables the circuit breaker to trip in case of voltage loss
- Undercurrent release (option) enables the circuit breaker to trip using control voltage
- The motor protection circuit breaker can be locked in the open position with three padlocks
- Connections: tunnel terminals / screw terminals, spring terminals
- This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Motor protection circuit-breaker (EC000074)
Overload release current setting6-10 A
Adjustment range undelayed short-circuit release138-138 A
With thermal overload protectionyes
Phase failure sensitiveyes
Switch off techniqueThermomagnetic
Rated operating voltage230-690 V
Rated permanent current Iu10 A
Rated operation power at AC-3, 230 V2.2 kW
Rated operation power at AC-3, 400 V4 kW
Power loss2.5 W
Type of electrical connection of main circuitScrew connection
Type of control elementPush button
Device constructionComplete device in housing
With integrated auxiliary switchno
With integrated under voltage releaseno
Product codes
SAPABU788
STK3760038
PLC3760038
GTIN/EAN3389110343137
Manufacturer part numberGV2ME14
Vendor material number3760038
Basic information
Package measurements (L x W x H)92 x 85 x 47 mm
Package volume0.368 l
Package weight0.278 kg
Base uniteach
Package units1 / 24
Package contents–
UNSPSC39121521
BrandSCHNEIDER ELECTRIC
VendorSCHNEIDER ELECTRIC FINLAND OY
