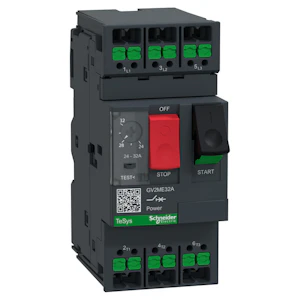

MOTOR CIRCUIT-BREAKER TESYS 3P, AC3, 24-32A, SNAP-IN
Product code
3783235
No product description available.
Product details
Technical specifications
Product class (ETIM)Motor protection circuit-breaker (EC000074)
Overload release current setting24 - 32 A
Adjustment range undelayed short-circuit release416 - 416 A
With thermal overload protectionyes
Phase failure sensitiveyes
Switch off techniqueThermomagnetic
Rated operating voltage230 - 690 V
Rated permanent current Iu32 A
Rated operation power at AC-3, 230 V7.5 kW
Rated operation power at AC-3, 400 V15 kW
Power loss2.5 W
Type of electrical connection of main circuitOther
Type of control elementPush button
Device constructionComplete device in housing
With integrated auxiliary switchno
With integrated under voltage releaseno
Product codes
SAPDNV497
STK3783235
PLC3783235
GTIN/EAN3606487541929
Manufacturer part numberGV2ME32A
Vendor material number3783235
Basic information
Package measurements (L x W x H)105 x 90 x 50 mm
Package volume0.472 l
Package weight0.314 kg
Base uniteach
Package units1
Package contents–
UNSPSC39121521
BrandSCHNEIDER ELECTRIC
VendorSCHNEIDER ELECTRIC FINLAND OY
Documents (3)
Brochures & documents
Links
Environment and safety
Manufacturer
NameSchneider Electric Finland Oy
Websitehttps://www.se.com/fi/fi/
Postal addressSokerilinnantie 11 C, 02600 Espoo, Finland
