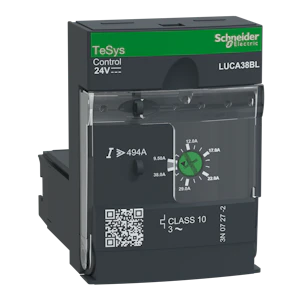

MOTOR PROTECTION RELAY TESYS CONTROL UNIT 9,5-38A 24VDC STD

Compact motor starter up to 38 A (18.5 kW / 400 V) TeSys U is the smallest and most versatile motor starter on the market for direct and reversing motor outputs with full short-circuit coordination up to 50 kA / 400 V breaking capacity (25 kA / 38 A). Features: The only 45 mm wide TeSys U starter integrates all motor starter functions in a single component for direct-on-line (DOL) and reversing starts. Control voltages (electronic coil): - 24 V AC / DC (direct PLC control) - 48…72 V DC / 48 V AC - 110…220 V AC / DC Breaking capacity and short-circuit coordination: - Up to 15 kW / 32 A / 400 V: 50 kA Icu - 18.5 kW / 38 A / 400 V: 25 kA Icu - Full short-circuit coordination according to IEC 60947-6-2. Overload protection: - Wide adjustment ranges allow only 7 non-adjustable settings (/protective relay type) between 0.15 – 38 A. - Selection of starting time classes depending on relay type: 10, 20, or adjustable class 5…30 - Overload trip test button on LUCB** protective relay - LUCM** multifunctional protective relay (up to 32 A) includes extended protection, monitoring, and control features Plug-in accessory options: - Auxiliary and alarm contacts - Motor load or overload monitoring - Bus communication: Modbus, CANopen, Profibus, ASi... Reversing starter width: only 45 mm Benefits: The simple, efficient, modular, and compact TeSys U motor starter is suitable for both direct and reversing applications. TeSys U is among the first intelligent and compact motor starters integrating all functions of direct and reversing starters into a single product with only 45 mm width up to 18.5 kW motor power. Simple to maintain: Modular, plug-and-play construction enables rapid modifications Easy to design, install, and operate: Only one enclosure size up to 38 A Efficient: Save up to 45% in installation and wiring time Flexible: Final installation of protective relay on-site without wiring Compact size: 45 mm reversing starter reduces control cabinet physical size by up to 57% Safe: Always correct and optimal short-circuit coordination as standard. Mirror-function auxiliary contacts. Intelligent: Expandable monitoring features Applications: - The TeSys U motor starter, integrating all functions in one device, is designed for direct and reversing motor outputs. - Thanks to its compact structure and excellent flexibility, it is well suited for all types of machinery. - Intelligence and connectivity to multiple bus communications, high breaking capacity, and full short-circuit coordination make it highly suitable for numerous industrial control applications. This product description is an automated translation of the original Finnish description.
