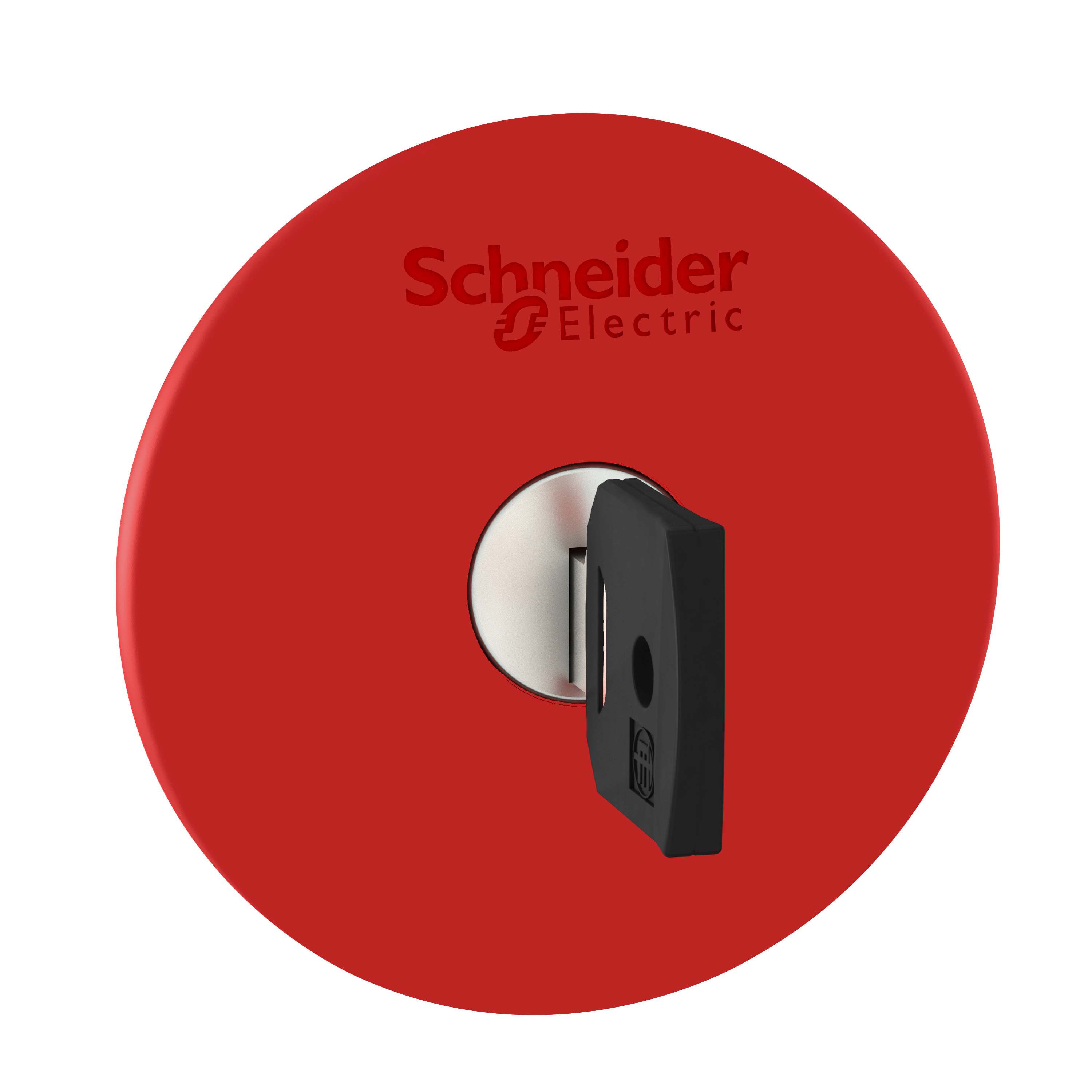

MUSHROOM HEAD HARMONY ZB5AS964
Product code
2318324
Harmony XB5
Round and square plastic collars with 22 mm diameter, plastic pushbuttons, switches, indicator lights
Industrial products combine ease of installation and adaptability.
Ideal for applications requiring resistance to chemicals and/or double electrical insulation.
Unmatched range
- Pushbuttons, spring return
- Multi-function pushbuttons, spring return
- Mushroom pushbuttons for emergency stop or emergency shutdown, by rotation, key or pull release, Ø 30, 40, 60 mm
- Selector switches and key switches
- Indicator lights (LEDs, neon and incandescent lamps)
- Combined functions: contact + signaling
- Complete products or user-assembled configurations
- Connections: screw terminals, plug-in connectors, Faston connectors, spring terminals
- Certified and approved on all continents: EN/IEC, UL, CSA, CCC, Gost, JIS, NEMA
- Enclosure up to IP66, IP69K
- Special contacts for small or large currents
- Vibration-resistant mounting screws (no post-tightening required)
Fast and easy installation
- One installer is sufficient
- Mounting with a single nut (no loosening)
- Common accessories
Applications
- Industry: machine builders, chemical and paper industries, marine
- Services and infrastructure: power distribution panel manufacturers, food and beverage, car washes This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Front element for mushroom push-button (EC001038)
Colour buttonRed
Construction type lensRound
Diameter cap60 mm
Hole diameter22.5 mm
Degree of protection (IP)IP66
Degree of protection (NEMA)Other
Type of buttonHigh
Suitable for lightingno
With lightingno
Switching function latchingyes
Spring-returnno
With front ringyes
Material front ringPlastic
Colour front ringBlack
Suitable for emergency stopyes
Product codes
SAPCQY240
STK2318324
PLC2318324
GTIN/EAN3389110135183
Manufacturer part numberZB5AS964
Vendor material number2318324
Basic information
Package measurements (L x W x H)93.98 x 73.66 x 73.66 mm
Package volume0.51 l
Package weight0.082 kg
Base uniteach
Package units1 / 5 / 40
Package contents–
UNSPSC39121534
BrandSCHNEIDER ELECTRIC
VendorSCHNEIDER ELECTRIC FINLAND OY
