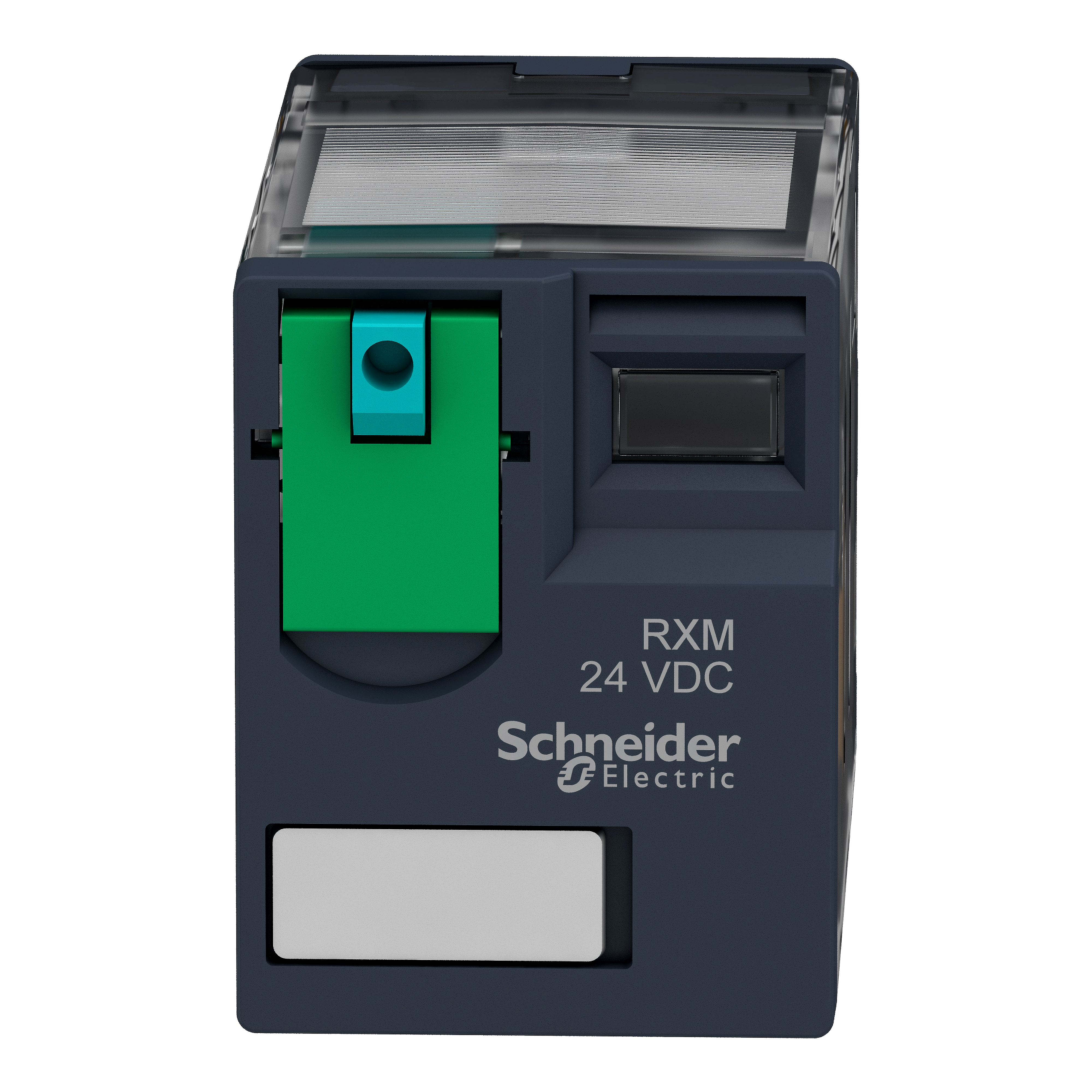

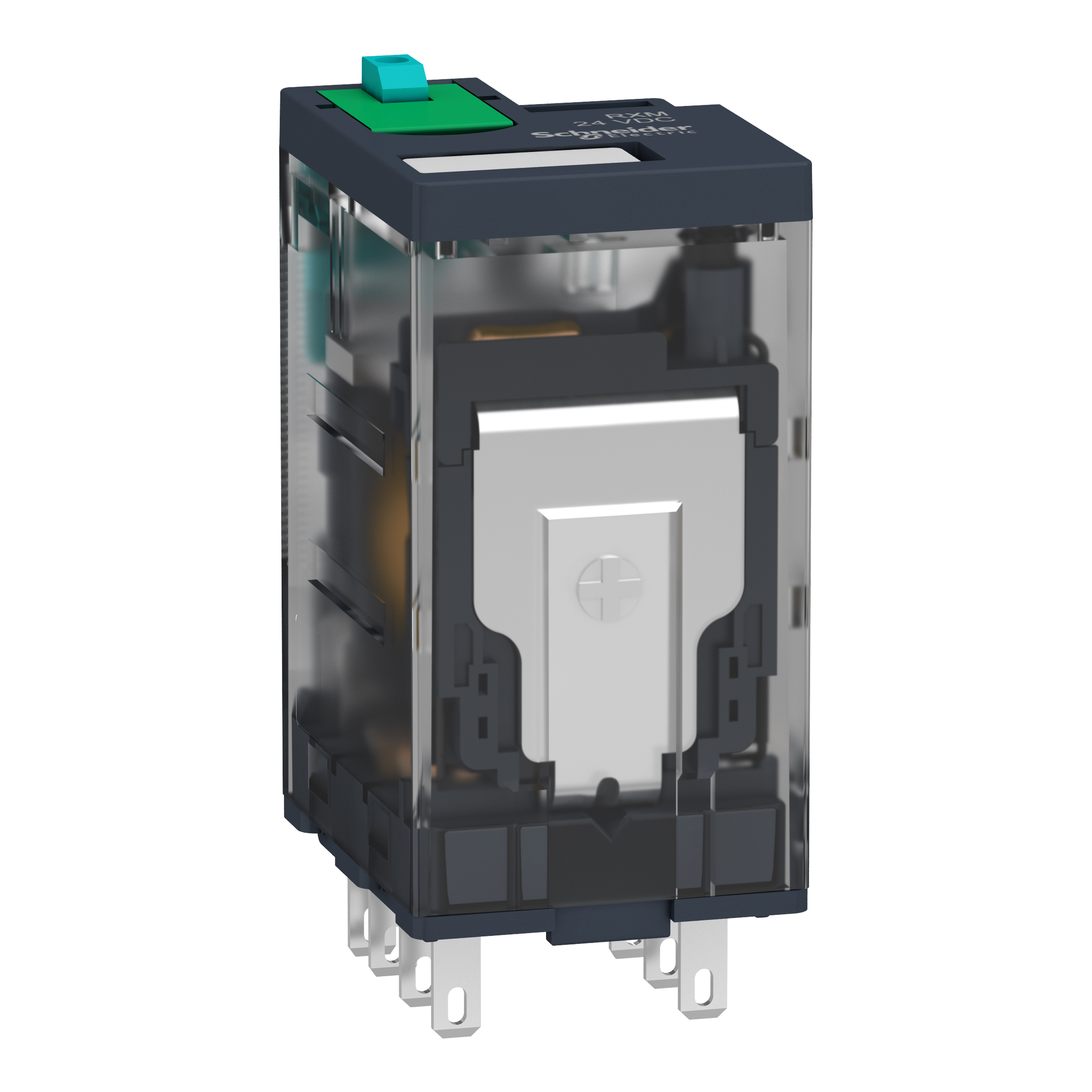

PLUG-IN RELAY RXM 48VDC 2C/O 12A

Zelio relays provide a reliable solution for various control and switching requirements. The range includes both electromechanical relays and solid-state relays.

Electromechanical relays

Zelio relay RSL

• 1 C/O contact / 6 A
• only 6 mm wide

Zelio relay RSB

• 1 or 2 C/O contacts / 8-12-16 A
• compact size

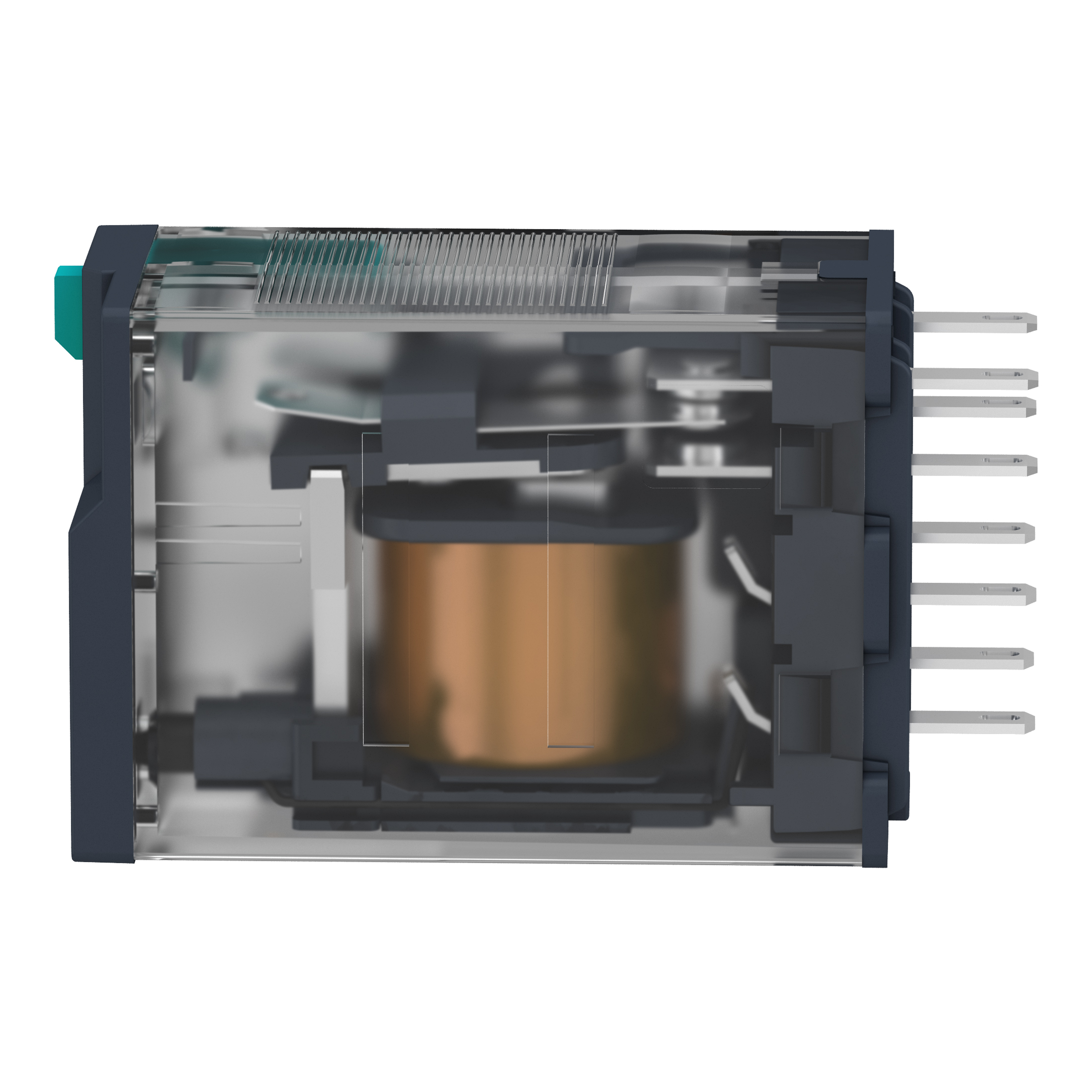

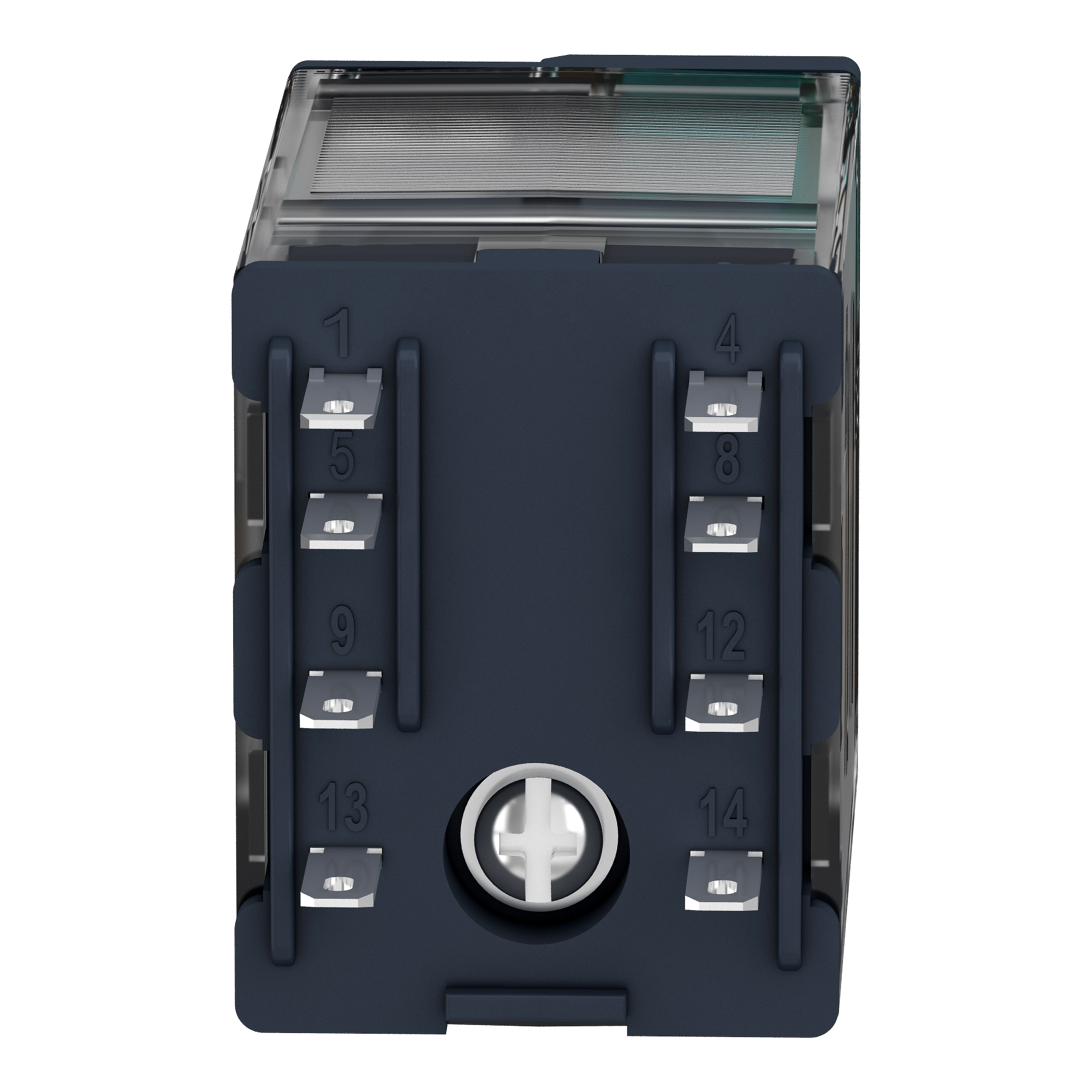

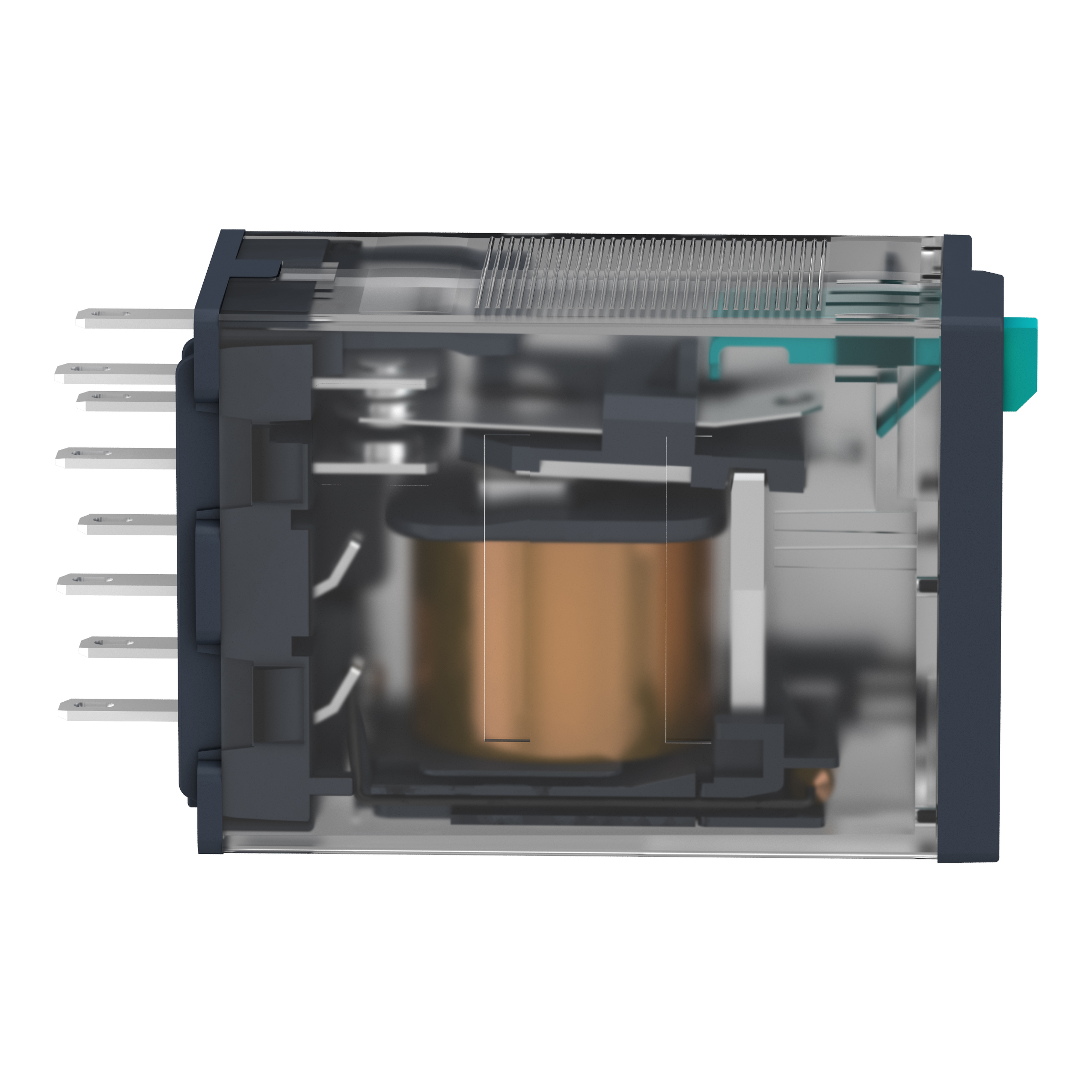

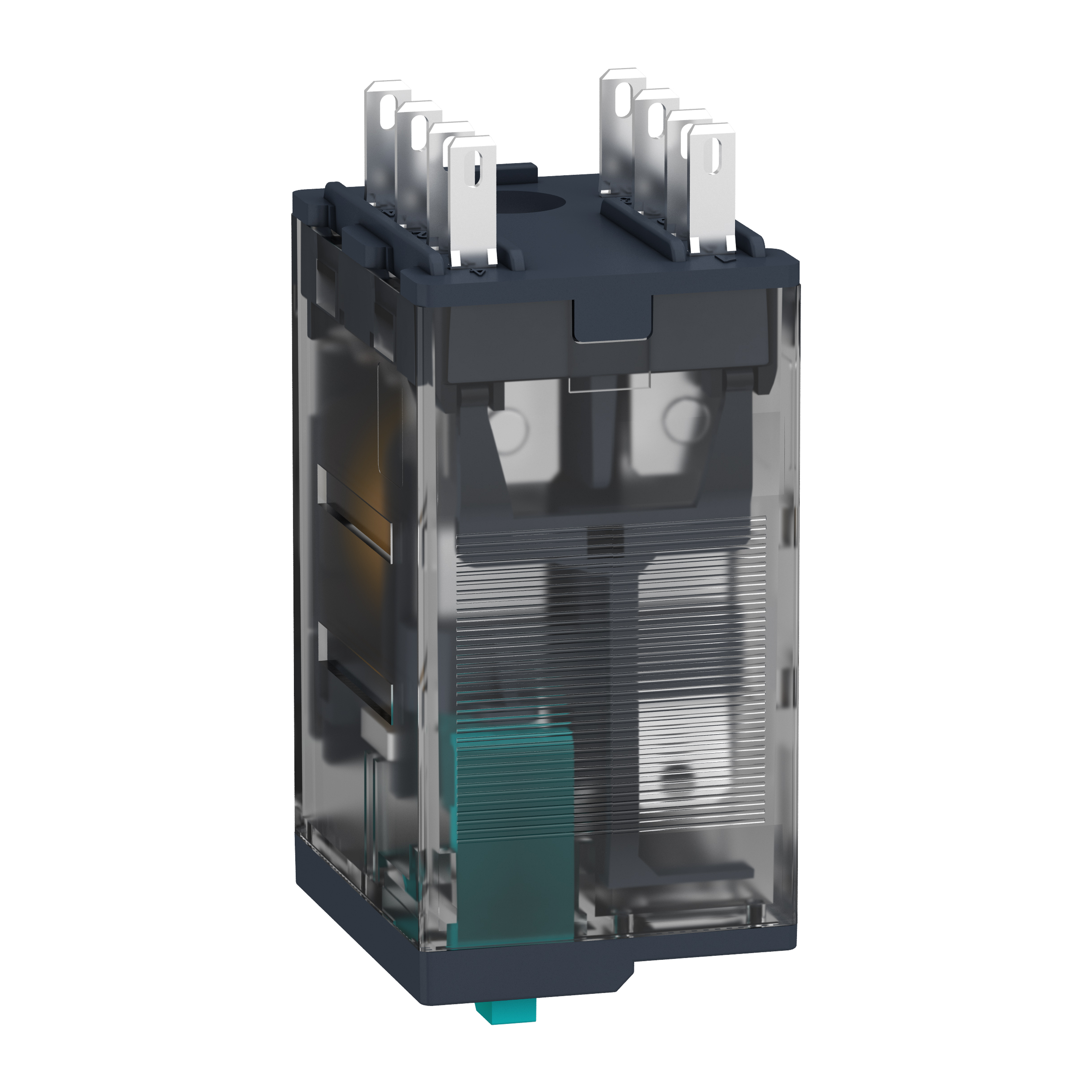

Zelio relay RXM

• 2, 3 or 4 C/O contacts / 6-10-12 A
• optional terminal arrangement (mixed or separate)

Zelio relay RUM

• 2 or 3 C/O contacts / 10 A
• optional plug types (Cylinder/Faston)

Zelio relay RPM/RPF

• RPM: 1, 2, 3 or 4 C/O contacts / 15 A
• RPF: 2 C/O contacts or 2 NO contacts / 30 A
• for high currents

Solid-state relays

Zelio relay SSR

• 1 NO / 10-125 A
• infinite operational life

Advantages of electromechanical relays

• wide range – up to 4 contact configurations
• easy installation – socket-type with standard pin arrangement (plug-in)
• easy maintenance – test button and lockable cover for testing relay operation
• matching of input and output current and voltage

Advantages of solid-state relays

• long operational life
• high switching frequency and current (up to 125 A)
• designed for packaging and textile machines
• no interference, suitable for building and hospital applications
• not sensitive to vibration

Applications

• industrial machines
• machinery and construction or hospital equipment
• packaging machines
• textile machines
• HVAC
• simple wired logic control systems
• additional feature for industrial logic control (PLC)

This product description is an automated translation of the original Finnish description.
