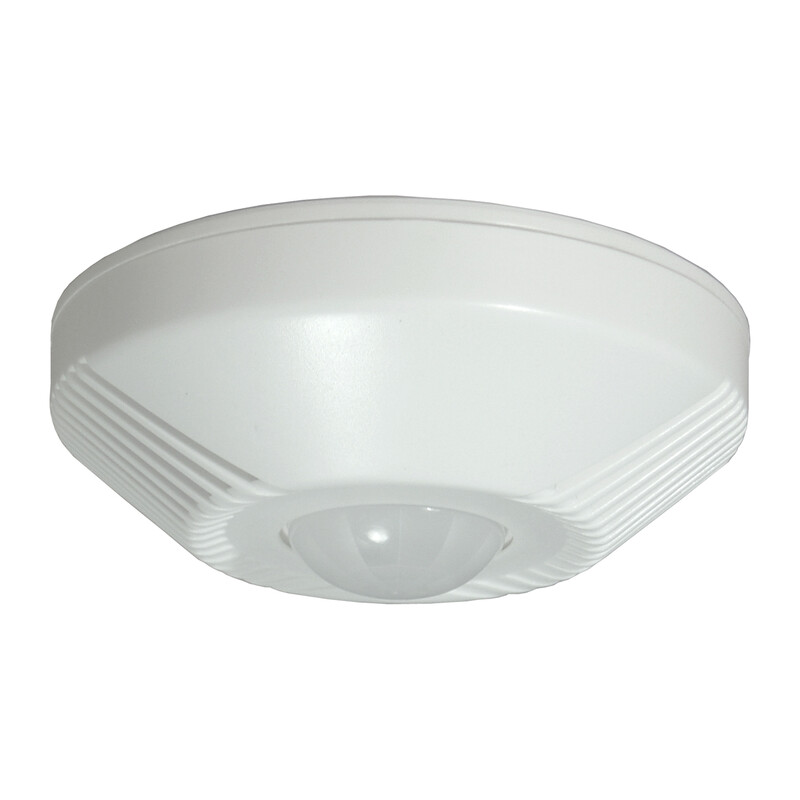

PRESENCE INDICATOR ARGUS DUAL TECH 1 CH
Product code
2609146
ARGUS motion detectors
- Power supply: 230 VAC, +/-10 %, 50 Hz
- Light sensor: continuously adjustable 3 - 1000 lux
- Time: 1 second ... approximately 8 minutes
- 360-degree anti-tamper protection radius approximately 4 m
- Can be mounted on wall or ceiling without additional accessories
- Enclosure rating: IP55
- Option to cover lens areas
In addition to providing adequate lighting in areas far from light control switches, they illuminate uninvited guests—whether they want it or not.
Besides being innovative solutions for smart buildings, ARGUS motion detectors have been designed with meticulous attention to detail:
- Large switching capacity
- Precise special lens
- Areas can be covered with attachable segments
- Fully adjustable spherical lens facilitates mounting on wall or ceiling
- Anti-tamper protection quickly turns the light on when leaving the building
- Surface-mounted
Advanced detection technology in angles of 110 to 360 degrees and easy installation make surface-mounted ARGUS motion detectors essential for general surveillance.
They are ideal for example in:
- Building entrances
- Warehouses
- Halls
- Garages
- Entrances and vestibules This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Movement sensor/presence detector complete (EC000133)
ModelPresence detector
Movement sensor/presence detector technologyPassive infrared
Constant light controlno
HVAC-controlno
Forced switch onyes
Forced switch offyes
Animal zoneno
Creep-under protectionyes
Background monitoringno
Networkableno
Scan angle360 °
Optimum mounting height2.5 m
Staircase light controlleryes
Bridging switchno
Max. reach sideways10 m
Product codes
SAPCFL604
STK2609146
PLC2609146
GTIN/EAN3606480995521
Manufacturer part numberCCT551011
Vendor material number2609146
Basic information
Package measurements (L x W x H)177 x 117 x 132 mm
Package volume2.734 l
Package weight0.462 kg
Base uniteach
Package units1 / 8 / 160
Package contents–
UNSPSC46171608
BrandSCHNEIDER ELECTRIC
VendorSCHNEIDER ELECTRIC ASENNUSKALUST
