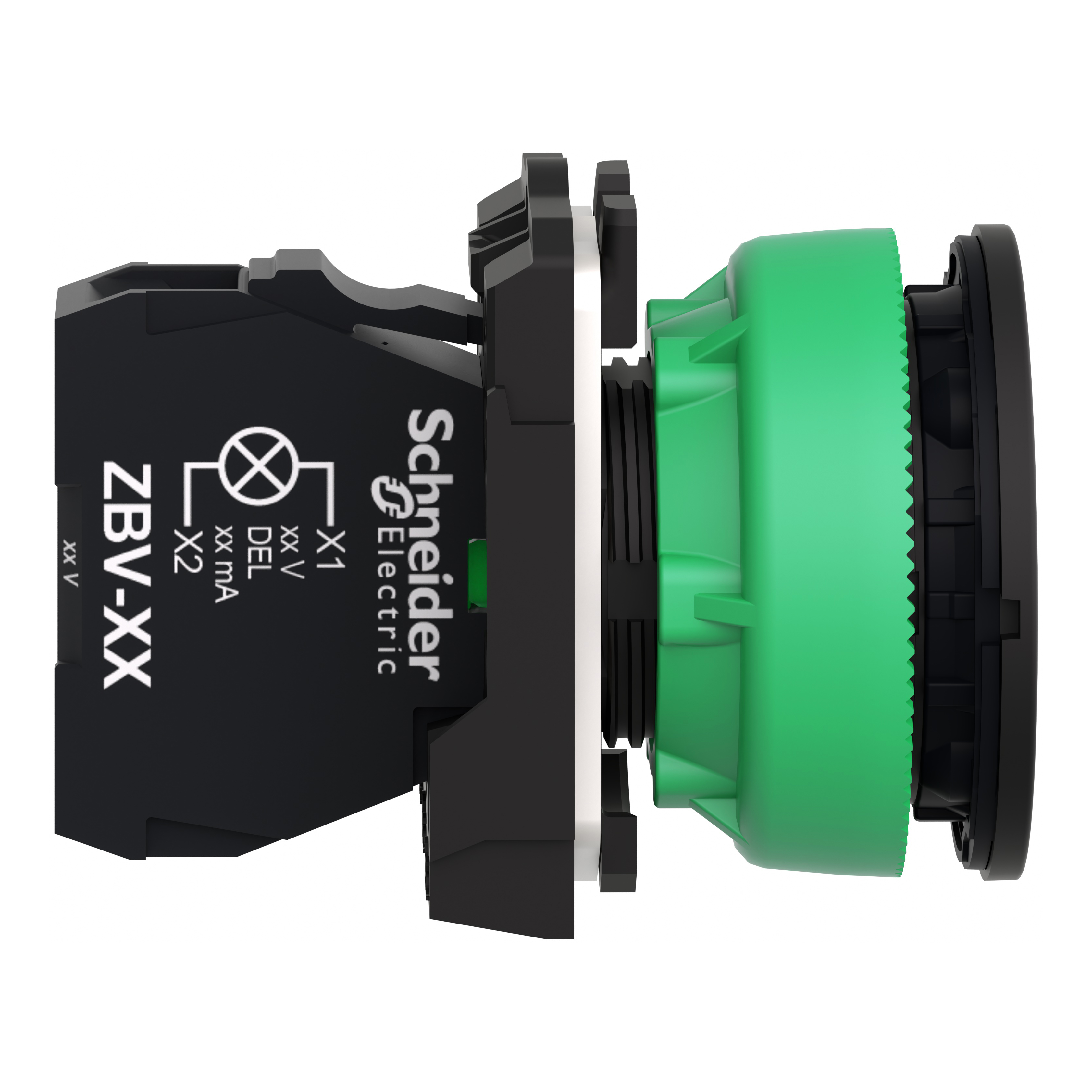

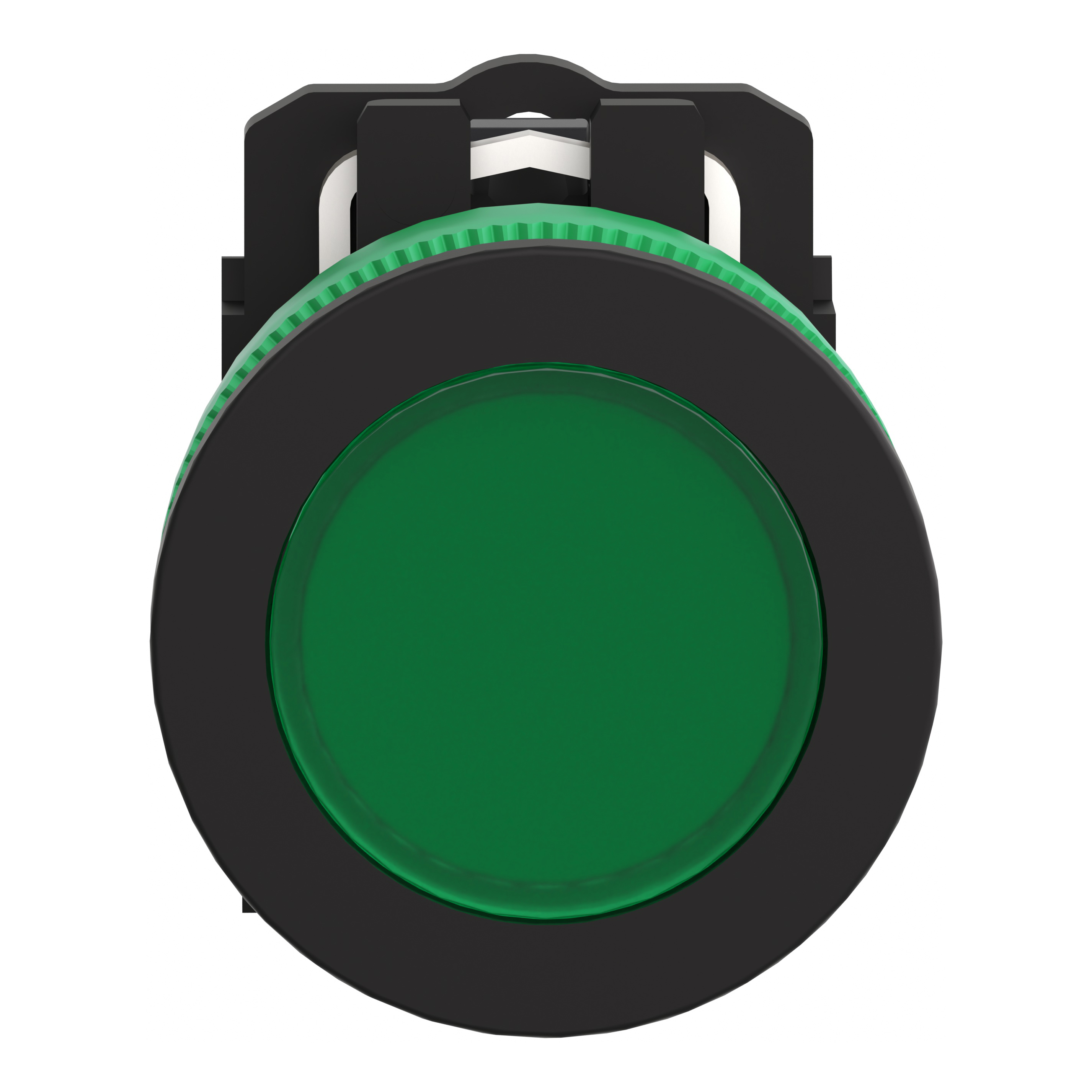

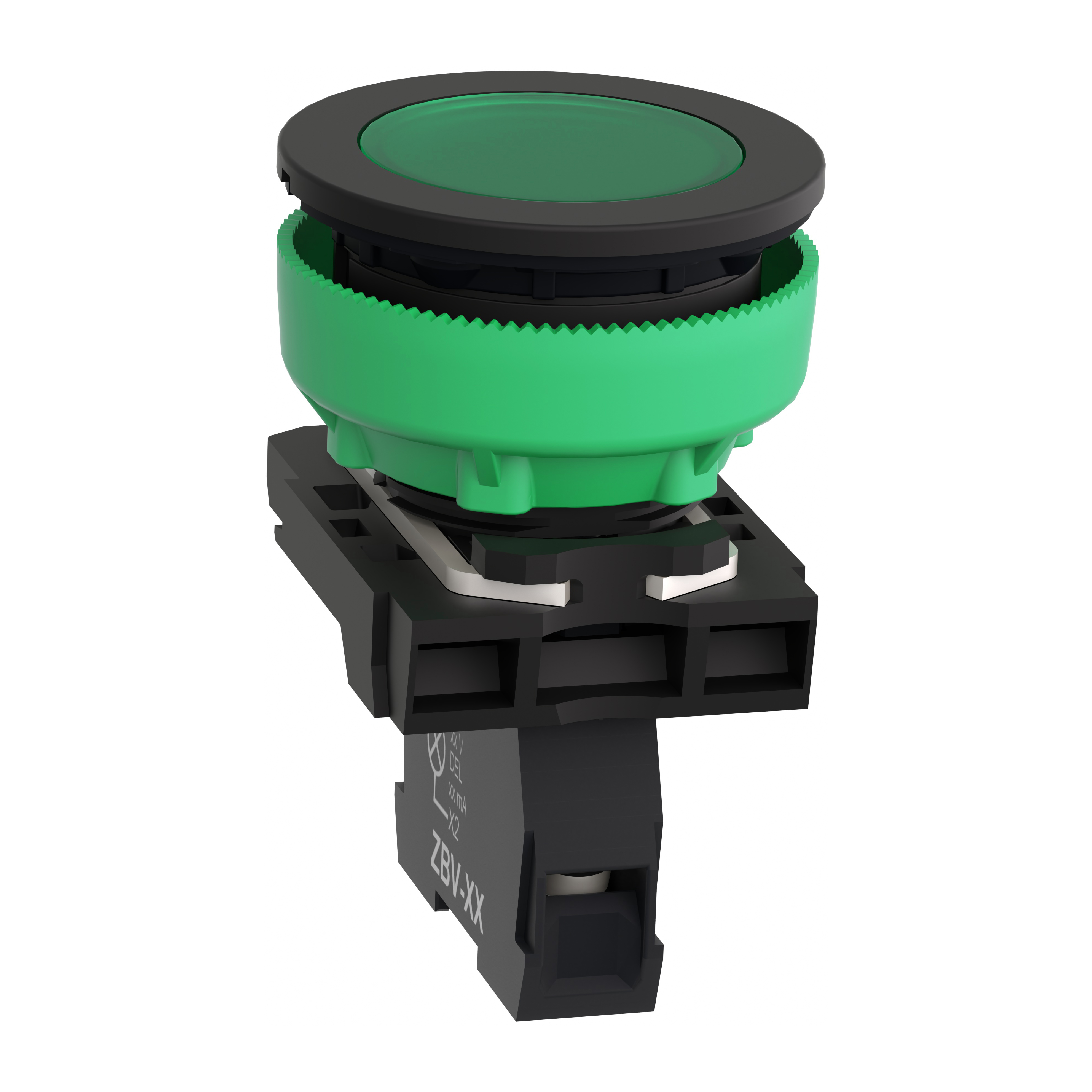

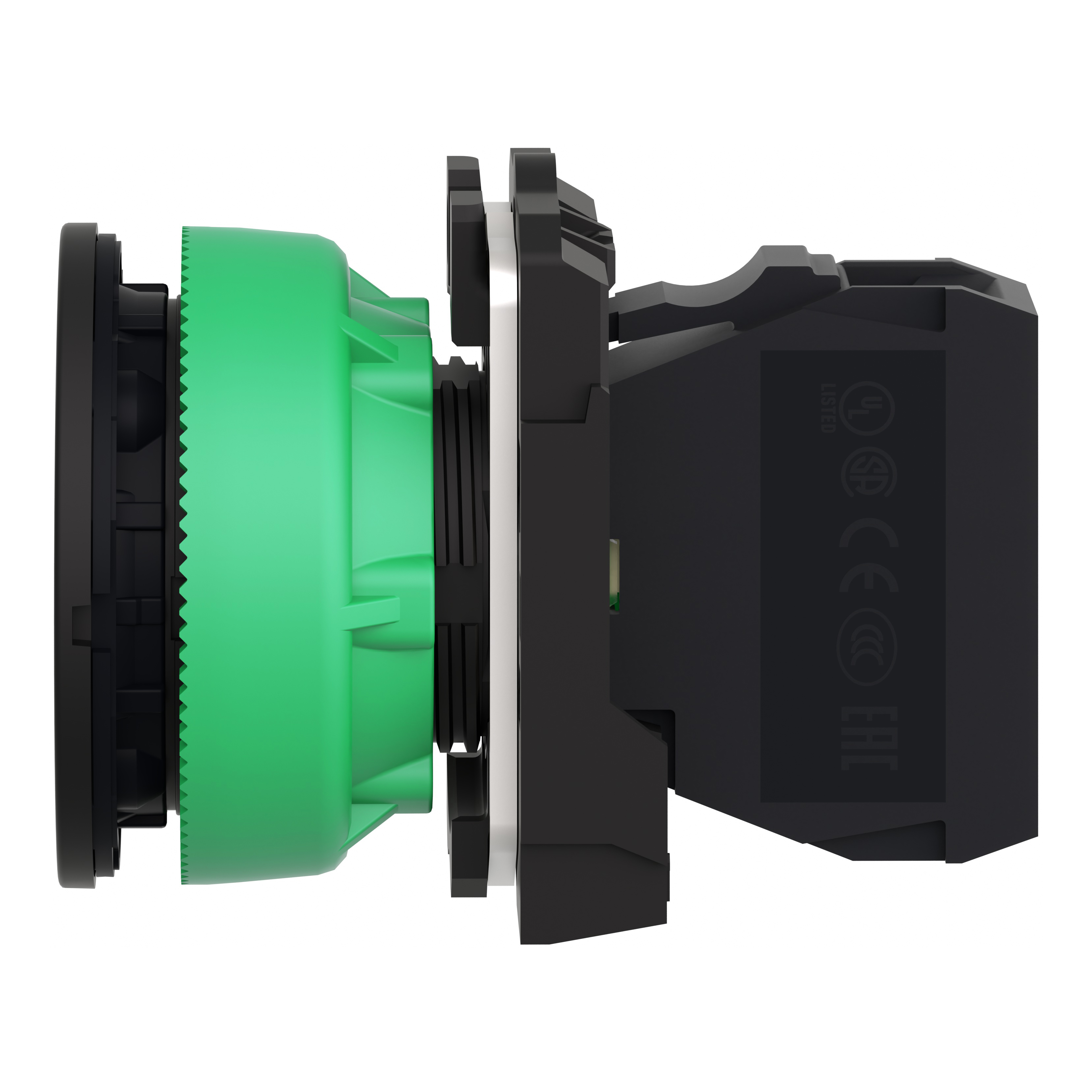

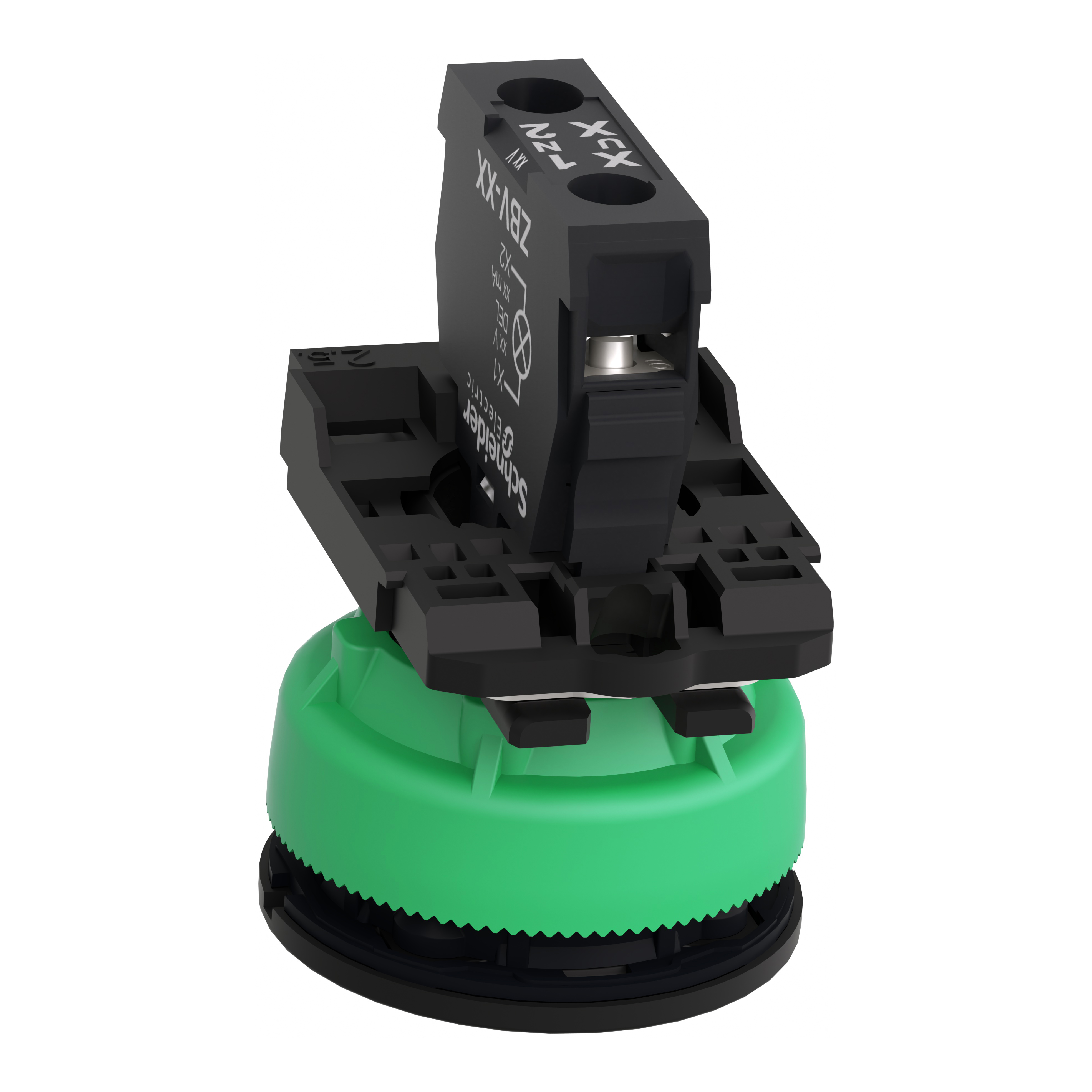

PUSHBUTTON ACTUATOR HARMONY XB5FVG3
Product code
2363127
Buttons, switches, and indicator lights equipped with 22 mm round and square plastic collars. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Indicator light complete (EC000272)
Number of indicator lights1
Colour lensGreen
Type of lamp socketLED
With light sourceyes
Rated operating voltage Ue110-120 V
Voltage typeAC/DC
Type of electric connectionScrew connection
Construction type lensRound
Type of lensFlat
Hole diameter30.5 mm
Width opening0 mm
Height opening0 mm
With front ringyes
Material front ringPlastic
Colour front ringBlack
Product codes
SAPCQB630
STK2363127
PLC2363127
GTIN/EAN3606481360915
Manufacturer part numberXB5FVG3
Vendor material number2363127
Basic information
Package measurements (L x W x H)86 x 53 x 43 mm
Package volume0.196 l
Package weight0.042 kg
Base uniteach
Package units1
Package contents–
UNSPSC39121534
BrandSCHNEIDER ELECTRIC
VendorSCHNEIDER ELECTRIC FINLAND OY
