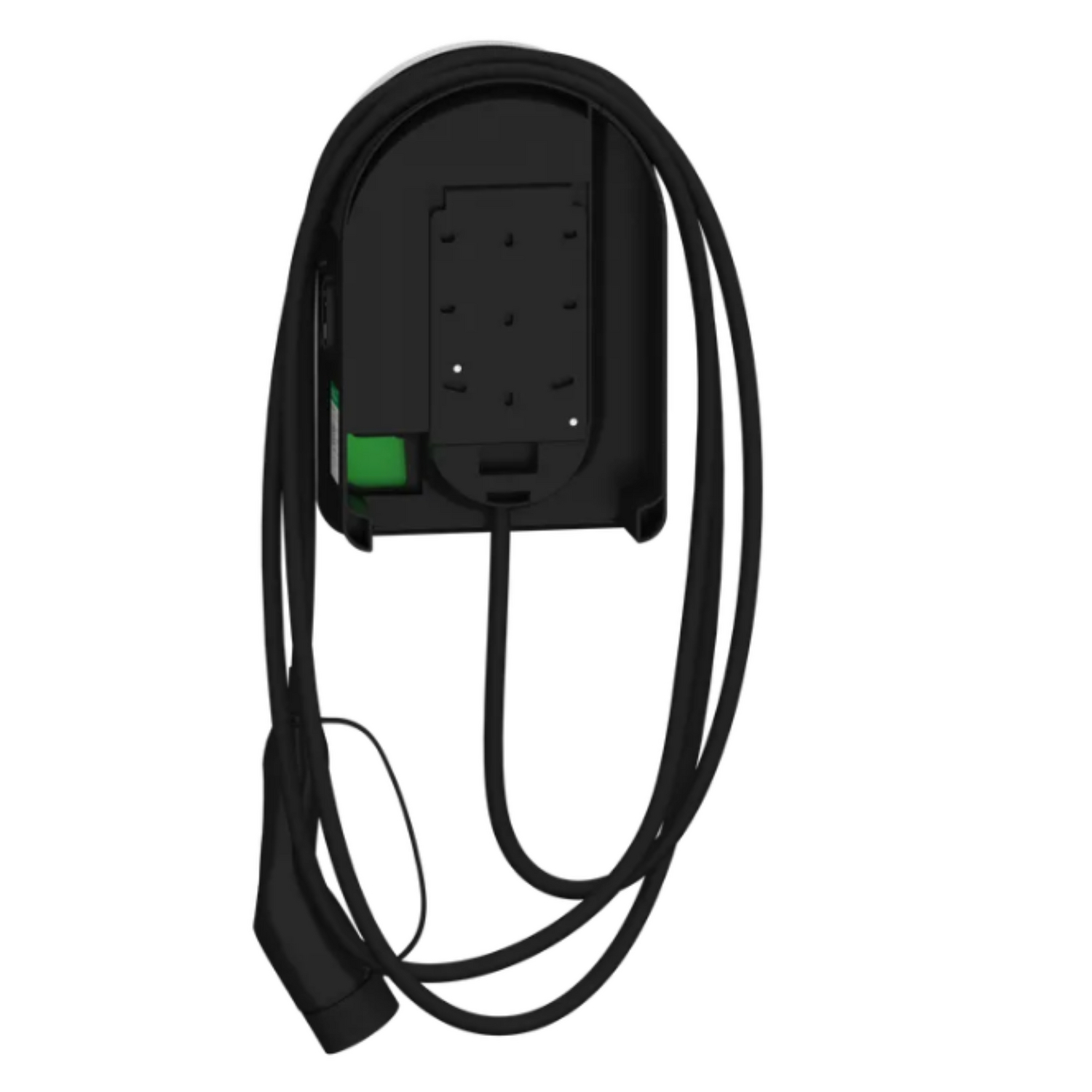

RECHARGING STATION EVLINK SCHNEIDER CHARGE 11KW T2 CABLE

Schneider Charge is a wall-mounted charging station for all electric vehicles compliant with the IEC61851-1 standard. The IP protection class is IP55. The impact resistance class is IK10. The operating temperature range is between -30°C and 55°C. The charging station features a fixed 5 m charging cable with a T2 plug at the end. The rated output power of the charging station is 11 kW. It is three-phase (3P+N). The rated charging current is 16 A at frequencies below 400 VAC 50 Hz/60 Hz. It can be used with TN-S, TT, or IT grounding systems. The charging station is easy to install (no special tools required). It is recommended for private use in single-family homes, mounted in a garage or on an exterior wall. Dimensions: (L) 244 mm x (W) 352 mm x (D) 107 mm. The weight of the charging station is 5.1 kg (without cable). Its color is white (RAL 9003) and green. It is equipped with a built-in protection device against DC fault currents (RDC-DD; Residual Direct Current Detecting Device). The charging station does not have user authentication (RFID/NFC reader) to start charging. The LED light changes color between red, green, and blue to indicate the charging status directly on the charger. An optional accessory, Load Management - Peak Control, can be added to the charging station to adjust in real time the maximum power allocated to the electric vehicle based on the energy consumption of other loads in the home. The charging station can be connected to the Wiser Home smart home system and thus controlled remotely via a mobile application, enabling easy start, monitoring, and control. The OCPP 1.6 communication protocol can be used to connect to third-party cloud services or charging applications. It can also be connected to an internet home router via Wi-Fi or RJ45 Ethernet cable. This product description is an automated translation of the original Finnish description.
