RECHARGING STATION PRO DC 120 KW DC, 2X CCS2

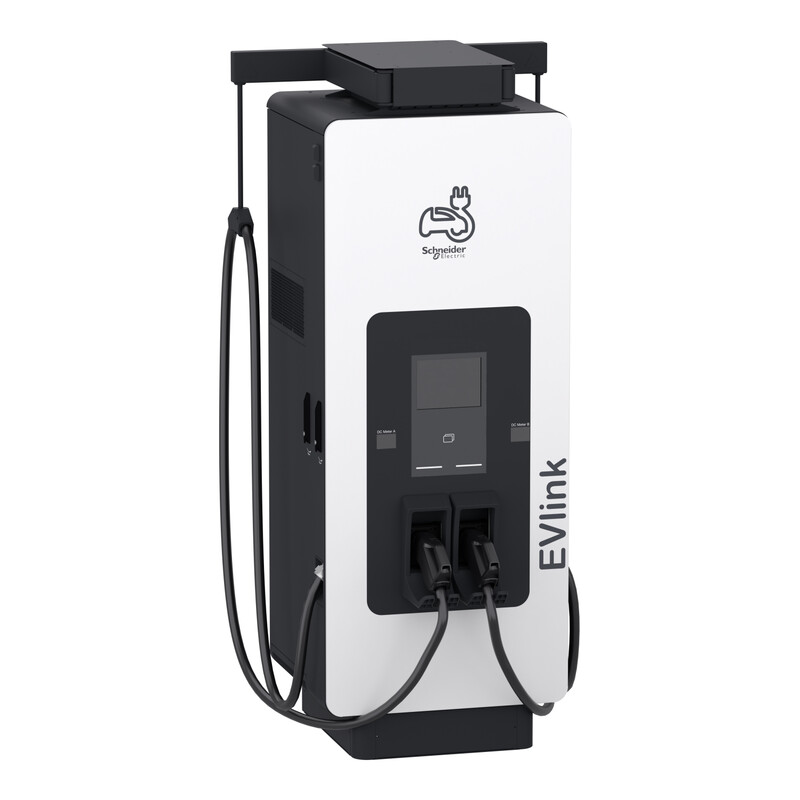

This EVlink Pro DC product is a fast charging station compatible with all electric vehicles that meet IEC61851-1 ed.3 and IEC61851-23 standards. This charging station is designed for floor mounting. The protection class is IP55. Impact resistance class is IK10 and for the touch screen IK08. Operating temperature range is between -30°C and 50°C, and power decreases above 50°C. The device includes a 5-meter charging cable with two CCS2 charging guns at the end, and the cable is equipped with cable management. The rated power is 120 kW, with the possibility to expand up to 150 kW or 180 kW. The charger is three-phase (L1+L2+L3+N+PE). Nominal current is 193A from 380VAC to 415VAC +/- 10%, with a frequency of 50 or 60 Hz. It can be connected to TN-S / TNC-S or TT grounding systems. It is also compatible with IT systems using an additional isolation transformer in the power source. Due to the device's weight, it is recommended to use lifting equipment for moving the charging station. The charging station can be commissioned via a computer connected to a network server. Authorization for charging can be verified using RFID or NFC tags, QR code scanning, or the vehicle's MAC address. The charging station includes a touch screen that allows end users to select their desired charging point and monitor its charging status. An emergency stop button also enables rapid shutdown of charging if needed. The charging station can also be remotely controlled from a backend system. The display provides information on the vehicle's charging status. A multi-color LED also indicates the charging status and the charging station's status. The charging station features an RJ45 Ethernet port for LAN connectivity. It also includes Wi-Fi and 4G modem connectivity. The charging station can be managed independently or in a grouped architecture using a backend application for energy management and/or user authentication, billing. Parameters are set via the integrated network server within the charging station. The OCPP 1.6 communication protocol is used to establish connection with the backend system. Available features include authentication and charging control, detailed charging information, troubleshooting capabilities, and load management. This product description is an automated translation of the original Finnish description.
