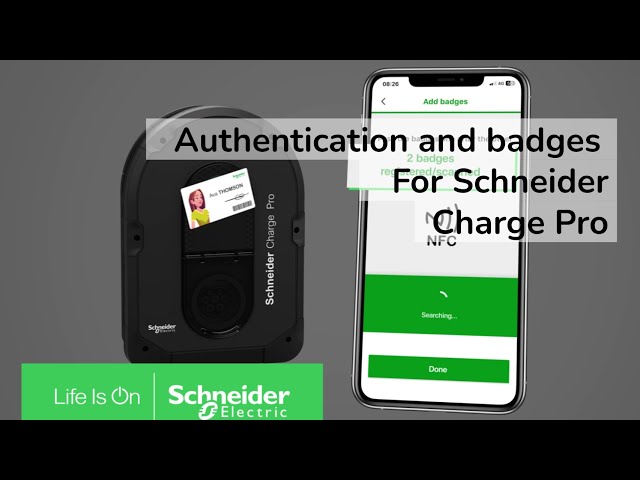

RECHARGING STATION SCHNEIDER CHARGE PRO 22KW ATT CABLE MID

Schneider Charge Pro is a wall-mounted charging station for all electric vehicles compliant with the IEC61851-1 standard. It can be installed indoors, outdoors, or on a pedestal. The IP protection class is IP55. The impact resistance class is IK10. The operating temperature range is -30 °C to 50 °C. The charging station features a fixed 7-meter cable with a T2 plug at the end, attached to the lower part of the charging station. The nominal output power depends on the installation method. It is 7.4 kW when supplied single-phase, with a nominal charging current of 32 A at voltages below 230 V (220 V - 240 V) at 50/60 Hz frequency. It is also available as 11 kW or 22 kW in three-phase mode when supplied with a nominal charging current of 16 A or 32 A at 400 V (380 V - 415 V) at 50/60 Hz frequency. It can be used in TN-S, TN-C, TT, or IT 230 grounding systems. The charging station is easy to install and commission. It is recommended for both housing companies and fleet operators. Dimensions are (W) 292 mm x (H) 418 mm x (D) 119 mm. Its product weight is 7 kg. Its color is black (RAL 9005). It includes a built-in DC fault current detection of 6 mA (RDC-DD). It also comes with a Wi-Fi module, a 4G modem, and two Ethernet ports. During commissioning with the eSetup app, users can configure whether user authentication is disabled or if authentication is performed via an RFID tag to start charging. A white side button activates Wi-Fi Direct connection, which is then used to establish a connection to the eSetup app for commissioning. The charging station has an LED light that changes color between red, green, blue, white, and orange to indicate the station's status. The OCPP 1.6J communication protocol can be used to connect to a charging operator's monitoring system or a third-party cloud. It can also be connected to an internet router via Wi-Fi or an RJ45 Ethernet cable. This product description is an automated translation of the original Finnish description.
