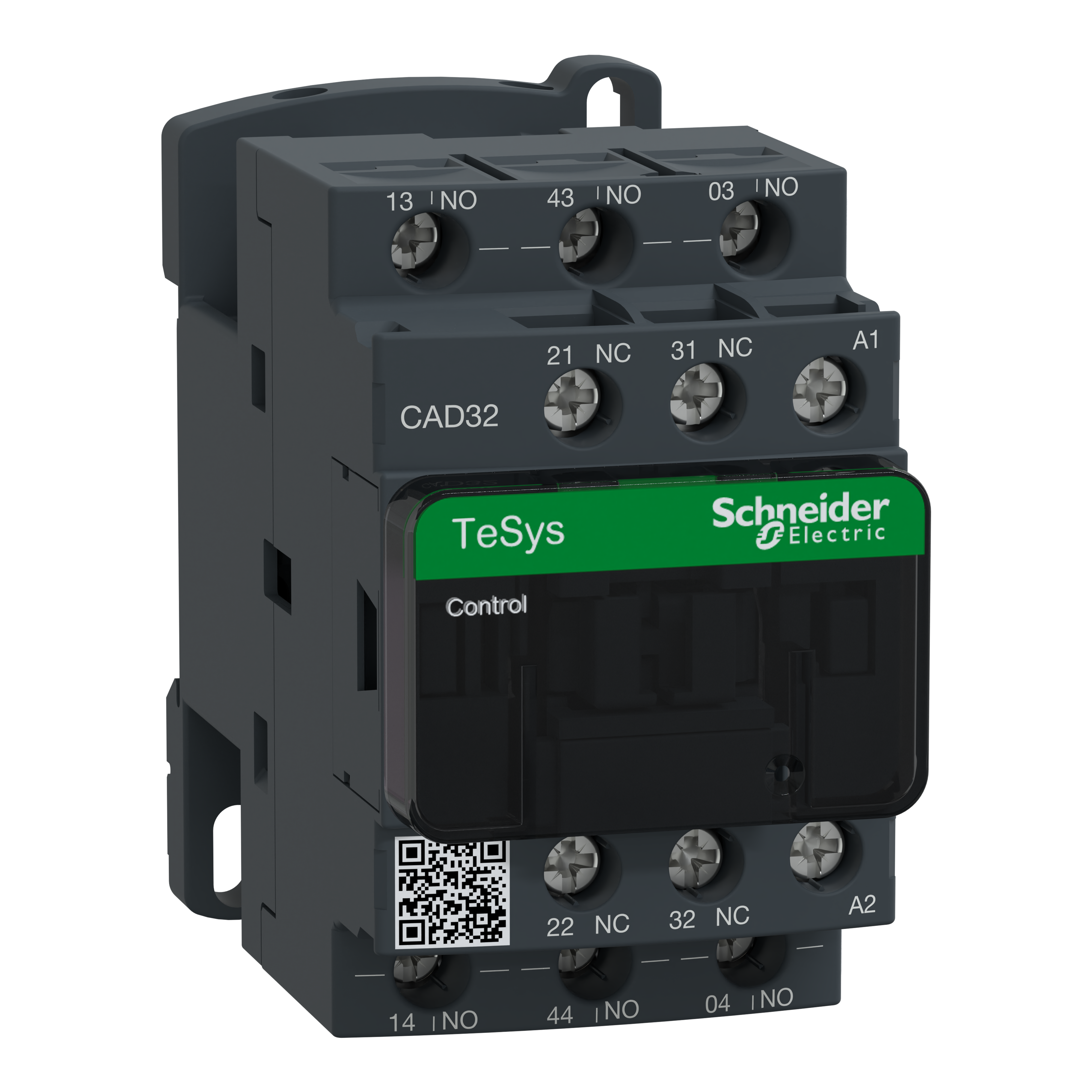

RELAY CAD32FE7 3NC + 2NO 115VAC
Product code
3782050
Auxiliary contactor 3Su + 2Av 115VAC This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Auxiliary contactor, relay (EC000196)
Rated control supply voltage AC 50 Hz115 - 115 V
Rated control supply voltage AC 60 Hz115 - 115 V
Voltage type for actuatingAC
Rated operation current10 A
Rated operation current Ie, 400 V10 A
Mounting methodDIN-rail/screw
With LED indicationno
Suitable for manual operationno
Interfaceno
Number of auxiliary contacts as normally closed contact2
Number of auxiliary contacts as normally open contact3
Number of auxiliary contacts as normally closed contact, delayed switching0
Number of auxiliary contacts as normally open contact, leading0
Number of auxiliary contacts as change-over contact0
Operating voltage AC 50 Hz690-690 V
Product codes
SAPGBI512
STK3782050
PLC3782050
GTIN/EAN3389110401141
Manufacturer part numberCAD32FE7
Vendor material numberCAD32FE7
Basic information
Package measurements (L x W x H)95 x 81 x 55 mm
Package volume0.423 l
Package weight0.358 kg
Base uniteach
Package units1
Package contents1
UNSPSC39121529
BrandSCHNEIDER ELECTRIC
VendorSCHNEIDER ELECTRIC FINLAND OY
Documents (7)
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)1.2403
GWP, uniteach
Source for GWP dataEPD
Documents (1)
Sustainability brochures & documents
Manufacturer
NameSchneider Electric Finland Oy
Websitehttps://www.se.com/fi/fi/
Postal addressSokerilinnantie 11 C, 02600 Espoo, Finland
