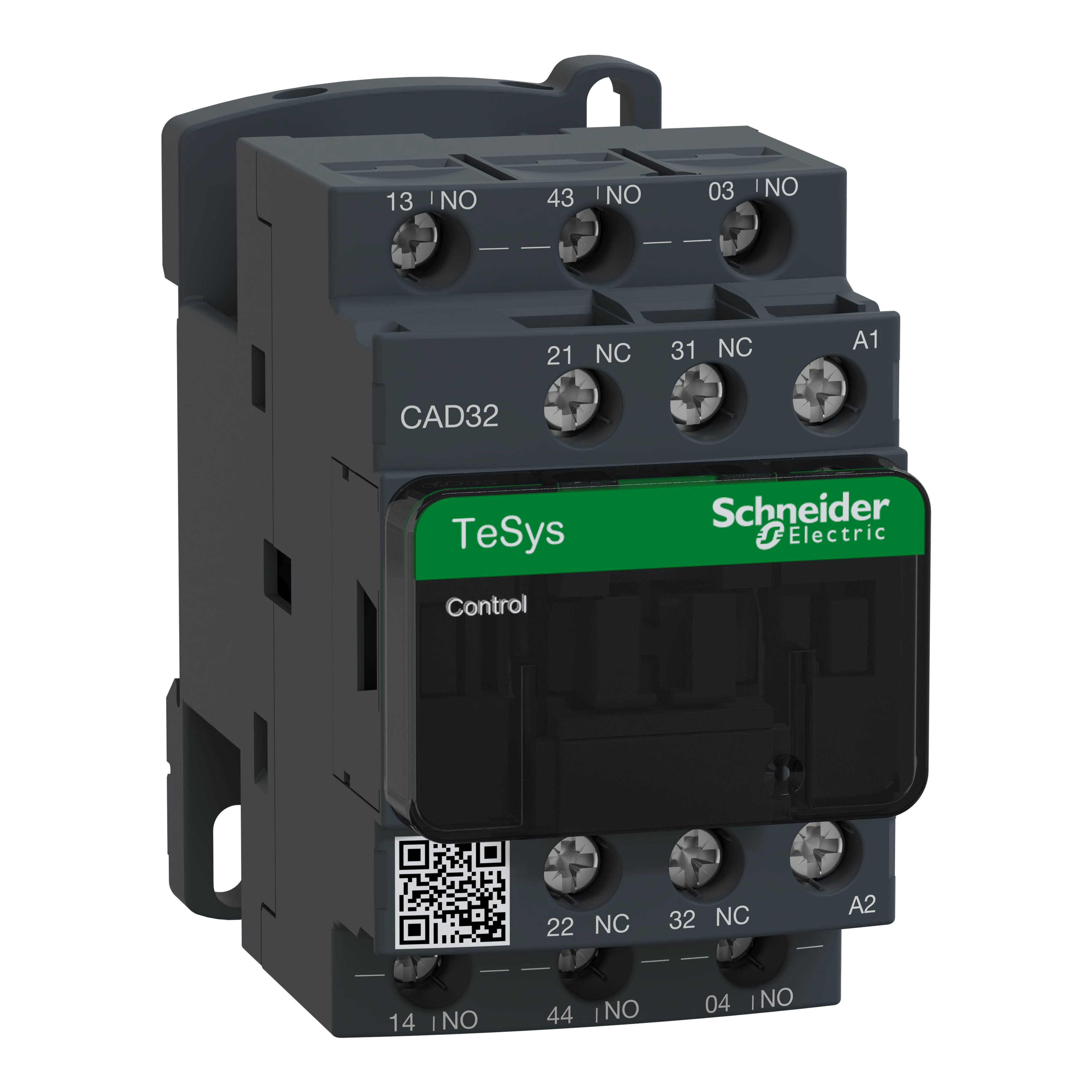

RELAY CAD32L7 3NC + 2NO 200VAC
Product code
3782051
Auxiliary contactor 3Su + 2Av 200VAC This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Auxiliary contactor, relay (EC000196)
Rated control supply voltage AC 50 Hz200 - 200 V
Rated control supply voltage AC 60 Hz200 - 200 V
Voltage type for actuatingAC
Rated operation current10 A
Rated operation current Ie, 400 V10 A
Mounting methodDIN-rail/screw
With LED indicationno
Suitable for manual operationno
Interfaceno
Number of auxiliary contacts as normally closed contact2
Number of auxiliary contacts as normally open contact3
Number of auxiliary contacts as normally closed contact, delayed switching0
Number of auxiliary contacts as normally open contact, leading0
Number of auxiliary contacts as change-over contact0
Operating voltage AC 50 Hz690-690 V
Product codes
SAPDEJ945
STK3782051
PLC3782051
GTIN/EAN3389110401400
Manufacturer part numberCAD32L7
Vendor material numberCAD32L7
Basic information
Package measurements (L x W x H)116.8 x 94 x 55.9 mm
Package volume0.614 l
Package weight0.36 kg
Base uniteach
Package units1
Package contents–
UNSPSC39121529
BrandSCHNEIDER ELECTRIC
VendorSCHNEIDER ELECTRIC FINLAND OY
