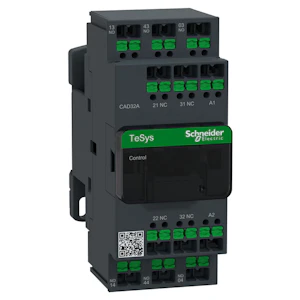

RELAY TESYS 3NO 2NC 3P 12V AC SNAP-IN
Product code
3783050
No product description available.
Product details
Technical specifications
Product class (ETIM)Auxiliary contactor, relay (EC000196)
Rated control supply voltage AC 50 Hz12 - 12 V
Rated control supply voltage AC 60 Hz12 - 12 V
Voltage type for actuatingAC
Rated operation current10 A
Rated operation current Ie, 400 V10 A
Mounting methodOther
With LED indicationno
Suitable for manual operationno
Interfaceno
Number of auxiliary contacts as normally closed contact2
Number of auxiliary contacts as normally open contact3
Number of auxiliary contacts as normally closed contact, delayed switching0
Number of auxiliary contacts as normally open contact, leading0
Number of auxiliary contacts as change-over contact0
Operating voltage AC 50 Hz690 - 690 V
Product codes
SAPDNV522
STK3783050
PLC3783050
GTIN/EAN3606487540984
Manufacturer part numberCAD32AJ7
Vendor material number3783050
Basic information
Package measurements (L x W x H)115 x 105 x 50 mm
Package volume0.604 l
Package weight0.407 kg
Base uniteach
Package units1
Package contents–
UNSPSC39121529
BrandSCHNEIDER ELECTRIC
VendorSCHNEIDER ELECTRIC FINLAND OY
Documents (3)
Brochures & documents
Links
Environment and safety
Manufacturer
NameSchneider Electric Finland Oy
Websitehttps://www.se.com/fi/fi/
Postal addressSokerilinnantie 11 C, 02600 Espoo, Finland
