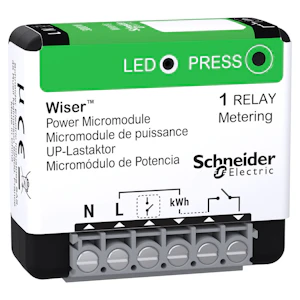

RELAY UNIT WISER 14A ZIGBEE CCTFR6730

Wiser is Schneider Electric's smart home system that brings comfort, security, and energy efficiency to your home—easily and stylishly. It is designed for everyone who wants to control their home intelligently, without complex installations or technical expertise. The Wiser smart home consists of various devices that can be controlled wirelessly. With the Wiser mobile app, you can create convenient scene controls, schedules, or automations. The devices also communicate with each other, allowing home functions to be automated to occur without user intervention. Wiser devices requiring electrical installation can be connected to standard 230V wiring, while battery-powered devices can be installed by the user themselves, making the system easy to expand. Wiser Zigbee devices can be integrated into a Matter smart home, for example with Apple HomeKit or Google Home apps, using the second-generation Wiser Home hub (CCT501801, serial number 2609971). The Wiser CCTFR6730 is a recessed Zigbee micro-module that enables control of electrical loads and measurement of energy consumption as part of Schneider Electric's Wiser smart home system. It is specifically designed for managing electric water heaters and other resistive loads—either manually or automatically using schedules and energy management strategies. The module can be used as part of the load management function in the Wiser Home app. Features

• Rated voltage: 230 V AC, 50Hz
• Switching capacity: 230V AC, 14 A
• Maximum power: 3000W, with integrated neutral detection
• Protection class: IP20
• Operating temperature: -20...35 °C

Loads

• LED: 230V 200W
• Fluorescent lamp: 2200W
• Low-voltage halogen lamps with iron-core transformer: 500VA
• Motors (single-phase) 230VA: 1180VA
• Resistive loads: 3000W
• Inductive loads: 5A, cos φ = 0.6
• Capacitive loads: 10A, 25 μF

The device requires a second-generation hub CCT501801 (serial number 2609971) and the device(s) to be controlled. The device can be connected to Nord Pool's electricity market data. (See your hub's product description.) This product description is an automated translation of the original Finnish description.
