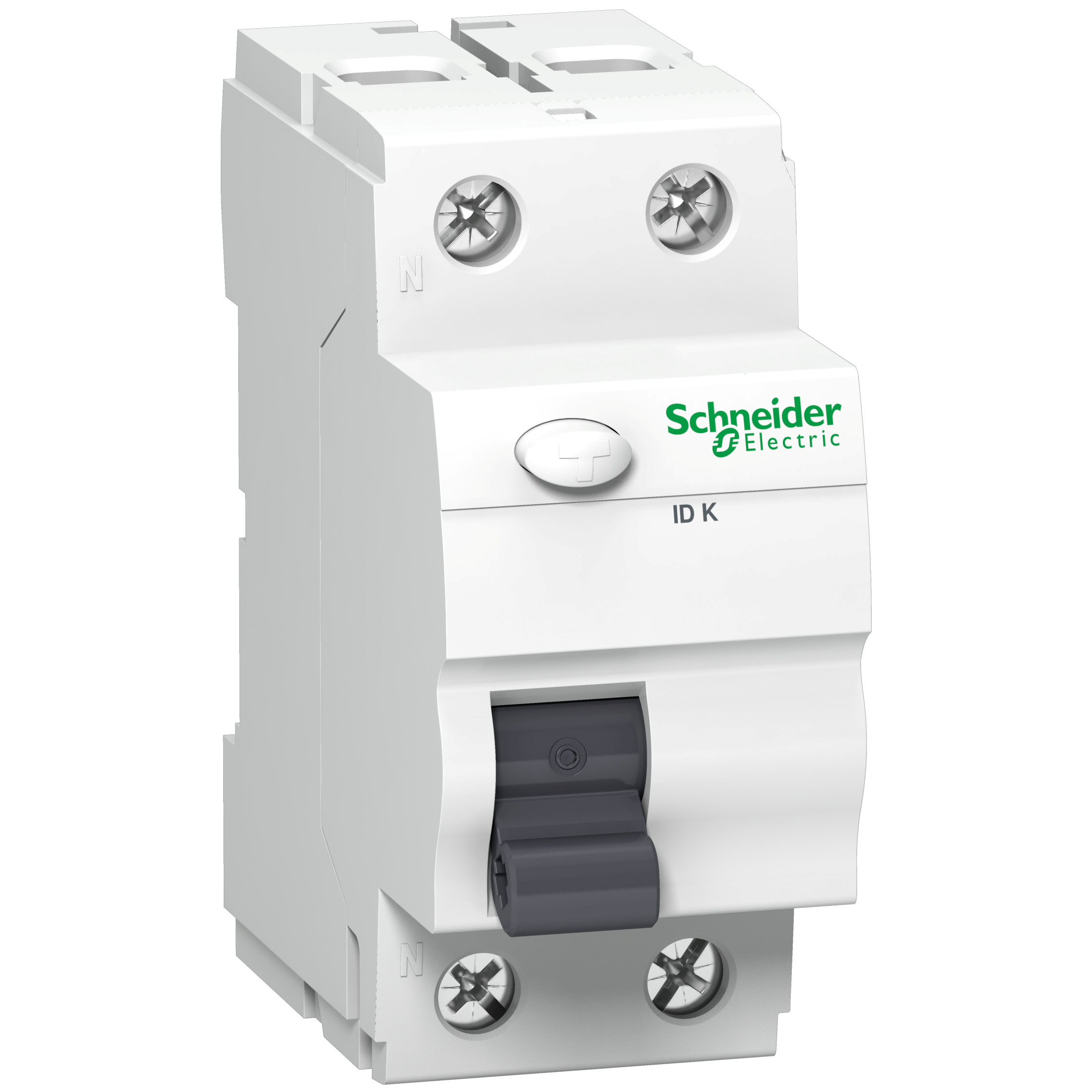

RESIDUAL CURRENT CIRCUIT BREAK ID K 2P 25A 30mA A
Product code
A9Z01225
ID K, earth leakage protection, 2p, 25A, 30mA, A type
No product description available.
Product details
Technical specifications
Product class (ETIM)Residual current circuit breaker (RCCB) (EC000003)
Number of poles2
Rated voltage230 V
Rated current25 A
Rated fault current30 A
Rated insulation voltage Ui440 V
Rated impulse withstand voltage Uimp4 kV
Mounting methodDIN rail
Leakage current typeA
Selective protectionno
Short-time delayed trippingno
Short-circuit breaking capacity (Icw)10 kA
Surge current capacity0.25 kA
With interlocking deviceno
Frequency50/60 Hz
Additional equipment possibleyes
Product codes
SAPCBD118
PLCA9Z01225
GTIN/EAN3606480482755
Manufacturer part numberA9Z01225
Vendor material number3606480482755
Basic information
Package measurements (L x W x H)90 x 40 x 85 mm
Package volume0.306 l
Package weight0.202 kg
Base uniteach
Package units6 / 54
Package contents–
UNSPSC39121603
BrandSCHNEIDER ELECTRIC
VendorSCHNEIDER-RETAIL
