Roll over image to zoom in

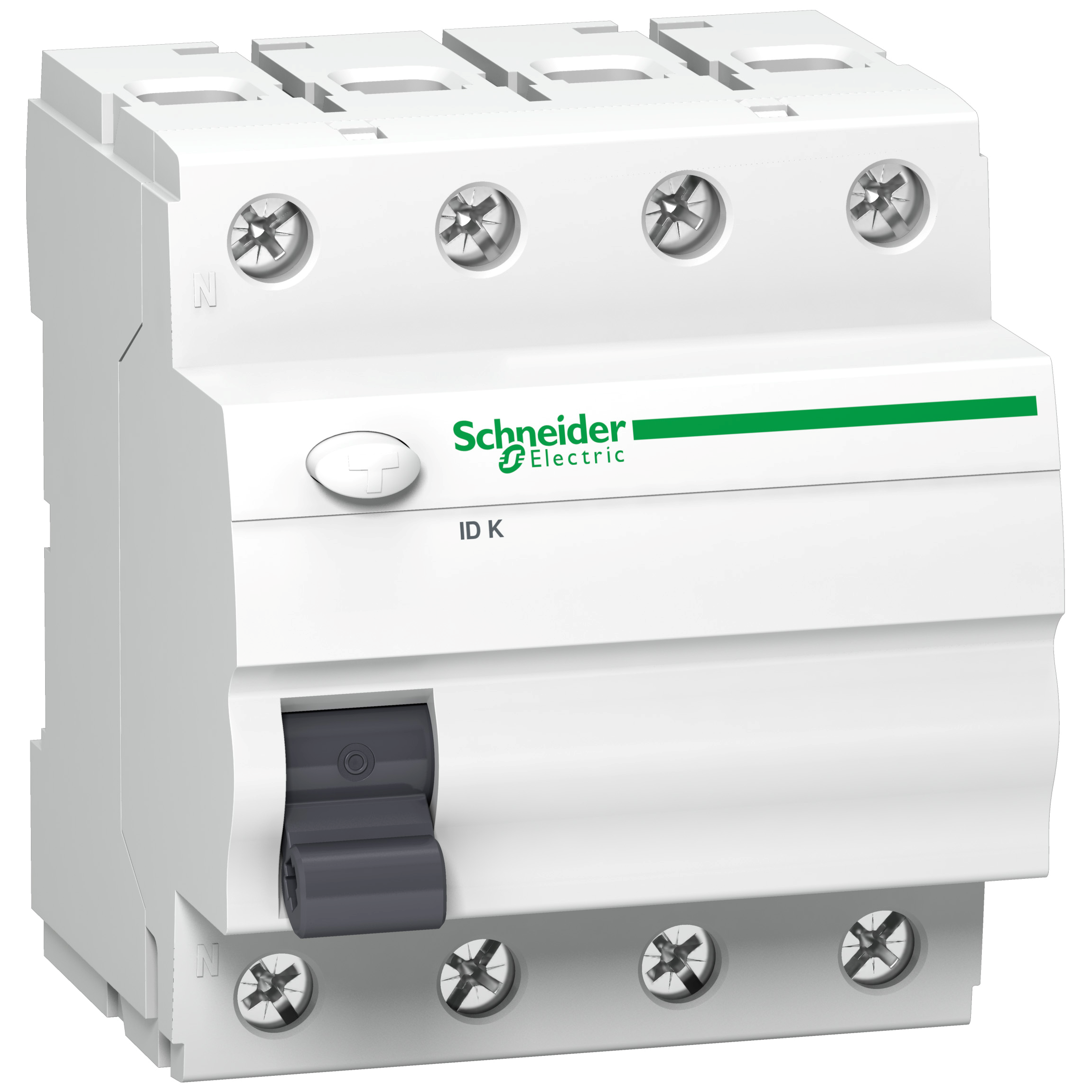

RESIDUAL CURRENT CIRCUIT BREAK ID K 4P 40A 30mA A
Product code
A9Z01440
ID K, earth leakage protection, 4p, 40A, 30mA, A type
No product description available.
Product details
Technical specifications
Product class (ETIM)Residual current circuit breaker (RCCB) (EC000003)
Number of poles4
Rated voltage400 V
Rated current40 A
Rated fault current30 A
Rated insulation voltage Ui440 V
Rated impulse withstand voltage Uimp4 kV
Mounting methodDIN rail
Leakage current typeA
Selective protectionno
Short-time delayed trippingno
Short-circuit breaking capacity (Icw)10 kA
Surge current capacity0.25 kA
With interlocking deviceno
Frequency50/60 Hz
Additional equipment possibleyes
Product codes
SAPCBD079
PLCA9Z01440
GTIN/EAN3606480482786
Manufacturer part numberA9Z01440
Vendor material number3606480482786
Basic information
Package measurements (L x W x H)90 x 85 x 76 mm
Package volume0.581 l
Package weight0.346 kg
Base uniteach
Package units1 / 27
Package contents–
UNSPSC39121603
BrandSCHNEIDER ELECTRIC
VendorSCHNEIDER-RETAIL
