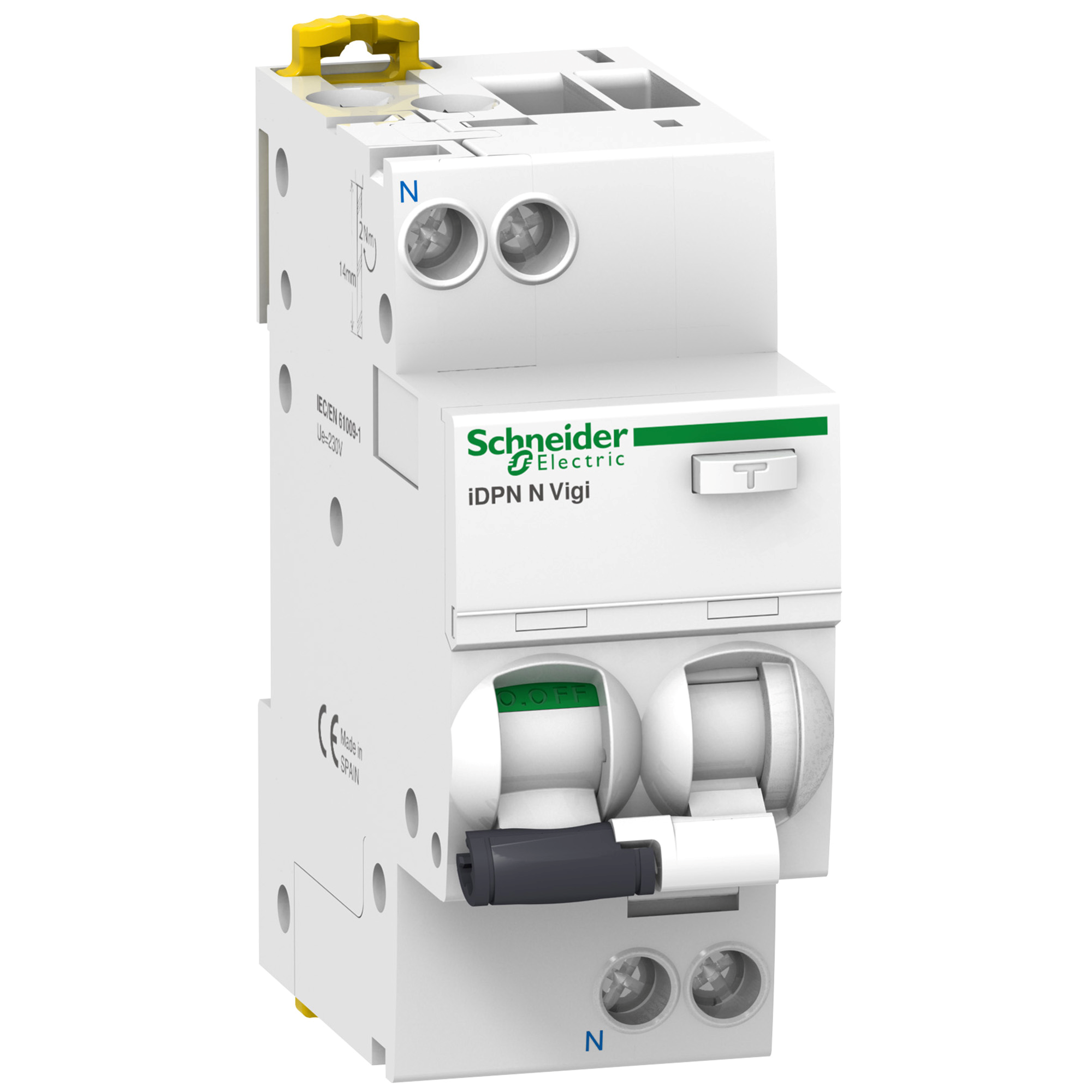

RESIDUAL CURRENT IDPN N VIGI 16A/C 30mA A-TYPE
Product code
A9D32616
Earth leakage circuit breaker iDPN N Vigi, 1p+N, 16A, 30mA class A
No product description available.
Product details
Technical specifications
Product class (ETIM)Earth leakage circuit breaker (EC000905)
Number of poles (total)2
Number of protected poles1
Rated voltage230 V
Rated insulation voltage Ui400 V
Rated impulse withstand voltage Uimp4 kV
Rated current16 A
Rated fault current0.03 A
Mounting methodDIN rail
Leakage current typeA
Current limiting class3
Power loss4.3 W
Rated short-circuit breaking capacity according to EN 610096 kA
Rated short-circuit breaking capacity according to IEC 60947-20 kA
Rated short-circuit breaking capacity Icn according to EN 61009-16 kA
Disconnection characteristicUndelayed
Product codes
SAPCBD108
PLCA9D32616
GTIN/EAN3606480472077
Manufacturer part numberA9D32616
Vendor material number3606480472077
Basic information
Package measurements (L x W x H)100 x 85 x 40 mm
Package volume0.34 l
Package weight0.218 kg
Base uniteach
Package units1 / 6 / 54
Package contents–
UNSPSC39121603
BrandSCHNEIDER ELECTRIC
VendorSCHNEIDER-RETAIL
