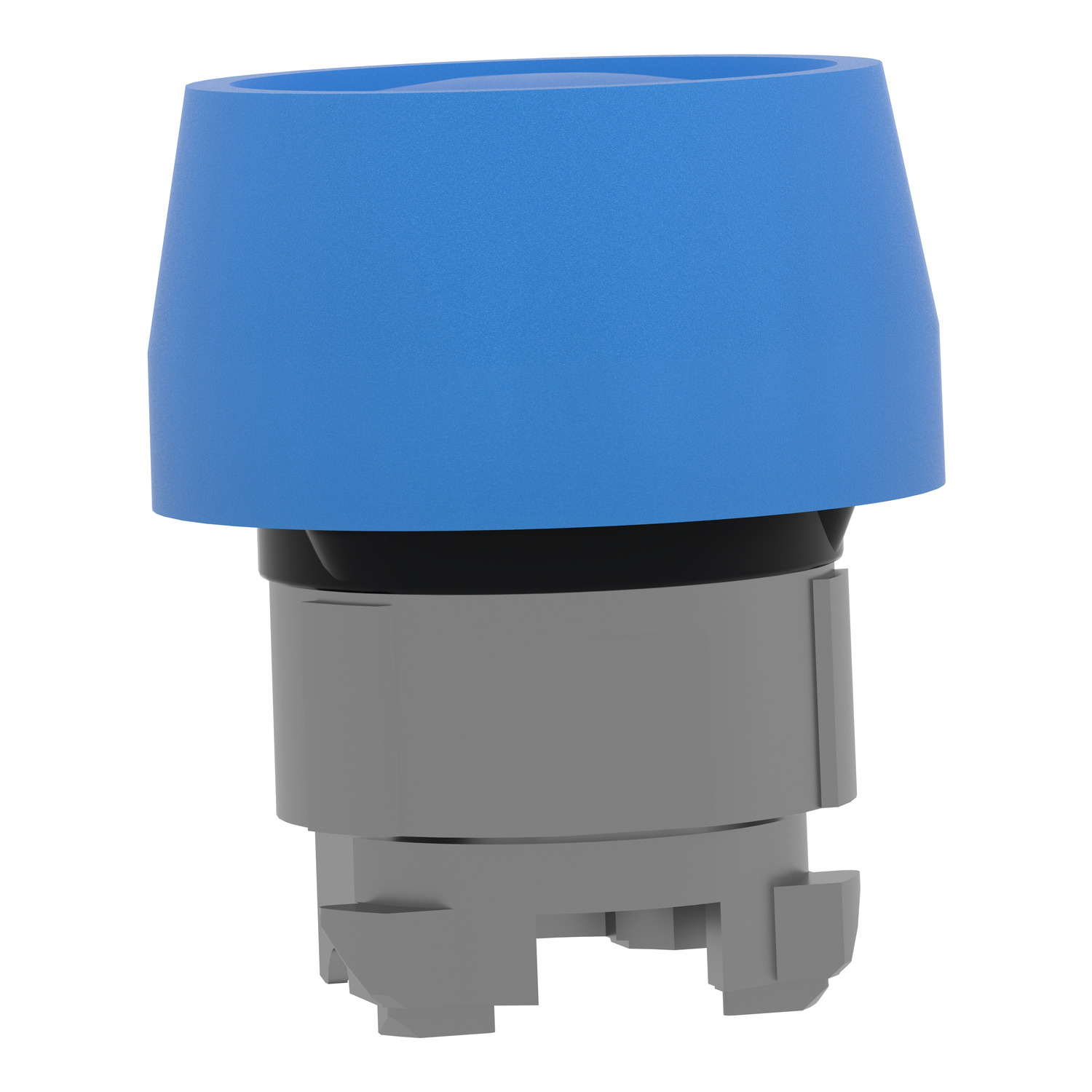

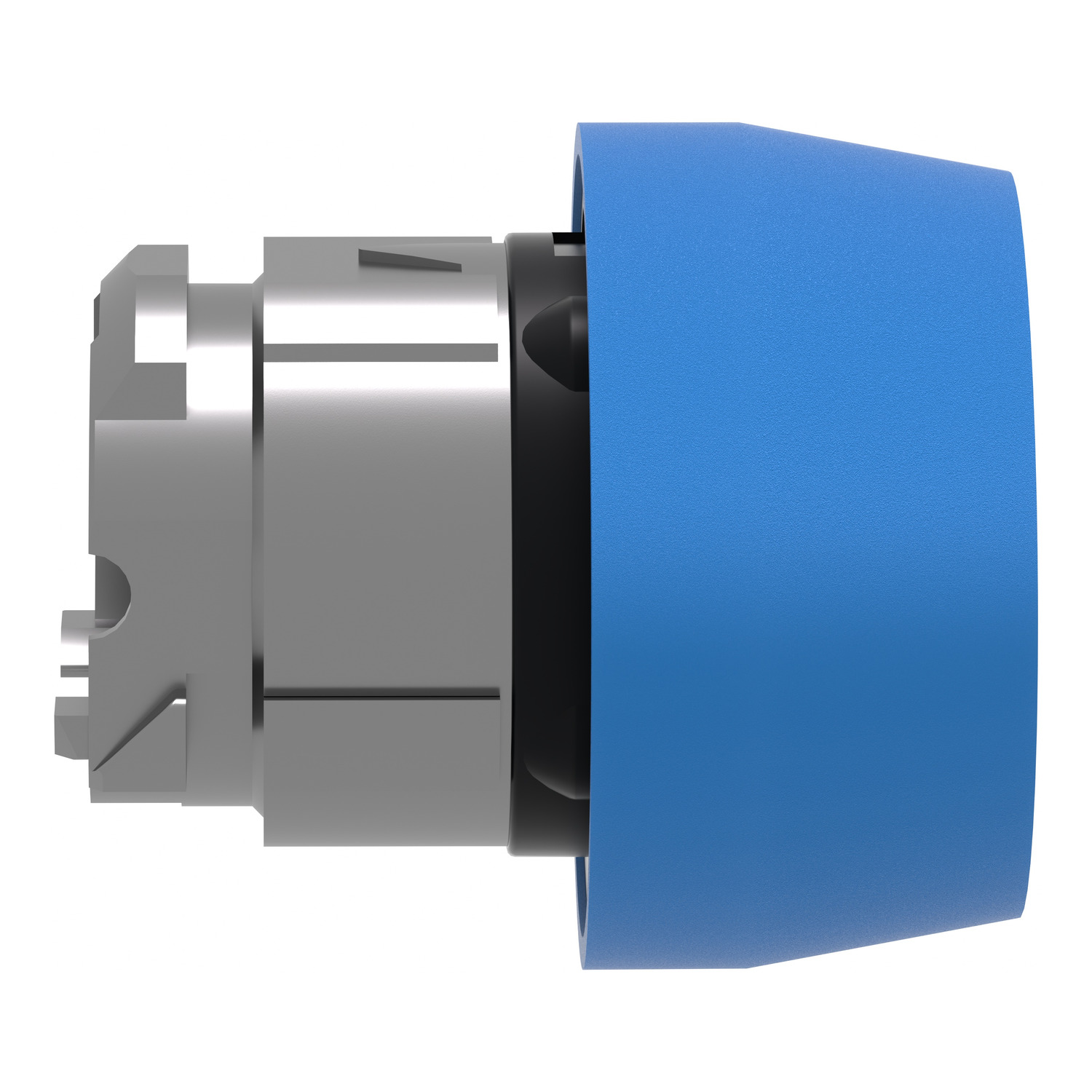

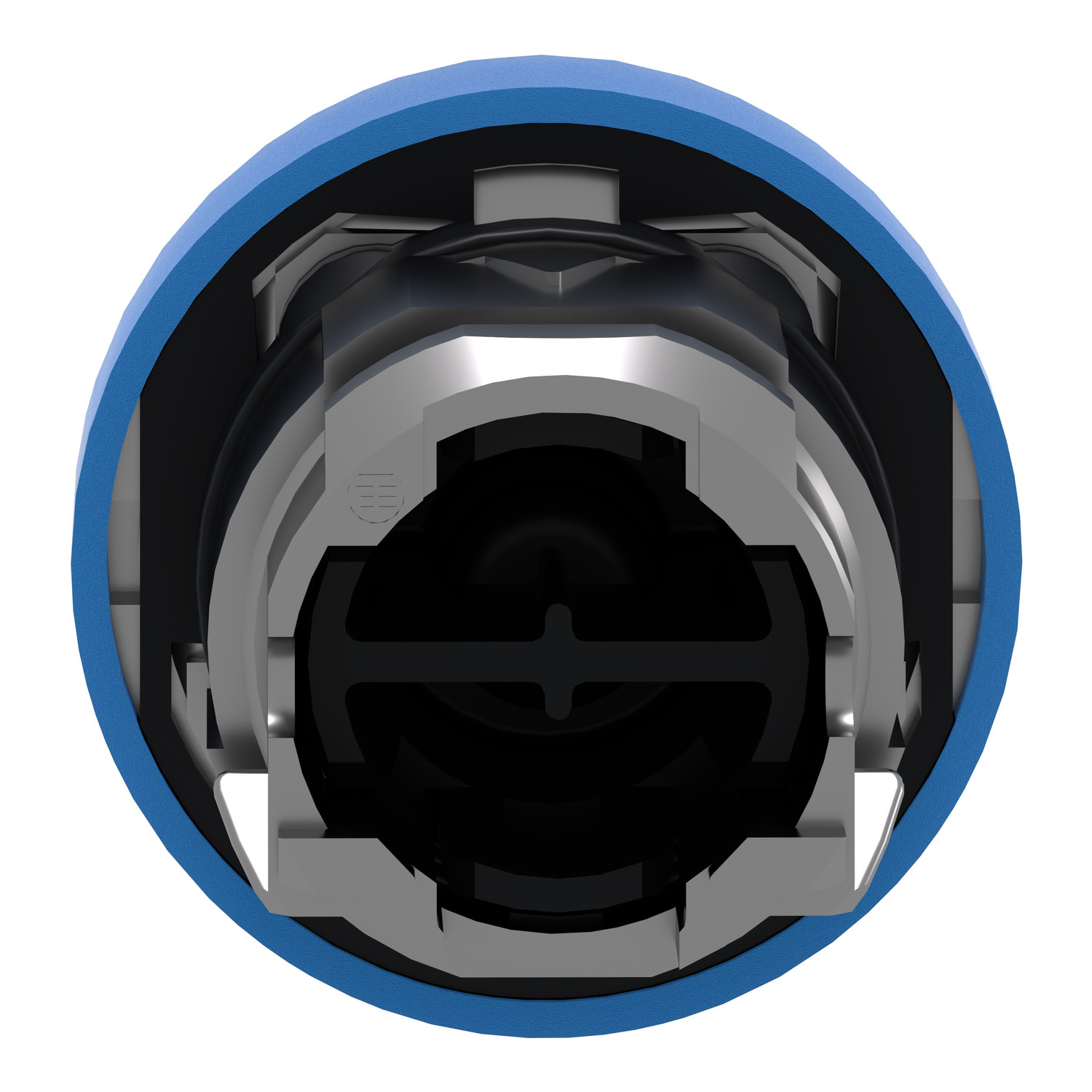

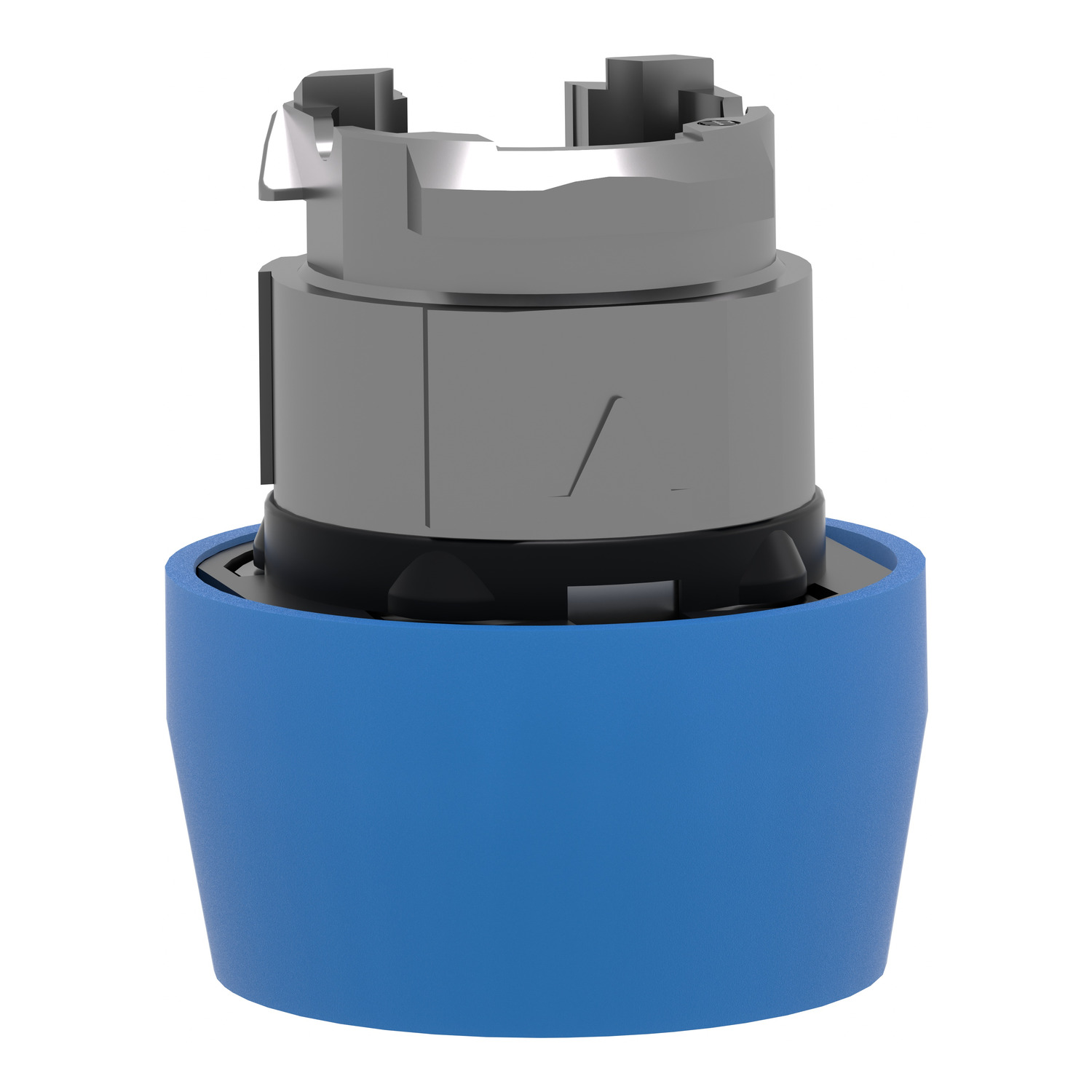

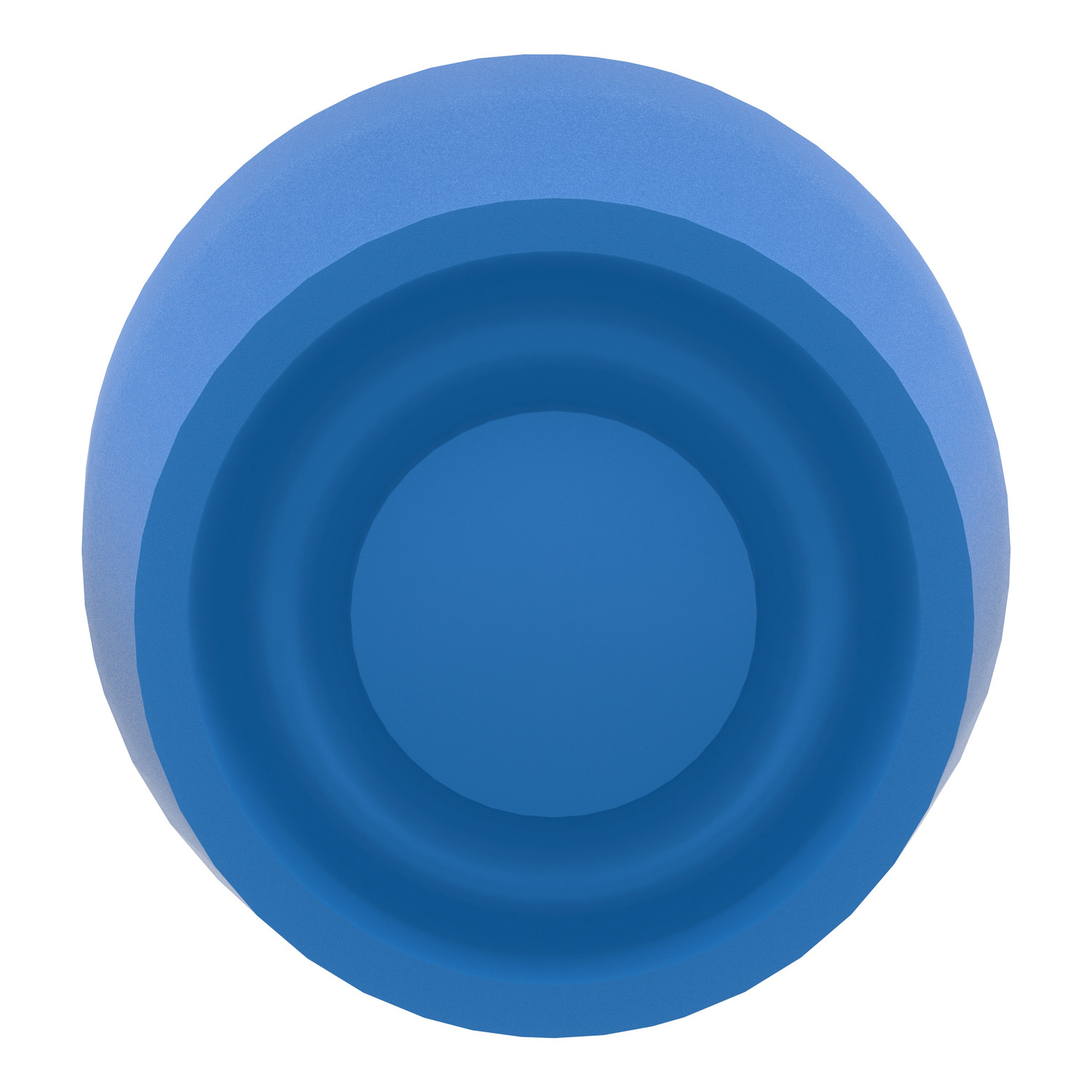

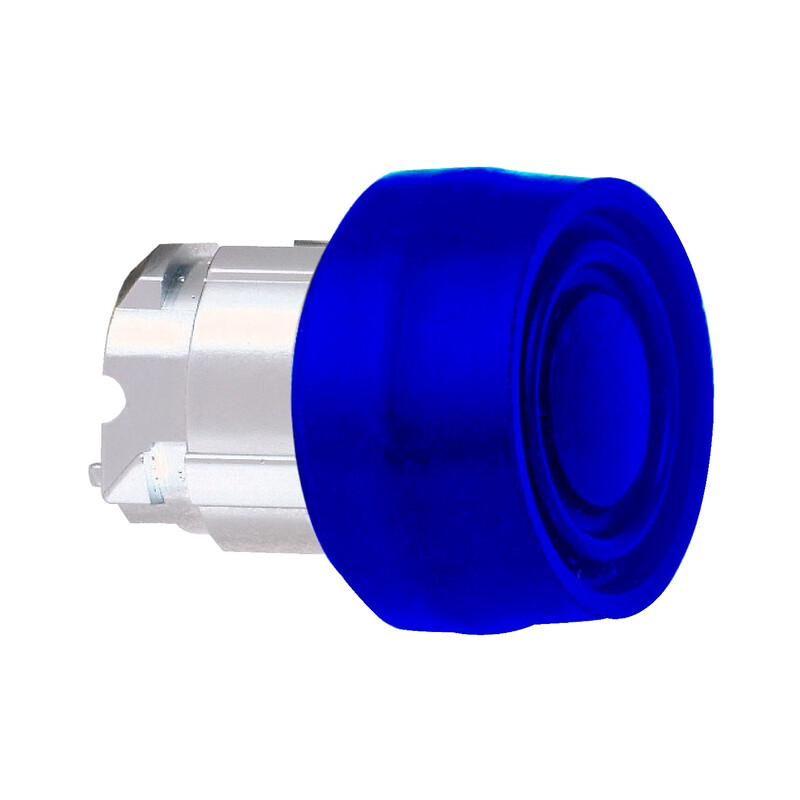

RUBBER SHIELDED BUTTON HARMONY ZB4BP6S

Product code
2300493

Robust button with integrated rubber protection. Designed especially for the requirements of the food industry and clean environments.

Features
  • The rubber protection shields the button from wear and facilitates cleaning.
  • Excellent performance even in wet environments.
  • High enclosure rating: IP66 / IP69K.
  • Vibration-resistant screws – no need for retightening.
  • Clear and durable markings, also customizable by the customer.

A simple and unified range that complements existing products designed for demanding environments and utilizes standard Harmony contacts and mounting necks.

This product description is an automated translation of the original Finnish description.

Product details

Technical specifications

Product class (ETIM)Front element for push button (EC000221)
Colour buttonBlue
Number of command positions1
Construction type lensRound
Hole diameter22.5 mm
Width opening0 mm
Height opening0 mm
Type of buttonFlat
Suitable for lightingno
With protective coverno
Labelledno
Switching function latchingno
Spring-returnyes
With front ringyes
Material front ringMetal
Colour front ringChrome

Product codes

SAPDCL477
STK2300493
PLC2300493
GTIN/EAN3389110999341
Manufacturer part numberZB4BP6S
Vendor material number2300493

Basic information

Package measurements (L x W x H)52 x 34 x 43 mm
Package volume0.076 l
Package weight0.029 kg
Base uniteach
Package units1 / 50
Package contents
UNSPSC39121534
BrandSCHNEIDER ELECTRIC
VendorSCHNEIDER ELECTRIC FINLAND OY

Environment and safety

Manufacturer

NameSchneider Electric Finland Oy
Postal addressSokerilinnantie 11 C, 02600 Espoo, Finland
