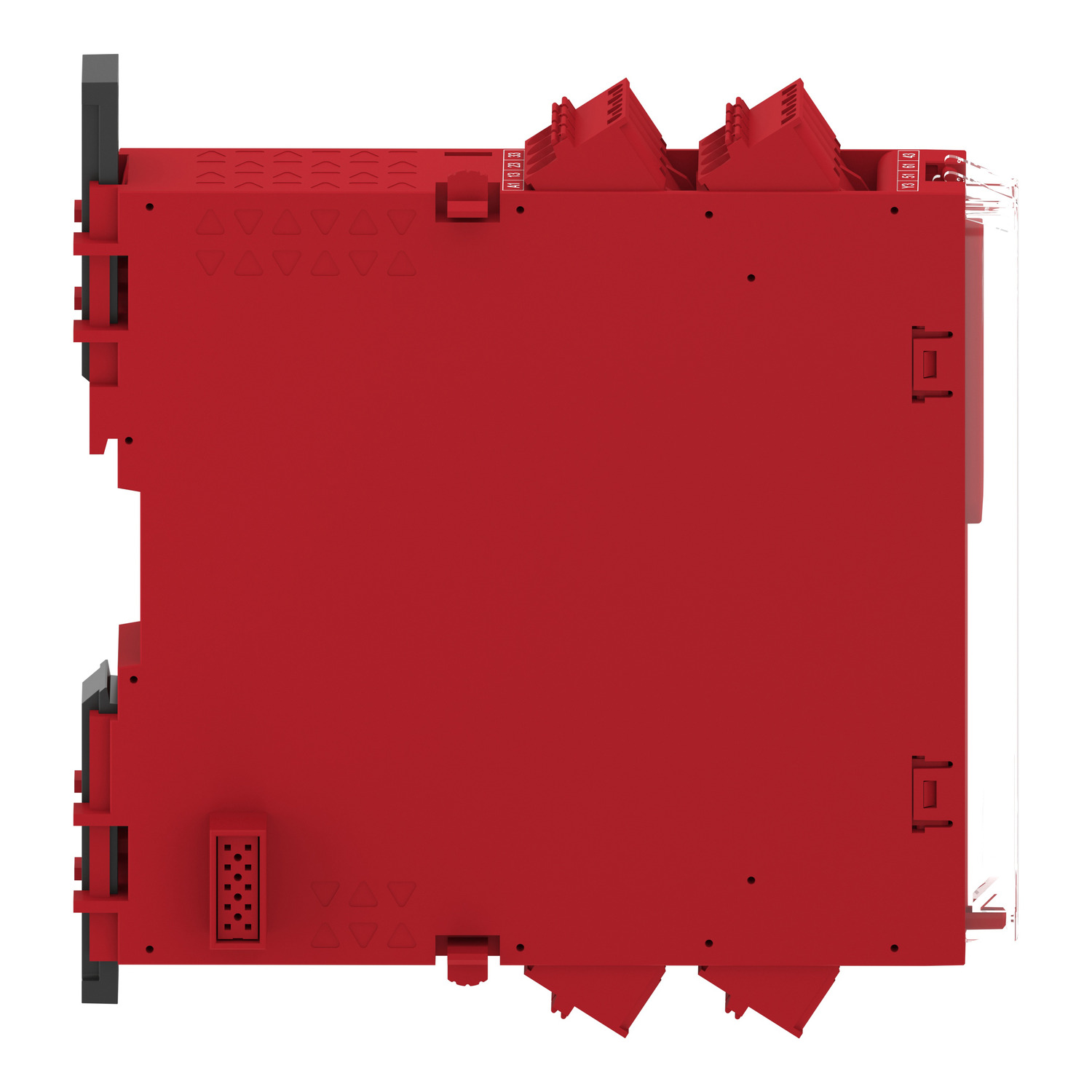

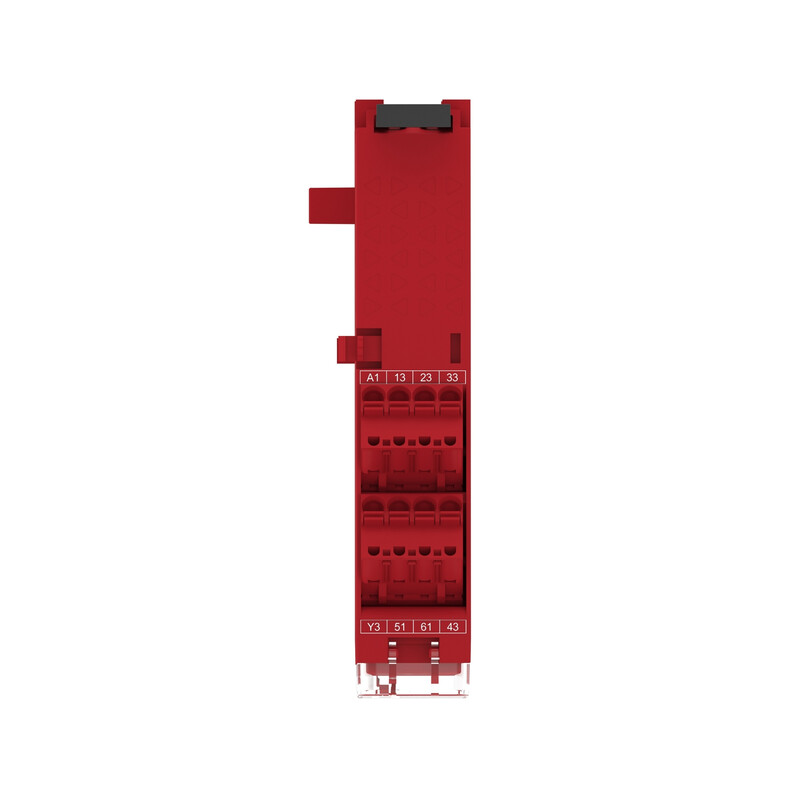

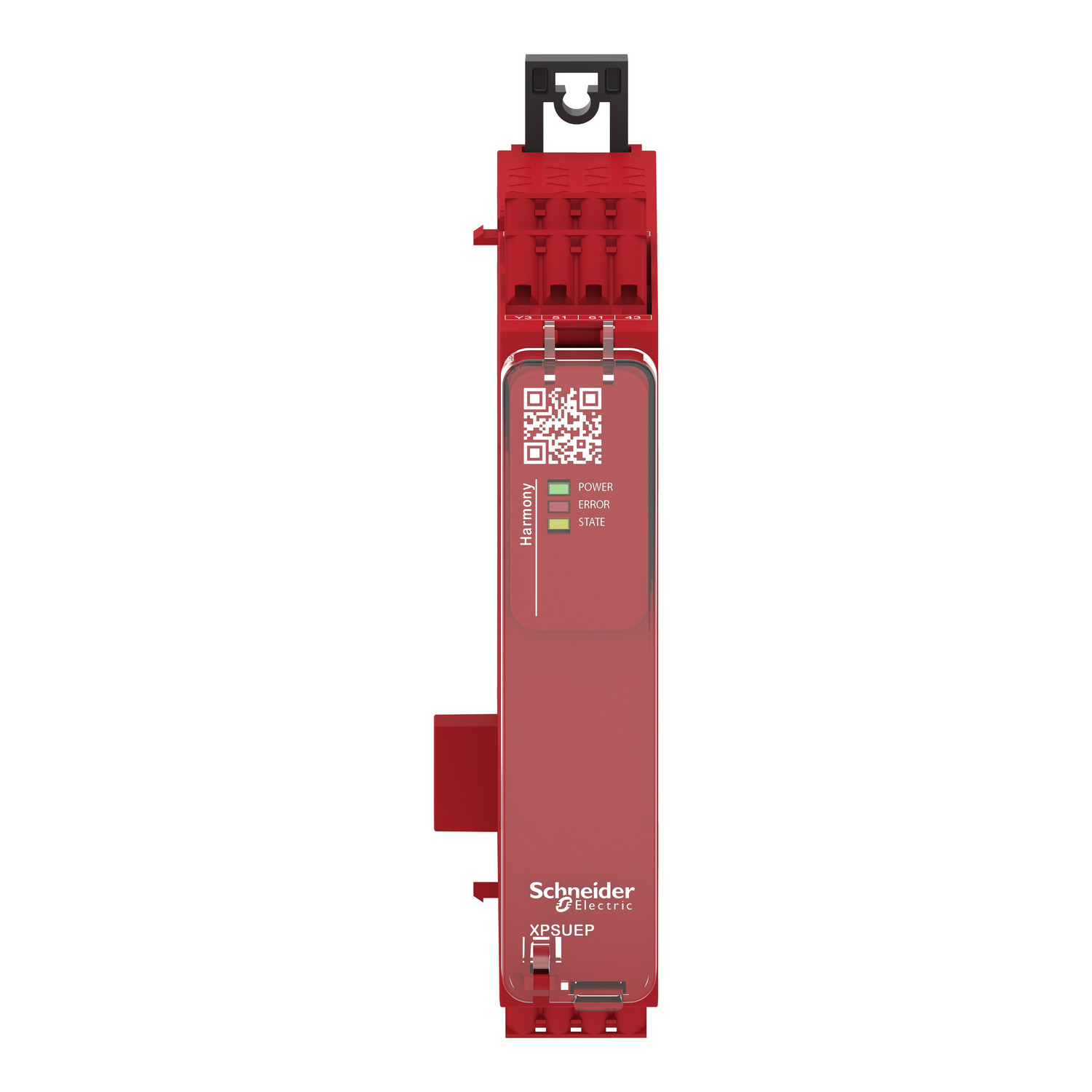

SAFETY RELAY PREVENTA XPSUEP34AC,Cat.4 48-230V spr

Preventa XPS Universal safety relay combines the simplicity of I/O control with versatile and intelligent diagnostic messages. Previously, comprehensive diagnostics required at least bus communication. XPSU provides intelligence through simple I/O communication: • Over 40 different diagnostic messages (depending on the model) can be transmitted via simple I/O communication by connecting XPSU directly to the PLC's digital input. • Intelligent diagnostics enable precise identification of the root cause of faults, reducing machine downtime and pinpointing the source of production stoppages. • Additionally, the intelligent output provides information on test intervals and remaining operational cycles before the system reaches its service life. Pulse output diagnostics are supported by ready-made application function blocks. Comprehensive diagnostics enhance the machine's predictive maintenance capability cost-effectively, making it suitable even for simpler machines. The XPSU safety relay incorporates multiple safety functions, easily selectable via a setting switch. Combining versatile functions in a single safety relay improves spare parts management and simplifies documentation. Using the available and thoroughly documented ready-made safety applications accelerates certification and documentation of safety functions. Technical specifications: • 22.5 & 45 mm width. • Two-row terminals on top and bottom (removable screw or spring terminals) • Transparent and sealable cover to protect against dust and prevent unauthorized settings • Side auxiliary connection for expanding safety outputs without additional wiring (not available on XPSUAB & XPSUEP models) • IP40 for enclosure, IP20 for terminals • DIN rail and base mounting possible • 24 VAC/DC + Wide supply voltage range of 48…240 VAC/DC (Only two different supply voltage ranges to cover all requirements) This product description is an automated translation of the original Finnish description.
