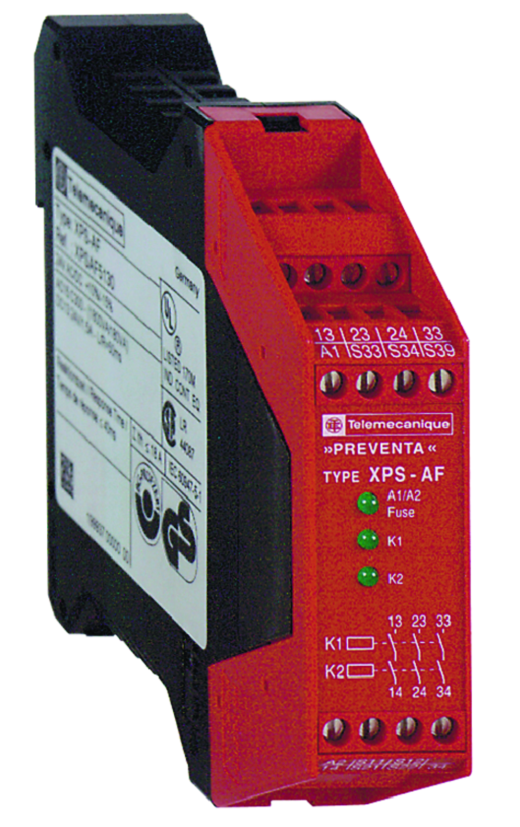

SAFETY RELAY SAFETY RELAY 3S 24V

Module XPSAF, Emergency stop, 24 V AC DC. range of product: Preventa Safety automation - product or component type: Preventa safety module - safety module name: XPSAF - safety module application: for emergency stop and switch monitoring - function of module: emergency stop monitoring 1-channel wiring, emergency stop monitoring 2-channel wiring, monitoring of a movable guard - safety level: can reach PL e/category 4 conforming to EN/ISO 13849-1, can reach SILCL 3 conforming to EN/IEC 62061 - safety reliability data: DC < 99 % conforming to EN/ISO 13849-1, MTTFd = 243 years conforming to EN/ISO 13849-1, PFHd = 4.62E-9 1/h conforming to EN/IEC 62061 - type of start: configurable - connections - terminals: captive screw clamp terminals, clamping capacity: 1 x 0.14...1 x 2.5 mm² flexible cable with cable end, with double bezel, captive screw clamp terminals, clamping capacity: 1 x 0.14...1 x 2.5 mm² solid cable with cable end, with double bezel, captive screw clamp terminals, clamping capacity: 1 x 0.25...1 x 1.5 mm² flexible cable with cable end, with double bezel, captive screw clamp terminals, clamping capacity: 1 x 0.25...1 x 2.5 mm² flexible cable with cable end, with double bezel, captive screw clamp terminals, clamping capacity: 2 x 0.14...2 x 0.75 mm² flexible cable with cable end, with double bezel, captive screw clamp terminals, clamping capacity: 2 x 0.14...2 x 0.75 mm² solid cable with cable end, with double bezel, captive screw clamp terminals, clamping capacity: 2 x 0.25...2 x 1 mm² flexible cable with cable end, with double bezel, captive screw clamp terminals, clamping capacity: 2 x 0.5...2 x 1.5 mm² flexible cable with cable end, with double bezel - [Us] rated supply voltage: 24 V AC (- 15...10 %), 24 V DC (- 15...10 %). Benefits: .. Applications: .. Benefits: Better anticipation for greater protection. Simple, they feature redundancy principle micro-processor based technology to provide advanced functions. Wide product range enabling easy selection of a module for monitoring a safety function.... Applications: - All potentially dangerous machines requiring protection for both the operator and the machine....
