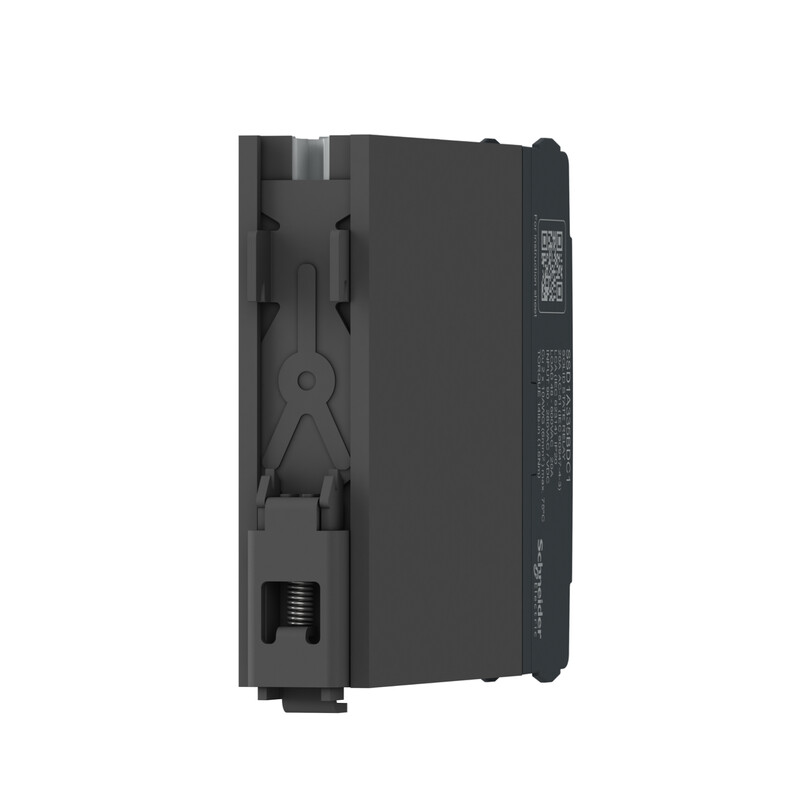

SEMI-WIRE RELAY HARMONY 1P SSR 35A 4-32VDC 48-600VAC
Product code
2724720
Harmony semiconductor relays are narrow and can be modularly mounted on a DIN rail or panel. The Zelio semiconductor relay is a comprehensive, innovative, and compact solution for industrial applications.
Features
- 35 A
- DIN rail mounting
- zero-crossing switching
- input 4...32 V DC, output 48...600 V AC
Product details
Technical specifications
Product class (ETIM)Solid state relay (EC002055)
Suitable for distribution boardyes
Rated control supply voltage DC4-32 V
Voltage type for actuatingDC
Number of phases1
Switching at zero-crossingyes
Rated operation current Ie at AC-10 A
Rated operation current Ie at AC-30 A
Rated operation current Ie at AC-510 A
Rated operation current Ie at AC-53a0 A
Rated operation current Ie at AC-53b0 A
Product codes
SAPCXT721
STK2724720
PLC2724720
GTIN/EAN3606489807894
Manufacturer part numberSSD1A335BDC1
Vendor material number2724720
Basic information
Package measurements (L x W x H)14 x 93 x 25 mm
Package volume0.033 l
Package weight0.317 kg
Base uniteach
Package units1
Package contents–
UNSPSC4301733
BrandSCHNEIDER ELECTRIC
VendorSCHNEIDER ELECTRIC FINLAND OY
