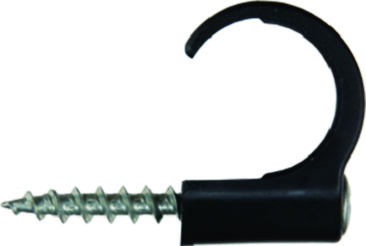

SCREW FASTENER TCS-C3 22-26 BLACK
Product code
1310162
The Thorsman cable clamp system includes nail-on and screw-on fittings in various colors. The excellent performance of the fittings is based on UV-protected, impact-resistant plastic material and durable surface treatments of metal components. Larger sizes are suitable for flexible conduit systems used in hollow walls.
Products can be attached to various sheet materials without special tools, combining high load capacity with rapid installation. Bolts and anchors are available for heavier installations. Through-bolts have certifications SP SITAC No. SC0268-10, and concrete screws have ETA 05/0010, ETA 05/0011, and DIBt No. Z-21.1-1503.
TP wall plugs are color-coded by size to facilitate selection of the correct drill bit and screw. The TPH plug is particularly suitable for softer materials such as lightweight concrete.
Innovative cable clips are designed for both cable and conduit installations and work excellently with Schneider's quick-connect system.
The Thorsman series offers products for small, medium, and large installations, both indoors and outdoors. Products are suitable for base materials such as wood, gypsum board, lightweight concrete, concrete, brick, and metal sheets. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Cable clip (EC000363)
Suitable for diameter22 - 26 mm
Width opening0 mm
Height opening0 mm
Double modelno
With nailno
Nail length45 mm
Nail diameter5 mm
Hardened steel nailno
MaterialPlastic
Surface protectionOther
ColourBlack
Product codes
SAPGCS380
STK1310162
PLC1310162
GTIN/EAN7315882190057
Manufacturer part number2190052
Vendor material number1310162
Basic information
Package measurements (L x W x H)32 x 14 x 45 mm
Package volume0.02 l
Package weight0.007 kg
Base uniteach
Package units50
Package contents1
UNSPSC39121705
BrandSCHNEIDER ELECTRIC
VendorSCHNEIDER ELECTRIC LEXEL
