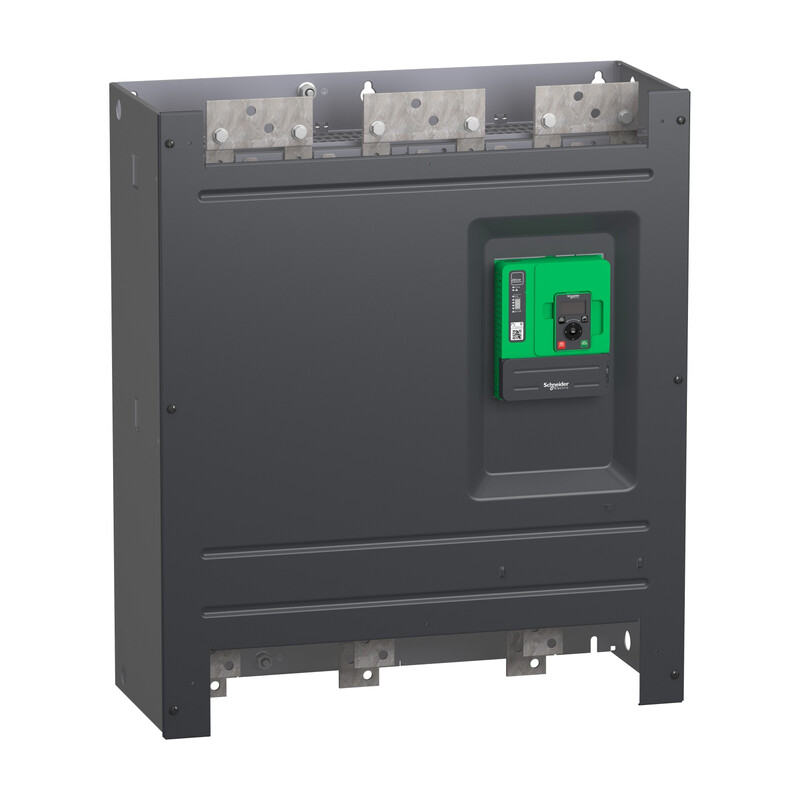

SOFT STARTER ALTISTART ATS480M12Y
Product code
3881393
Altivar soft starter ATS480, 1200 A, 208...690 V AC, control voltage 110...230 V AC This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Soft starter (EC000640)
Rated operation current Ie at 40 °C Tu1200 A
Rated operating voltage Ue208-690 V
Rated power three-phase motor, inline, at 230 V355 kW
Rated power three-phase motor, inline, at 400 V630 kW
Rated power three-phase motor, inside delta, at 230 V500 kW
Rated power three-phase motor, inside delta, at 400 V680 kW
FunctionSingle direction
Internal bypassno
With displayno
Torque controlyes
Rated surrounding temperature without derating40 °C
Rated control supply voltage AC 50 Hz208-690 V
Rated control supply voltage AC 60 Hz208-690 V
Voltage type for actuatingAC
Integrated motor overload protectionyes
Product codes
SAPDCL440
STK3881393
PLC3881393
GTIN/EAN3606481089199
Manufacturer part numberATS480M12Y
Vendor material number3881393
Basic information
Package measurements (L x W x H)1030 x 950 x 590 mm
Package volume577.315 l
Package weight135 kg
Base uniteach
Package units1
Package contents–
UNSPSC39121007
BrandSCHNEIDER ELECTRIC
VendorSCHNEIDER ELECTRIC FINLAND OY
