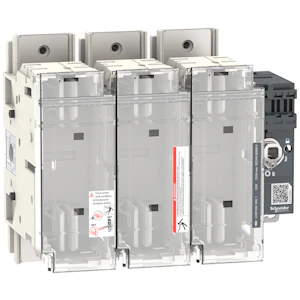

SWITCH FUSE FUPACT GS250 3P DIN1 250A AC22/AC23
Product code
3606115
The FuPacT GS series switch fuse features dual breaking technology and fast triggering and locking control, providing high levels of safety and performance. The range includes switch fuses for BS, NCF, and DIN fuses. FuPacT GS switch fuses are easy to install, operate, and maintain. The series offers a variety of mounting and cable connection accessories. This 3-pole switch fuse is designed for DIN size 1 fuses. The rated current of this switch fuse is 250A. The rated voltage is 690V AC and the application category is AC22/AC23. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Fuse switch disconnector (EC001040)
Version as main switchyes
Version as safety switchno
Max. rated operation voltage Ue AC690 V
Rated permanent current Iu250 A
Rated operation power at AC-23, 400 V132 kW
Rated short-time withstand current lcw100 kA
Suitable for fusesNH1
Number of poles3
With error protectionno
Type of electrical connection of main circuitScrew connection
Cable entryOther
Equipped with connectorsno
Suitable for floor mountingno
Suitable for front mountingyes
Suitable for busbar mountingno
Product codes
SAPDIJ315
STK3606115
PLC3606115
GTIN/EAN3606481713193
Manufacturer part numberLV481433
Vendor material numberLV481433
Basic information
Package measurements (L x W x H)340 x 210 x 205 mm
Package volume14.637 l
Package weight3611 kg
Base uniteach
Package units1
Package contents–
UNSPSC39122217
BrandSCHNEIDER ELECTRIC
VendorSCHNEIDER ELECTRIC FINLAND OY
Documents (1)
Links
Environment and safety
Manufacturer
NameSchneider Electric Finland Oy
Websitehttps://www.se.com/fi/fi/
Postal addressSokerilinnantie 11 C, 02600 Espoo, Finland
