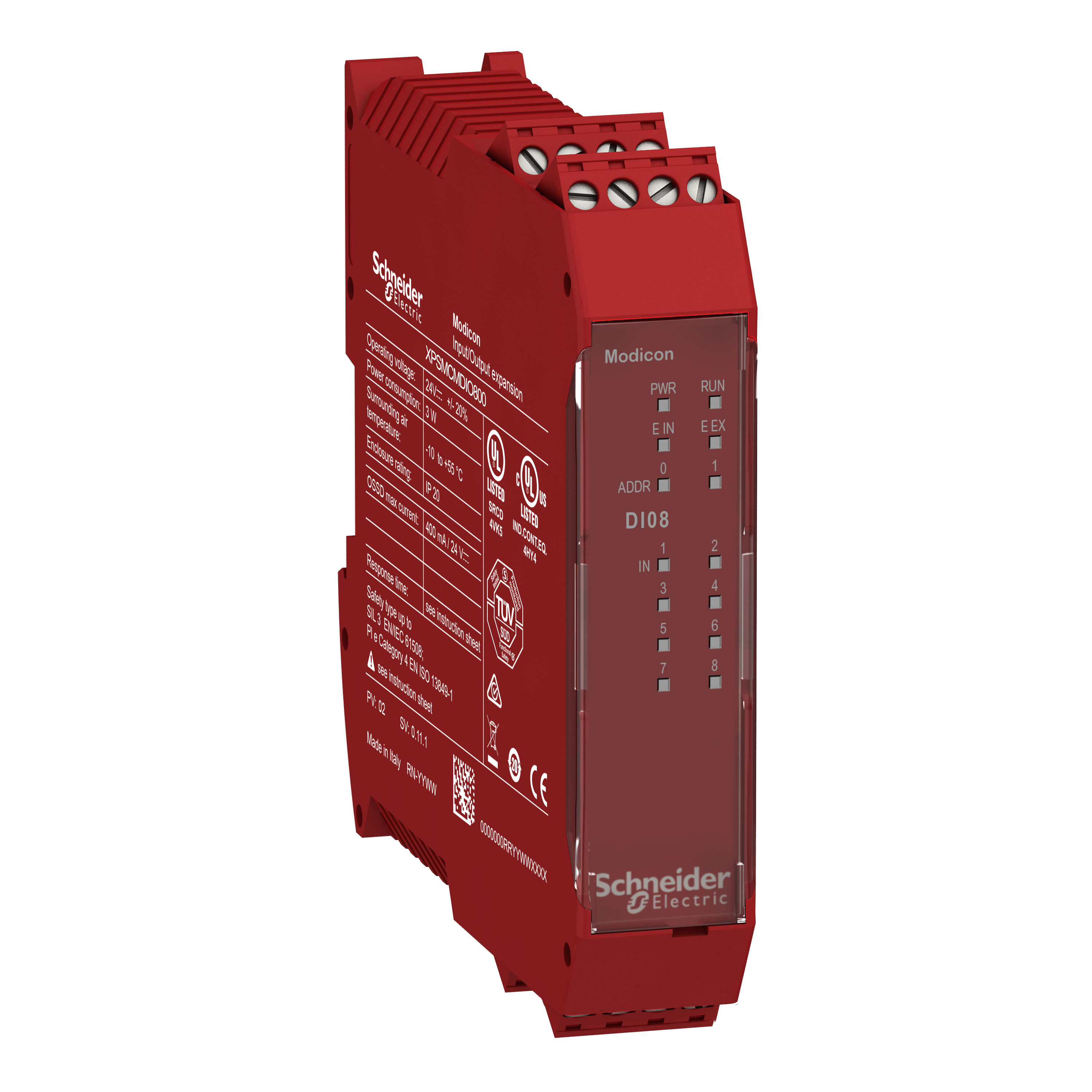

SAFETY RELAY PREVENTA 8 INPUT EXPANSION SCREW TERM

Preventa XPS MC, XPS MP safety controllers

More capacity and even greater peace of mind. Simple, device-based microprocessor technology with redundancy principle delivers advanced features: adaptable safety functions and more precise diagnostics—just a few of the benefits for machine manufacturers and users.

Features:

• Universal solutions
• Simultaneous monitoring of multiple safety functions.

XPS MC controller, configurable with Windows software XPSMCWIN.

• Category 4, EN 954-1, and SIL3, EN/IEC 61508.
• 16 and 32 input versions.
• 4 (2 x 2 N/O) relay outputs and 6 semiconductor outputs.
• 30 certified safety functions that monitor the application's safety functions.
• Connection to PLC logic control: Modbus, CANopen or PROFIBUS.

XPS MP controller; two safety functions can be selected from 15 predefined functions on the controller's front panel.

• Category 4, IEC 947-1.
• 6 (3 x 2 N/O) relay outputs/function.
• Additionally, 3 solid-state outputs.

Applications:

• All potentially hazardous machines requiring protection for both the operator and the machine.

This product description is an automated translation of the original Finnish description.
