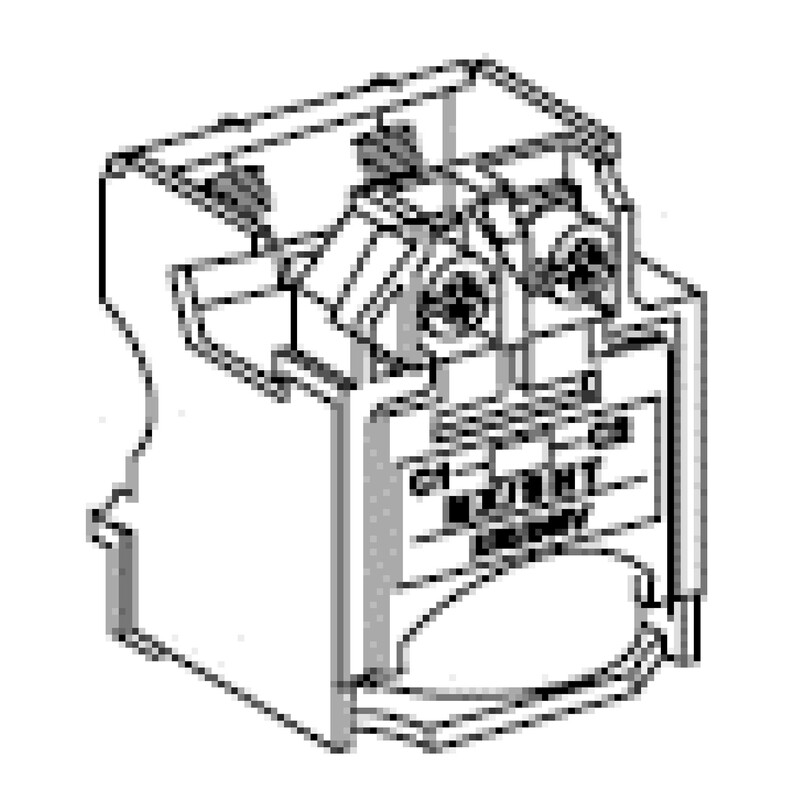

UNDER VOLTAGE RELEASE MN 110VAC
Product code
3653204
Undervoltage release MN, 110..130 V, 50/60Hz
NSX Compact undervoltage trip coil
Compact NSX is a new generation compact circuit breaker.
The undervoltage coil operates if the voltage drops to 35% of the coil's rated voltage.
The time delay unit eliminates the effects of voltage interruptions of less than 200ms.
Response time 50ms
Trip units available for voltages of 24-380VAC and 24-250VDC.
Also available with time delay unit. This product description is an automated translation of the original Finnish description.
Compact NSX is a new generation compact circuit breaker.
The undervoltage coil operates if the voltage drops to 35% of the coil's rated voltage.
The time delay unit eliminates the effects of voltage interruptions of less than 200ms.
Response time 50ms
Trip units available for voltages of 24-380VAC and 24-250VDC.
Also available with time delay unit. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Under voltage coil (EC001022)
Rated control supply voltage AC 50 Hz110-130 V
Rated control supply voltage AC 60 Hz110-130 V
Voltage type for actuatingAC
Type of electric connectionSpring clamp connection
Number of contacts as normally open contact0
Number of contacts as normally closed contact0
Number of contacts as change-over contact0
Delayedno
Suitable for power circuit breakeryes
Suitable for off-load switchyes
Suitable for motor safety switchyes
Suitable for overload relayno
Product codes
SAPAIQ801
STK3653204
PLC3653204
GTIN/EAN3606480018954
Manufacturer part numberLV429406
Vendor material number3653204
Basic information
Package measurements (L x W x H)80 x 63 x 40 mm
Package volume0.202 l
Package weight0.13 kg
Base uniteach
Package units1 / 60
Package contents–
UNSPSC39121616
BrandSCHNEIDER ELECTRIC
VendorSCHNEIDER ELECTRIC FINLAND OY
