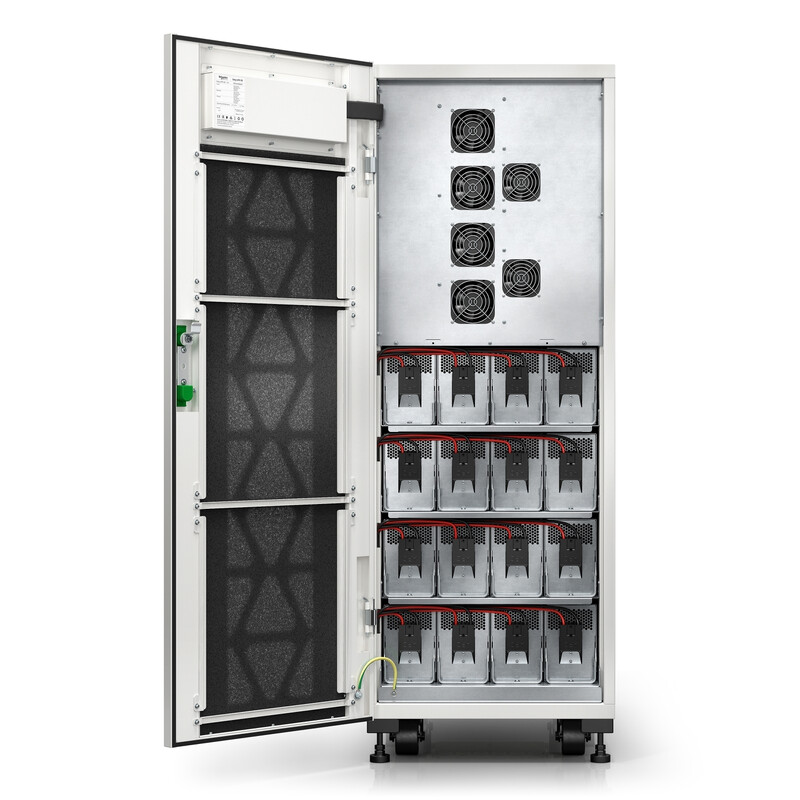

UPS-DEVICE ONLINE EASY 3S 30kVA 400V 3,3

Product code
8411661
A UPS equipped with competitive technical features is suitable for securing power supply in production facilities or premises. Easy UPS 3S series units are easy to install, operate, maintain, and service. Features
  • 3:3 model designed for internal batteries
  • Equipped with 400 V input and output voltage
  • Includes dust filter and coated circuit boards for demanding environments
  • Shipped without batteries, allowing easy scalability of backup runtime
  • Easy to install and replace battery modules thanks to modularity
  • User-friendly interface and commissioning
  • 96% efficiency with double conversion technology and 99% efficiency in ECO mode
  • Maintainable from front and rear
  • Wide range of options from NMC card to external bypass switches
  • EcoStruxure-compatible – monitoring capability via mobile app
This product description is an automated translation of the original Finnish description.

Product details

Technical specifications

Product class (ETIM)UPS (EC000382)
Input voltage380-415 V
Primary frequency50-60 Hz
Number of phases primary3
Output voltage380-415 V
Secondary frequency50-60 Hz
Output effective power30000 W
Output apparent power30000 VA
Number of phases secondary3
SNMPyes
Voltage typeAC
Height1400 mm
Width500 mm
Depth996 mm
Weight152 kg
Bridging time full load10 min

Product codes

SAPCMM637
STK8411661
PLC8411661
GTIN/EAN731304340812
Manufacturer part numberE3SUPS30KHB
Vendor material number8411661

Basic information

Package measurements (L x W x H)1114 x 683 x 1640 mm
Package volume1247.814 l
Package weight189.999 kg
Base uniteach
Package units1
Package contents
UNSPSC39121011
BrandSCHNEIDER ELECTRIC
VendorSCHNEIDER ELECTRIC FINLAND OY

Environment and safety

Carbon footprint data

Carbon footprint of product manufacturing (A1–A3 GWP value)338982.4008
GWP, uniteach
Source for GWP dataEPD

Documents (1)

Sustainability brochures & documents
