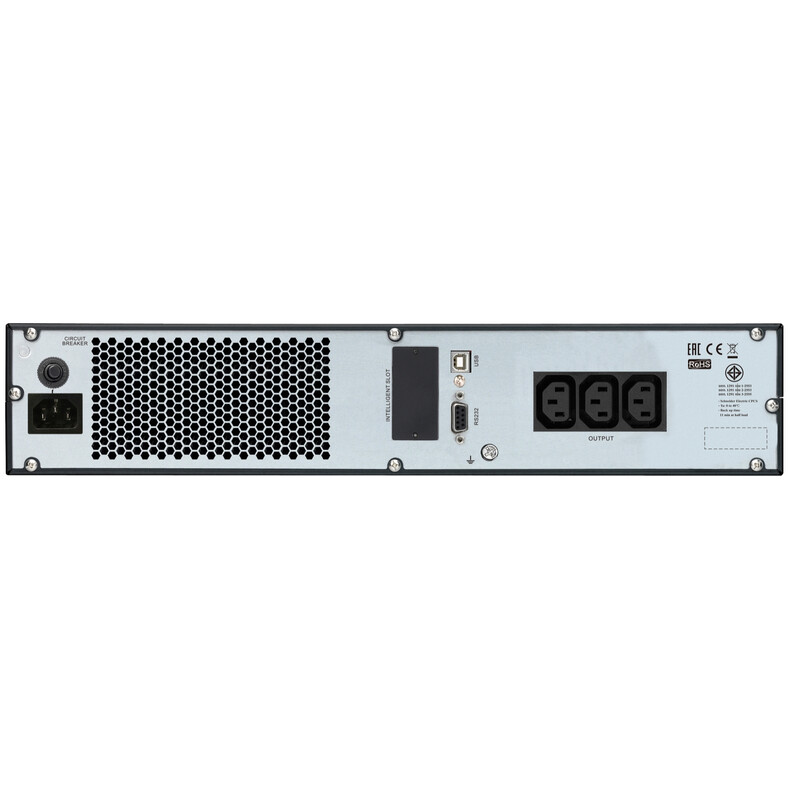

UPS-DEVICE ONLINE EASY SRVS-KRI 1kVA

Product code
8411558

Schneider Electric's Easy UPS Online SRVS-KRI rack models are standard battery-backed UPS units that provide precise voltage and frequency regulation through double-conversion technology. Rack models are available with power capacities from 1 to 10 kVA.

The Easy UPS Online protects equipment connected to the electrical grid from harmful voltage and current spikes, voltage sags, and harmonic distortions. Thanks to its wide input voltage range, the product family delivers a reliable solution even under unstable conditions, combined with optimized battery performance and intelligent temperature-compensated charging that maximizes battery life.

Features
  • Online double-conversion technology for seamless and clean power supply
  • requires rack mounting rail SRVSRK1 for rack installation
  • ECO Mode improves energy efficiency
  • Optional management cards: SNMP card APVS9601, Modbus card SRVSMB001, and relay card VGLS9901I
  • Intuitive LCD display
  • Compatible with generator operation
  • Noise level below 50 dB measured at one meter
  • 2-year warranty
This product description is an automated translation of the original Finnish description.

Product details

Technical specifications

Product class (ETIM)UPS (EC000382)
Input voltage230-230 V
Primary frequency40-70 Hz
Number of phases primary1
Output voltage220-240 V
Secondary frequency50-60 Hz
Output effective power800 W
Output apparent power1000 VA
Power consumption800 W
USB interfaceyes
With communication interface RS-232no
Number of phases secondary1
SNMPyes
Voltage typeAC
Height86 mm
Width438 mm

Product codes

SAPCQO275
STK8411558
PLC8411558
GTIN/EAN731304341789
Manufacturer part numberSRVS1KRI
Vendor material number8411558

Basic information

Package measurements (L x W x H)551 x 455 x 218 mm
Package volume54.654 l
Package weight13.671 kg
Base uniteach
Package units1
Package contents
UNSPSC39121011
BrandSCHNEIDER ELECTRIC
VendorSCHNEIDER ELECTRIC FINLAND OY

Documents (4)

Environment and safety

Manufacturer

NameSchneider Electric Finland Oy
Postal addressSokerilinnantie 11 C, 02600 Espoo, Finland
