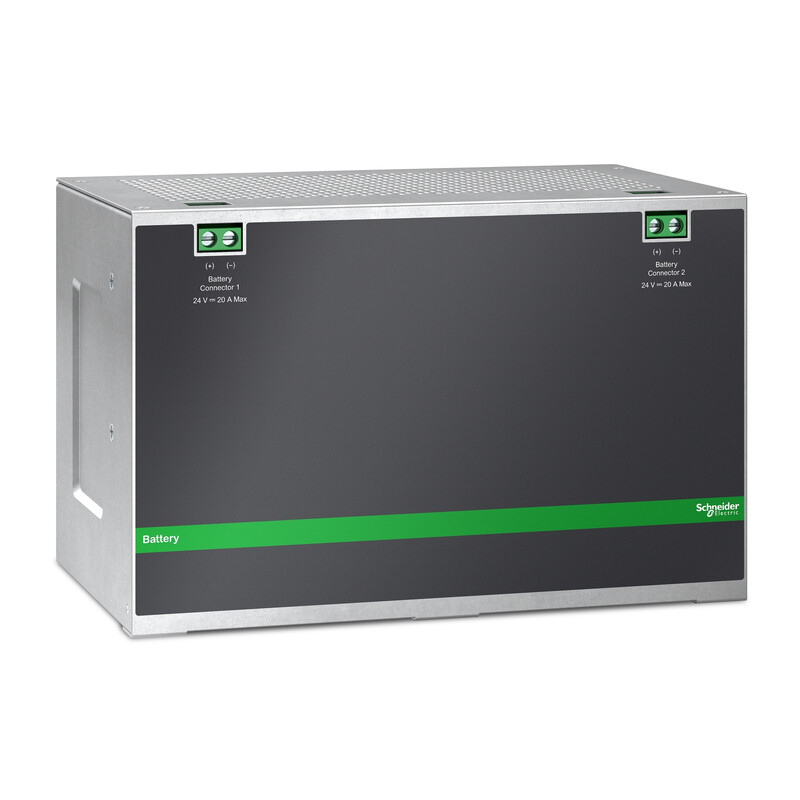

UPS-DEVICE ONLINE EASY UPS BVS-PDR DIN BATTERY 4,5Ah
Product code
8411651
Additional battery Easy UPS BVS-PDR 24 Vdc for DIN-rail mounted UPS. Up to four of these 4.5 Ah batteries can be connected to achieve the desired backup time. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Standard battery (rechargeable) (EC000357)
Size indicationBlock
Number of cells2
ModelOther
Nominal voltage24 V
Capacity4500 mAh
IEC indicationOther
Other indicationsOther
Length120.2 mm
Height including pole128.5 mm
Width192.4 mm
Diameter0 mm
Battery packyes
Suitable for EX-applicationsno
Plastic housingno
Ambient temperature-15-50 °C
Product codes
SAPCPY828
STK8411651
PLC8411651
GTIN/EAN731304451518
Manufacturer part numberXB005XPDR
Vendor material number8411651
Basic information
Package measurements (L x W x H)484 x 406 x 218 mm
Package volume42.838 l
Package weight4.8 kg
Base uniteach
Package units1
Package contents–
UNSPSC39121011
BrandSCHNEIDER ELECTRIC
VendorSCHNEIDER ELECTRIC FINLAND OY
