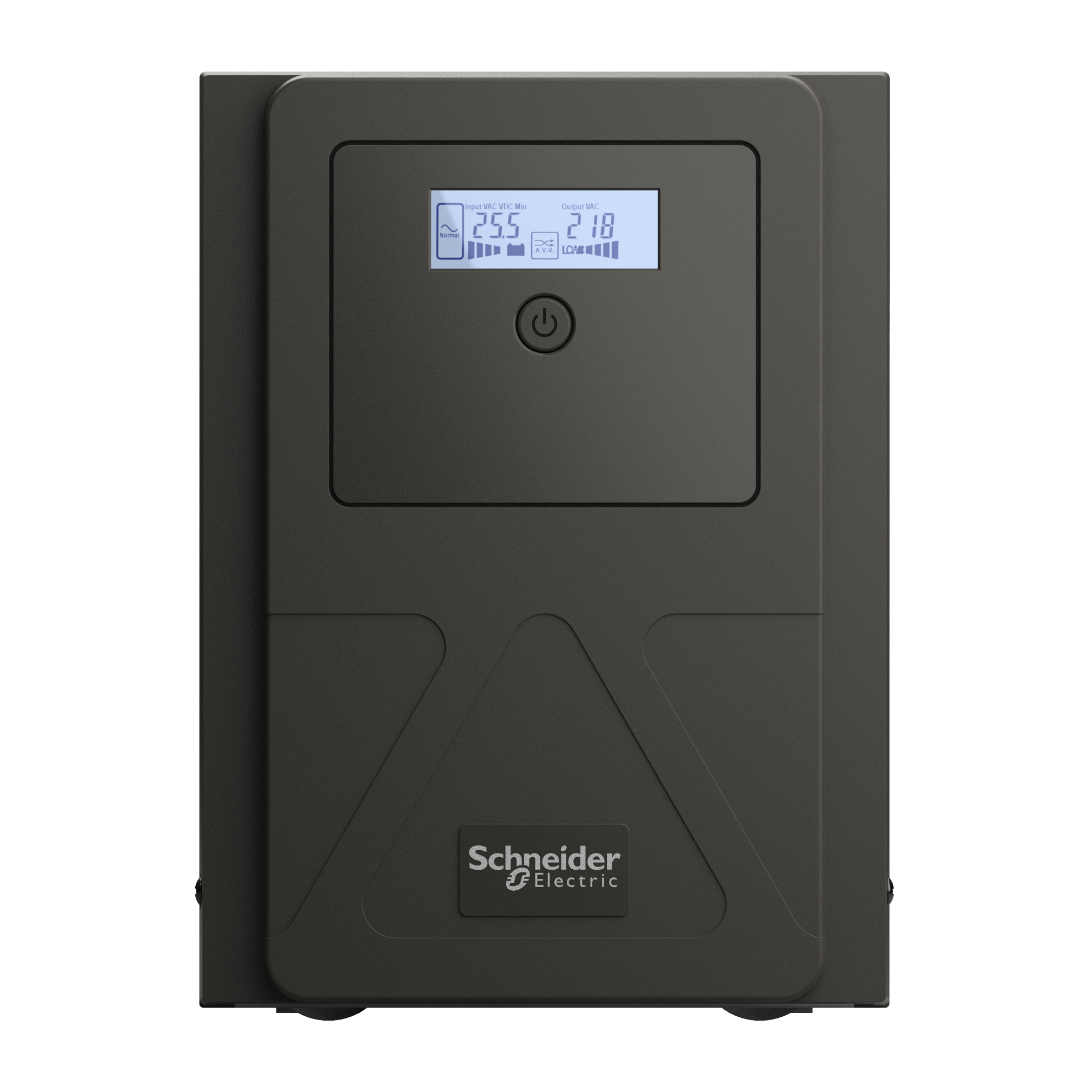

UPS LINE-INTERACTIVE EASY SMVS 1000VA/700W 6XC13 1XC14

Product code
8411653

Easy UPS SMVS series UPS units are designed to ensure that critical equipment remains operational even under very unstable electrical conditions. Suitable applications include all facilities that use single-phase power only. These units are suitable for protecting small network and server setups, office equipment and workstations, and retail cash register systems.

Features
  • This UPS supplies pure sine wave power and is of the line-interactive type, meaning it can adjust the output voltage to an appropriate level before power reaches the protected equipment.
  • AVR (Automatic Voltage Regulation) smooths out fluctuations in line voltage without switching to battery mode.
  • The unit has a wide input voltage range: 165-295V ± 5V.
  • An easy-to-read LCD display provides detailed and accurate information about the UPS status.

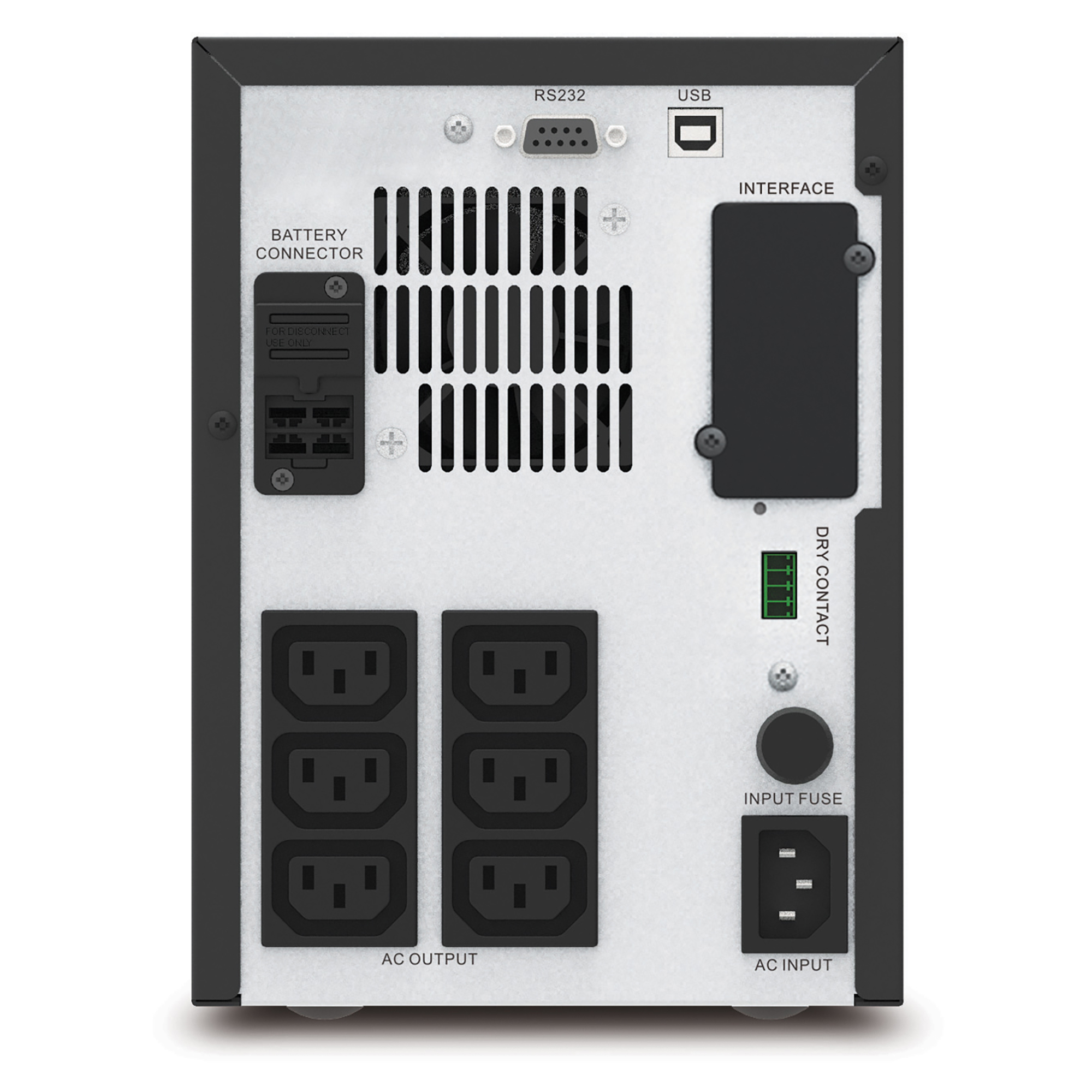

  • The unit is equipped with USB and serial port connectivity (RS-232).
  • It also includes a slot for a network card (APVS9602).
This product description is an automated translation of the original Finnish description.

Product details

Technical specifications

Product class (ETIM)UPS (EC000382)
Input voltage165-295 V
Primary frequency45-65 Hz
Number of phases primary1
Output voltage220-240 V
Secondary frequency50-60 Hz
Output effective power700 W
Output apparent power1000 VA
Power consumption700 W
USB interfaceyes
With communication interface RS-232yes
Number of phases secondary1
SNMPyes
Voltage typeAC
Height220 mm
Width160 mm

Product codes

SAPCMF737
STK8411653
PLC8411653
GTIN/EAN731304344322
Manufacturer part numberSMVS1000CAI
Vendor material number8411653

Basic information

Package measurements (L x W x H)505 x 340 x 275 mm
Package volume47.218 l
Package weight15.36 kg
Base uniteach
Package units1
Package contents
UNSPSC39121011
BrandSCHNEIDER ELECTRIC
VendorSCHNEIDER ELECTRIC FINLAND OY
