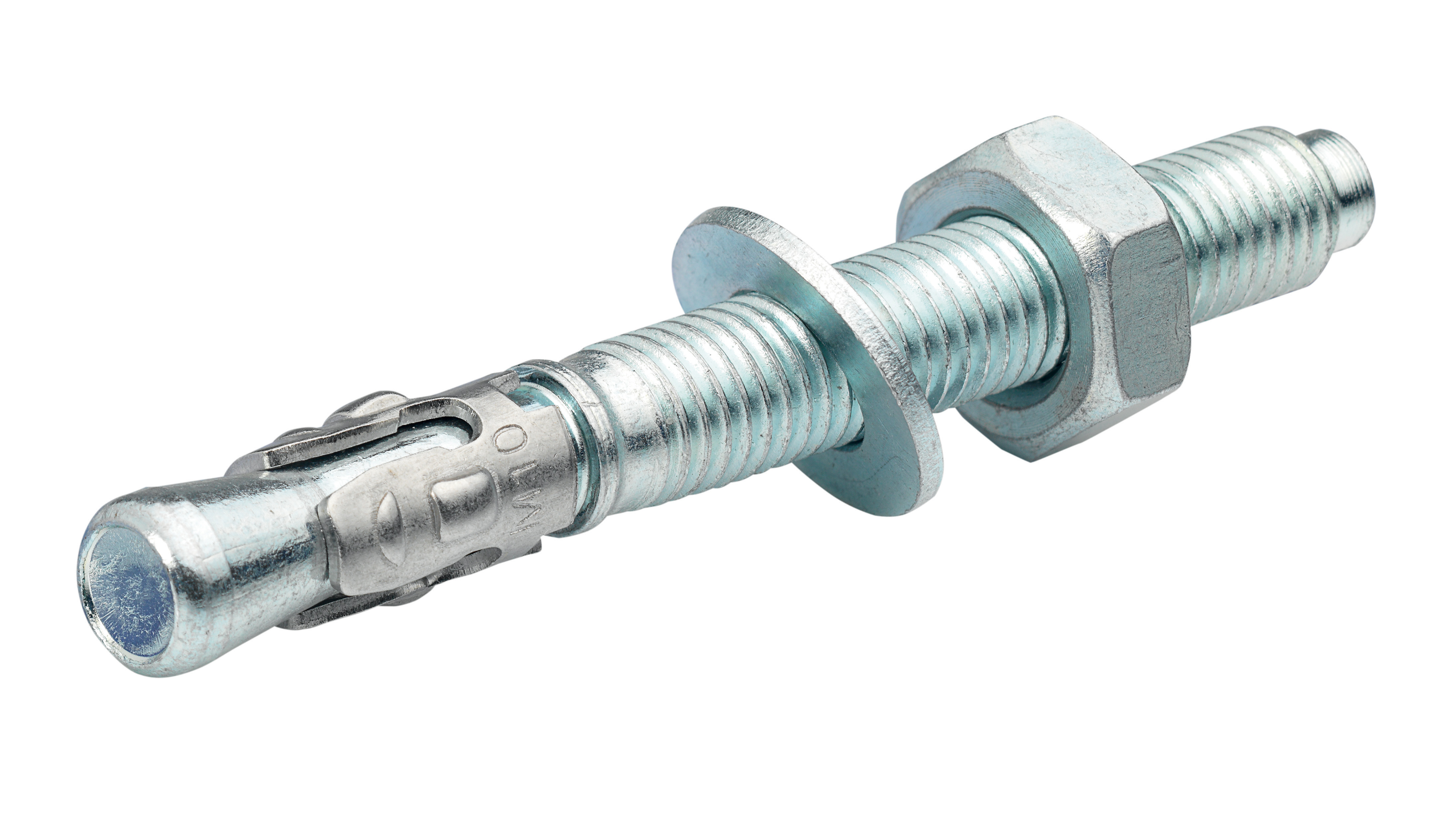

WEDGE ANCHOR BOLT TEX-C2 M8X95 FZB

Product code
1312303
Thorsman, TEX-C2 M8x95, through bolt, set of 50. range of product: Thorsman - product or component type: through bolt - device short name: TEX - provided equipment: nut, washer - quantity per set: set of 50. Benefits: Cabling and fixing for demanding professionals, Complete cable fixing range with nail and screw clips in several colours. The cable clips have best-in-class performance thanks to the high UV-protected impact-resistant plastic material, and the high performance surface treatments for the metal components. Larger sizes fit conduits for hollow wall installations., For extreme environments, next to the ocean or in costal regions, use our C5M acid-proof stainless steel TKS cable clamps., Cavity fixing range with products that are installed without special tools in a variety of board materials. High load values combined with fast installation., Bolts and anchor products suitable for heavier installations. Through-bolts certified by SP SITAC No. SC0268-10, Concrete screws certified by ETA 05/0010, ETA 05/0011, DIBt no.Z-21,1-1503., Wall plugs TP have a unique colour code to identify each plug size. Each colour tells what drill and screw to use., The TPH high performance plug works very well in softer materials like aerated concrete or brick., The innovative Cable Wings are developed for both cable and conduit installations. They are especially suitable for our quick-connect system.... Applications: The range consists of professional products for light, medium and heavy installations in indoor and outdoor applications. The products are suitable in base materials like wood, plasterboard, aerated concrete, concrete, brick and sheet metal....

Product details

Technical specifications

Product class (ETIM)Anchor bolt (EC000048)
Thread typeMetric
Thread size (metric)8
Thread size (imperial)5/16 inch
Length95 mm
Drill hole diameter8 mm
Wrench width13 mm

Product codes

SAPAMT607
STK1312303
PLC1312303
GTIN/EAN3606480214691
Manufacturer part numberIMT38008
Vendor material numberIMT38008

Basic information

Package measurements (L x W x H)95 x 8 x 120 mm
Package volume1.44 l
Package weight19.73 kg
Package units1
Package contents50 each
BrandSCHNEIDER ELECTRIC
VendorSCHNEIDER ELECTRIC LEXEL
