Product code
2000530

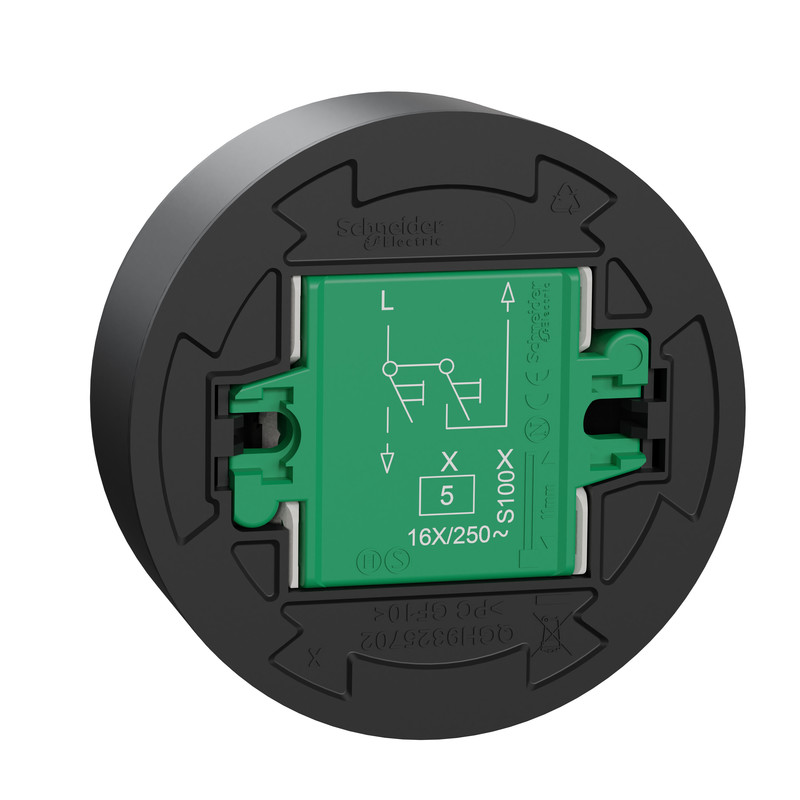

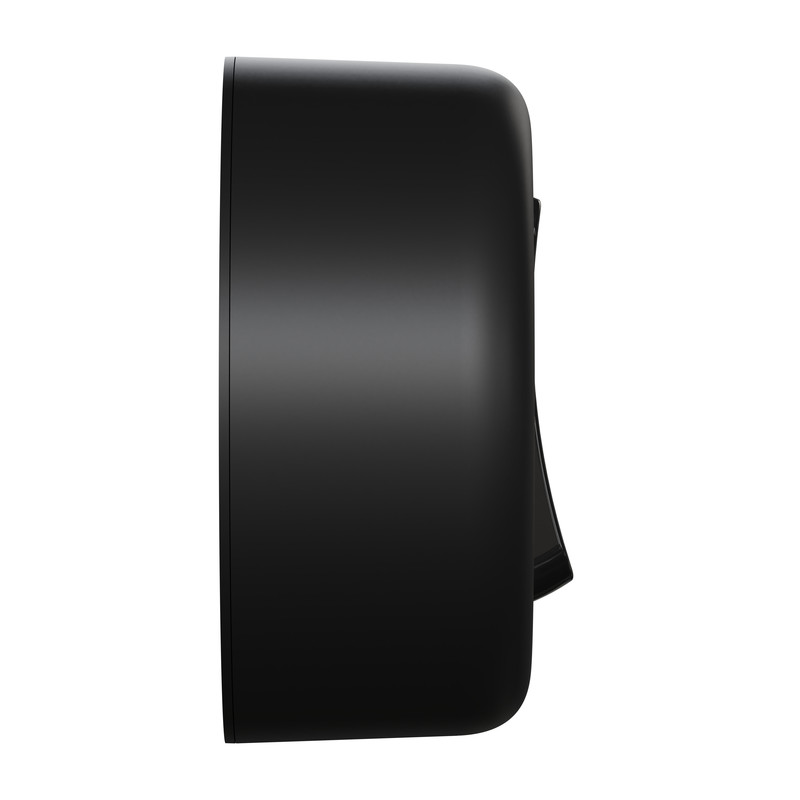

Renova surface-mounted switch. The classic retro style of Renova IP21 surface-mounted fixtures is particularly suitable for vintage interior designs. The range offers the most common fixtures and is available in traditional Renova colors, black and white.
Features
- possibility of screw mounting the switch module
- 16 A / 250 V
- two additional terminals
- can add a pulse spring
- in IP21-rated installation, the conductor is brought to the device from the side or bottom
- IP20 without plastic parts
Product details
Technical specifications
Product class (ETIM)Installation switch (EC001590)
Wiring systemOther
Method of operationRocker/button
Assembly arrangementBasic element with complete housing
Push button switchno
Number of rockers2
Mounting methodSurface mounted
Type of fasteningScrew mounting
With mounting plateyes
MaterialPlastic
Material qualityThermoplastic
Halogen freeyes
Anti-bacterial treatmentno
Surface protectionUntreated
Surface finishingMatt
ColourBlack
Product codes
SAPCHU692
STK2000530
PLC2000530
GTIN/EAN3606489504670
Manufacturer part numberWDE015916
Vendor material number2000530
Basic information
Package measurements (L x W x H)70 x 70 x 35 mm
Package volume0.172 l
Package weight0.06 kg
Base uniteach
Package units1 / 5 / 140
Package contents–
UNSPSC39122209
BrandSCHNEIDER ELECTRIC
VendorSCHNEIDER ELECTRIC ASENNUSKALUST
