JUNISTAR SOFT SORT 9W LED 3000K
Product code
4221022

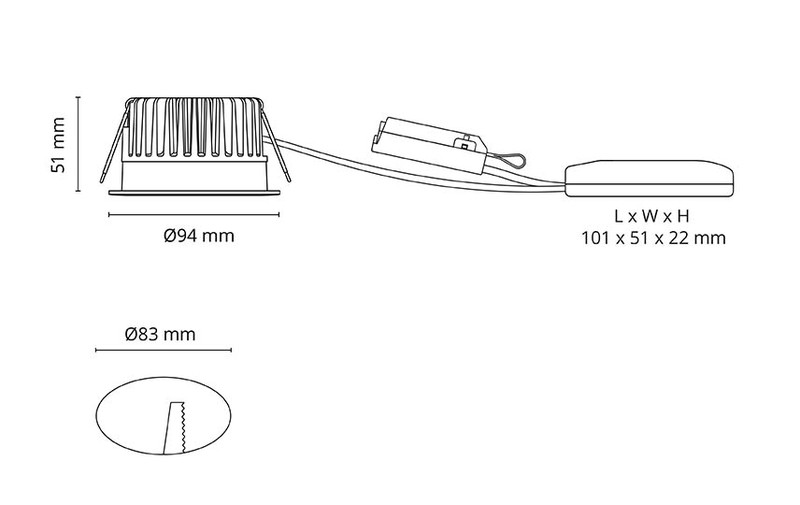

Junistar Soft is a very low glare downlight for indoor use. Integrated high-efficiency LED light source with Ra>98 SDCM 2, phase dimming or DALI interface. Manufactured from powder-coated die-cast aluminum. Equipped with a clear lens. 42-degree beam angle. Recessed depth of 51mm and recessed opening Ø83mm. Tool-free installation. Connectable in a junction box with plug-in terminals. Ingress protection rating IP54. Power can be adjusted via DIP switches. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Downlight/spot/floodlight (EC001744)
Suitable for surface mountingno
Suitable for built-in mountingyes
Suitable for wall mountingno
Suitable for suspended mountingno
Suitable for ceiling mountingyes
Suitable for traverse mountingno
Suitable for pedestal/floor mountingno
Suitable for light-track mountingno
Suitable for clamp-mountingno
Suitable for low voltage cable systemno
AdjustabilityNot adjustable
With movement sensorno
With presence detectorno
With light sensorno
Lamp typeLED not exchangeable
Product codes
SAPCEG685
STK4221022
PLC4221022
GTIN/EAN7021989033134
Manufacturer part number903313
Vendor material number4221022
Basic information
Package measurements (L x W x H)110 x 110 x 110 mm
Package volume1.331 l
Package weight0.44 kg
Base uniteach
Package units1 / 20 / 480
Package contents–
UNSPSC39111515
BrandSG ARMATUREN
VendorSG ARMATUREN OY
Documents (9)
Images
Brochures & documents
Links
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)5.72
GWP, uniteach
Source for GWP dataco2data.fi
Emissions database (co2data.fi) ID7000000490
