LED STRIP STRIPLINE 3,6M 9W/M 3000K M/2X5M CABLE
Product code
4130805
StripLine is a flexible LED trim system designed for architectural accent lighting in indoor and outdoor environments, installed on ceilings, walls, recesses, and cabinets. It provides efficient illumination and accurate color reproduction. The LED trim has an IP54 protection rating, features adhesive backing on the rear, and is delivered with connectors pre-assembled. The LED strip has a lifespan of 100,000 hours (9W/m) and must be installed into one of four StripLine aluminum profiles for surface, corner, recessed, or boxless mounting. Indoors, it can also be used independently. The profiles feature a front diffuser made of polycarbonate (PC), which can be easily attached and removed. The front diffuser is also available in roll form, allowing you to create an extremely long continuous front section for the luminaire. The LED lights are closely spaced and produce uniform light. StripLine can be cut at intervals of 3.3 cm (9 W/m) and 3.8 cm (15 W/m) for customized installation. A silicone plug is placed on the cut end to protect against moisture. Various control sets are available with step dimming or push dimming. The control sets include a screwless trim connector for the connection loop. The controllers have an IP20 protection rating. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Light ribbon/-hose/-strip (EC002706)
ModelStrip
Mounting methodOther
Lamp typeLED not exchangeable
Number of nodes per meter182
Number of nodes per foot61
Lamp power per meter9 W
Lamp power per foot3 W
Luminous flux per meter914 lm
Luminaire efficacy102 lm/W
Voltage typeDC
Lamp voltage24 - 24 V

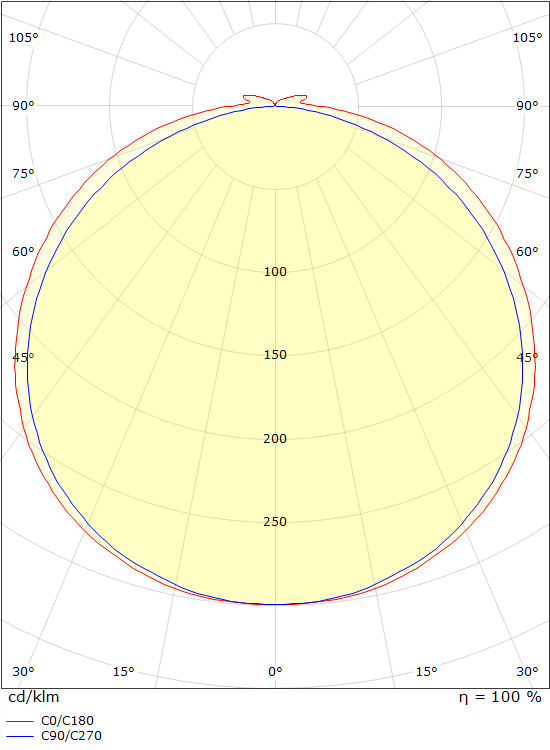

Beam angle120 °
Type of control gearLED operating device voltage-controlled
Suitable for dimmeryes
Exchangeable control gearyes
Product codes
SAPCMV455
STK4130805
PLC4130805
GTIN/EAN7021983914040
Manufacturer part number391404
Vendor material number4130805
Basic information
Package measurements (L x W x H)3600 x 12 x 3.2 mm
Package volume0.138 l
Package weight0.53 kg
Base uniteach
Package units1 / 20 / 480
Package contents–
UNSPSC39111544
BrandSG ARMATUREN
VendorSG ARMATUREN OY
Documents (3)
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)6.89
GWP, uniteach
Source for GWP dataco2data.fi
Emissions database (co2data.fi) ID7000000490
