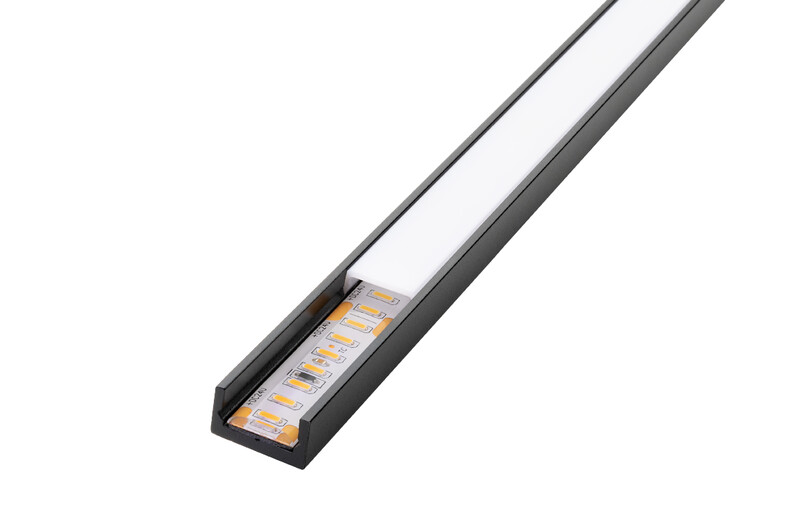

MECH. ACCESSORIES STRIPLINE SURFACE PROFILE SLIM 1,8m BL

Product code
4156333
StripLine is a flexible LED trim system designed for architectural accent lighting in indoor and outdoor environments, installed on ceilings, walls, recesses, and cabinets. It provides efficient illumination and accurate color reproduction. The LED trim has an IP54 protection rating, features adhesive backing on the rear, and is delivered with connectors pre-assembled. The LED strip has a lifespan of 100,000 hours (9W/m) and must be installed into one of four StripLine aluminum profiles for surface, corner, recessed, or boxless mounting. Indoors, it can also be used independently. The profiles feature a front diffuser made of polycarbonate (PC), which can be easily attached and removed. The front diffuser is also available in roll form, allowing you to create an extremely long continuous front section for the luminaire. The LED lights are closely spaced and produce uniform light. StripLine can be cut at intervals of 3.3 cm (9 W/m) and 3.8 cm (15 W/m) for customized installation. A silicone plug is placed on the cut end to protect against moisture. Various control sets are available with step dimming or push dimming. The control sets include a screwless trim connector for the connection loop. The controllers have an IP20 protection rating. This product description is an automated translation of the original Finnish description.

Product details

Technical specifications

Product class (ETIM)Mechanical accessories/spare parts for luminaires (EC002557)
Type of accessory/spare partDecor element
Accessoryno
Spare partno
Transparentno
ColourBlack
MaterialAluminium
Length1800 mm
Width17.3 mm
Height9.5 mm
Diameter0 mm

Product codes

SAPDBY560
STK4156333
PLC4156333
GTIN/EAN7021983914767
Manufacturer part number391476
Vendor material number4156333

Basic information

Package measurements (L x W x H)1800 x 17.3 x 9.5 mm
Package volume0.296 l
Package weight0.182 kg
Base uniteach
Package units1
Package contents
UNSPSC39111541
BrandSG ARMATUREN
VendorSG ARMATUREN OY

Documents (3)
