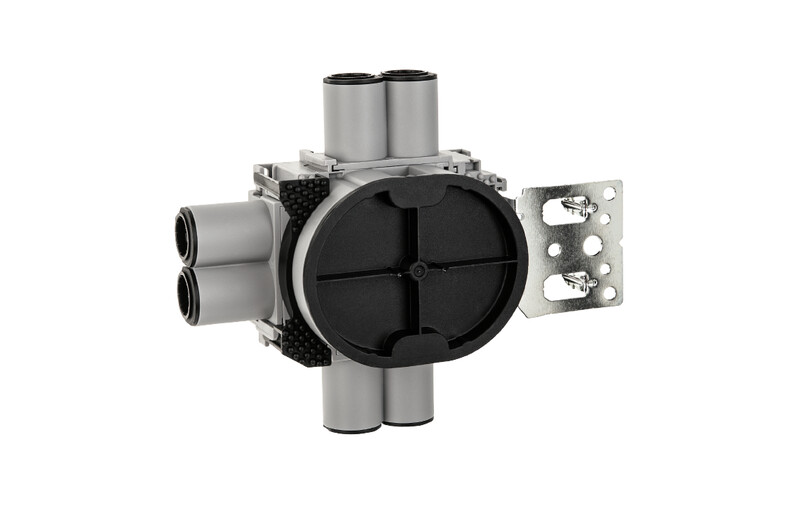

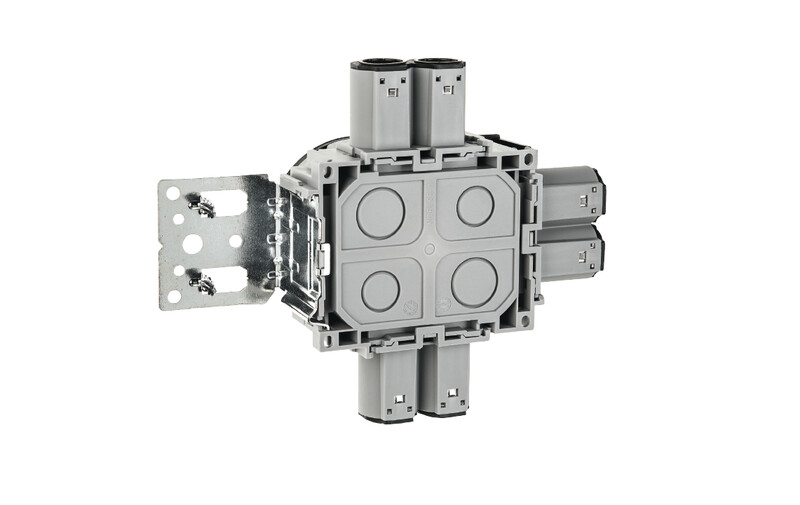

MOUNTING BOX INSTALL BUILT-IN WALL BOX 1,5 6-IN

Product code
1106119
Different types of wall boxes: single, one-and-a-half, and two-part versions with additional connection space. The boxes feature at least four 16 mm knockouts that are easy to remove, allowing 20 mm conduits to fit. All conduit entries include metal springs for securing the conduits. Models with eight knockouts have six 16/20 mm knockouts and two 16 mm conduit connectors. The conduit connectors can be removed, enabling multiple boxes to be combined to create assemblies. This product description is an automated translation of the original Finnish description.

Product details

Technical specifications

Product class (ETIM)Box/housing for built-in mounting in the wall/ceiling (EC002601)
Mounting methodFlush-mounted
ShapeOval
Construction typeBuilt-in installation box (device box)
ModelOne and a half
Provided with revolving ringyes
Couplableyes
Equipped withMounting plate

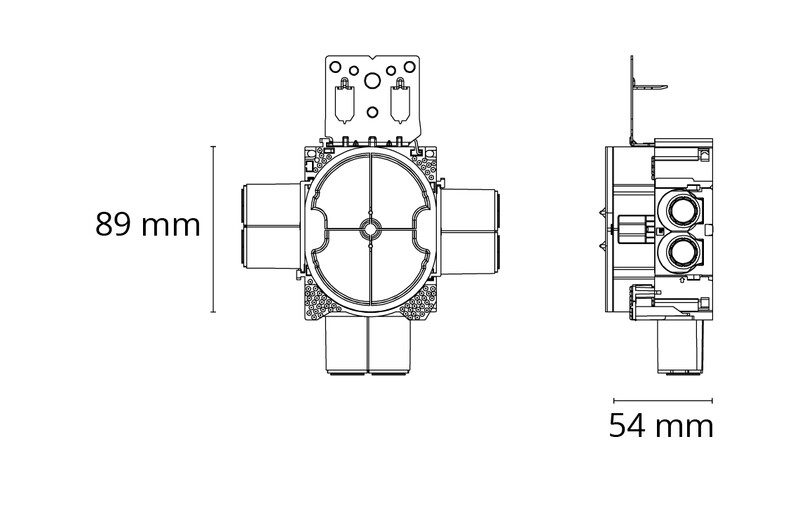

Diameter71 mm
Length172 mm
Width139 mm
Depth0 - 61 mm
Inner depth51 mm
Suitable for wall/board thickness21 - 24 mm
For number of electric fittings1
Mounting switching equipmentScrewing

Product codes

SAPDPP835
STK1106119
PLC1106119
GTIN/EAN7021987900810
Manufacturer part number79008
Vendor material number79008

Basic information

Package measurements (L x W x H)172 x 139 x 61 mm
Package volume1.458 l
Package weight0.161 kg
Package units1
Package contents48 each
UNSPSC40141914
BrandSG ARMATUREN
VendorSG ARMATUREN OY

Environment and safety

Manufacturer

NameSG Armaturen AS
Postal addressSkytterheia 25, 4790 Lillesand, Norway
