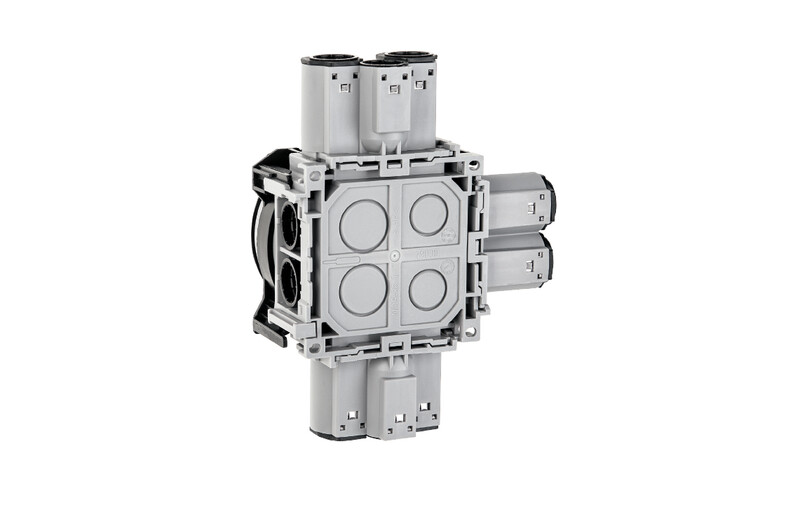

MOUNTING BOX INSTALL BUILT-IN WALL BOX SINGLE
Product code
1106120
Different types of wall boxes: single, one-and-a-half, and two-part versions with additional connection space. The boxes feature at least four 16 mm knockouts that are easy to remove, allowing 20 mm conduits to fit. All conduit entries include metal springs for securing the conduits. Models with eight knockouts have six 16/20 mm knockouts and two 16 mm conduit connectors. The conduit connectors can be removed, enabling multiple boxes to be combined to create assemblies. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Box/housing for built-in mounting in the wall/ceiling (EC002601)
Mounting methodFlush-mounted
ShapeRound
Construction typeBuilt-in installation box (device box)
ModelSingle
Provided with revolving ringyes
Couplableyes
Equipped withNone

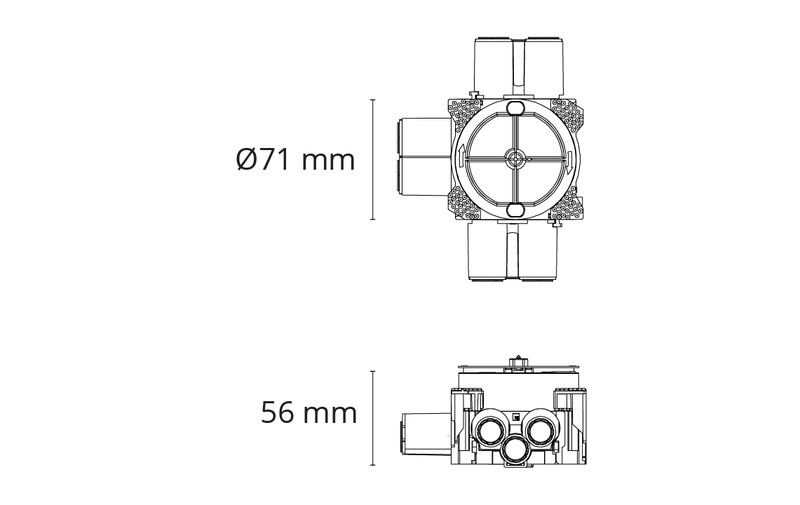

Diameter71 mm
Length144 mm
Width109 mm
Depth0 - 66 mm
Inner depth51 mm
Suitable for wall/board thickness9 - 24 mm
For number of electric fittings1
Mounting switching equipmentScrewing
Product codes
SAPDPP829
STK1106120
PLC1106120
GTIN/EAN7021987900711
Manufacturer part number79007
Vendor material number79007
Basic information
Package measurements (L x W x H)144 x 109 x 66 mm
Package volume1.036 l
Package weight0.129 kg
Package units1
Package contents48 each
UNSPSC40141914
BrandSG ARMATUREN
VendorSG ARMATUREN OY
Documents (4)
Brochures & documents
Environment and safety
Manufacturer
NameSG Armaturen AS
Postal addressSkytterheia 25, 4790 Lillesand, Norway
