PUSH-BUTTON WIRELESS SMART SWITCH WH
Product code
2620515

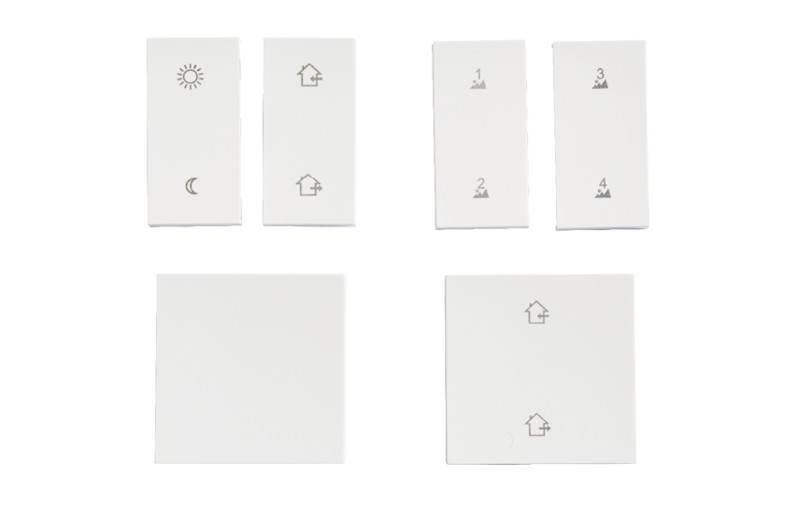

Smart Switch is a battery-powered wireless button with up to four different functions for controlling all SG Smart devices. Functions are programmed via the SG LEDDIM app. It can be used to control scenes, dimmers, or groups/rooms. The Smart Switch can be mounted on a wall or used as a remote control. The outer casing can be removed, and the inner unit fits standard Elkon frames. It comes with several button options: one full button and two half-buttons without labels, as well as a full button and four half-buttons with common labels such as home/off and off/night. Battery life is 2-5 years depending on usage, and the battery can be easily replaced. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Dimmer (EC000025)
Assembly arrangementBasic element with complete housing
Method of operationOther
Number of modules (module system)1
Number of units1
App control via Bluetoothyes
Dimming phase cut-on (leading edge)no
Dimming phase cut-off (trailing edge)no
Serial dimmerno
Type of loadUniversal and LED Retrofit
Substation inputno
Light value memoryno
Applicable with buttonyes
Applicable with movement sensoryes
Applicable with presence indicatorno
Applicable with time switch/timeryes
Product codes
SAPCMV444
STK2620515
PLC2620515
GTIN/EAN7021988204160
Manufacturer part number820416
Vendor material number2620515
Basic information

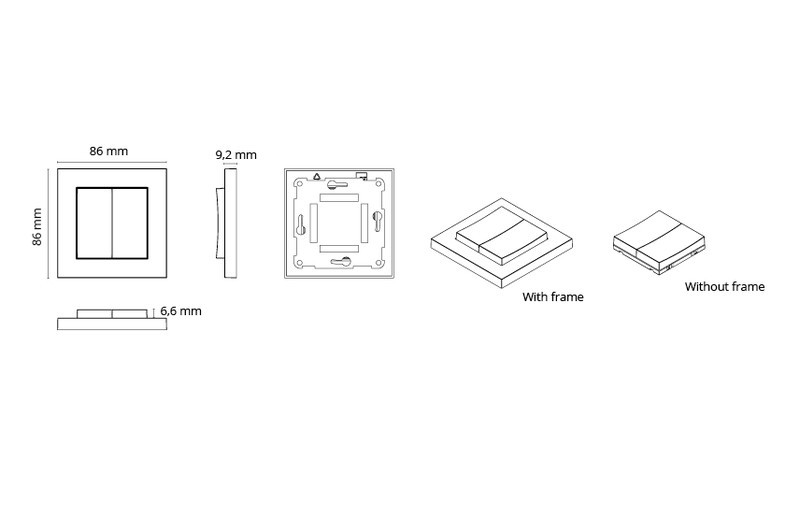

Package measurements (L x W x H)86 x 86 x 9.2 mm
Package volume0.068 l
Package weight0.185 kg
Base uniteach
Package units1 / 60 / 720
Package contents–
UNSPSC39122216
BrandSG ARMATUREN
VendorSG ARMATUREN OY
