SURFACE MOUNTED FRAME INSTALL WALL BOX 1X 23MM BLACK
Product code
2007529
Surface-mounted backbox compatible with all Sg Install series flush-mounted sockets and switches. Secure switches with a single mounting clip. The surface-mounted backbox is made of halogen-free polycarbonate, which provides superior color stability for the white finish, ensuring it remains white without yellowing. In the SG Black series, the material is entirely black, not merely painted, making it resistant to scratches and marks. Polycarbonate is impact-resistant, making it well-suited for public spaces where it may be exposed to impacts and bumps. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Surface mounted box for flush-mounted switching equipment (EC000080)
Assembly arrangementSurface mounted box
Suitable for mounting over existing flush-mounted boxyes
Suitable for modular domestic switching devicesyes
Number of modules (module system)1
Number of units1
Mounting directionHorizontal and vertical
ShapeSquare
Desktop deviceno
MaterialPlastic
Material qualityThermoplastic
Halogen freeyes
Surface protectionUntreated
Surface finishingMatt
ColourBlack
RAL-number (similar)9004
Product codes
SAPCZA327
STK2007529
PLC2007529
GTIN/EAN7021987853116
Manufacturer part number78531
Vendor material number78531
Basic information

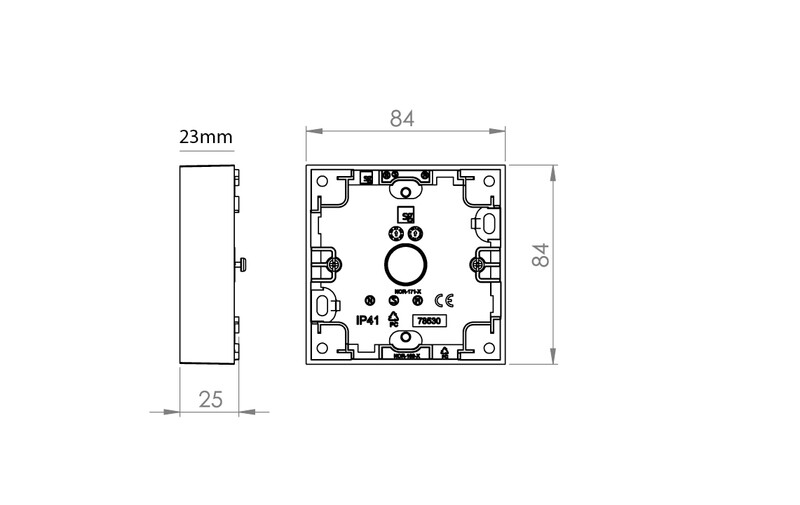

Package measurements (L x W x H)84 x 84 x 25 mm
Package volume0.176 l
Package weight0.039 kg
Base uniteach
Package units6
Package contents–
UNSPSC39121304
BrandSG ARMATUREN
VendorSG ARMATUREN OY
Documents (4)
Environment and safety
Documents (1)
Sustainability brochures & documents
Manufacturer
NameSG Armaturen AS
Postal addressSkytterheia 25, 4790 Lillesand, Norway
