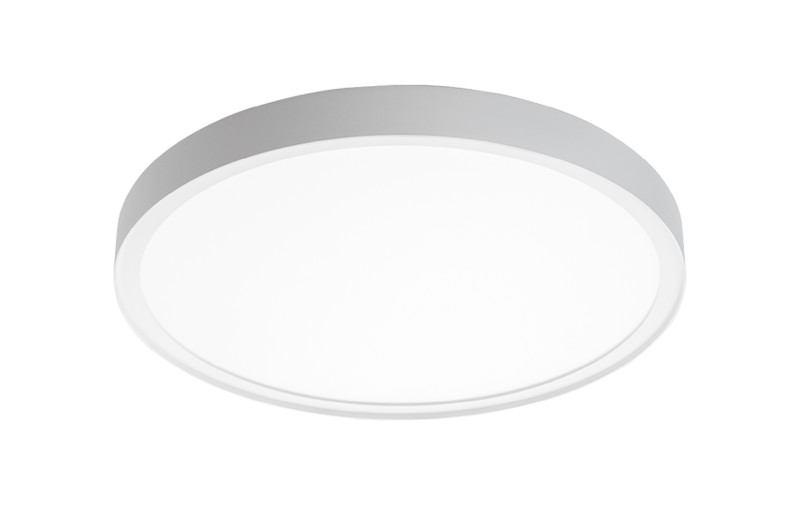

SURFACE MOUNTED LUMINAIRE DISC 480 4000K SEN WH

Product code
4225433
Energy-efficient, low-profile surface-mounted LED luminaires offering a modern look. Round in two sizes and square, with color temperatures of 2700K, 3000K, or 4000K. The prismatic glare shield provides high-quality, glare-free light. The luminaire is made of aluminum and powder-coated in matte black or white. Dimmable with DALI or phase dimmer. We recommend LEDDim 400 and LEDDim Smart phase dimmers. The luminaire is easy to install via a quick-connect mounting plate with suitable mounting intervals for all known ceiling boxes. Surface wiring is also possible. The range also includes motion sensor, emergency light, and Tunable White versions. Power can be adjusted via DIP switches. This product description is an automated translation of the original Finnish description.

Product details

Technical specifications

Product class (ETIM)Ceiling-/wall luminaire (EC002892)
Suitable for wall mountingyes
Suitable for suspended mountingno
Suitable for ceiling mountingyes
Suitable for built-in mountingno
Suitable for surface mountingyes
Suitable for light line configurationyes
Suitable for clamp-mountingno
With mounting materialyes
Suitable for workplace according to EN 12464-1no
Lamp typeLED not exchangeable
With light sourceyes
Suitable for number of light sources1
Lamp holderOther
Housing materialAluminium
Surface protection housingOther

Product codes

SAPDCF205
STK4225433
PLC4225433
GTIN/EAN7021986060058
Manufacturer part number606005
Vendor material number4225433

Basic information

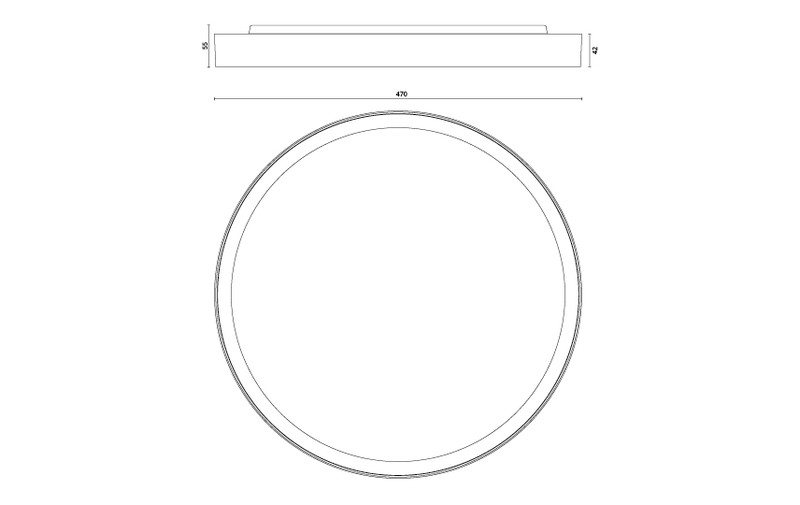

Package measurements (L x W x H)470 x 470 x 55 mm
Package volume12.15 l
Package weight5.35 kg
Base uniteach
Package units1
Package contents
UNSPSC39111544
BrandSG ARMATUREN
VendorSG ARMATUREN OY

Environment and safety

Carbon footprint data

Carbon footprint of product manufacturing (A1–A3 GWP value)69.55
GWP, uniteach
Source for GWP dataco2data.fi
Emissions database (co2data.fi) ID7000000490

Manufacturer

NameSG Armaturen AS
Postal addressSkytterheia 25, 4790 Lillesand, Norway
