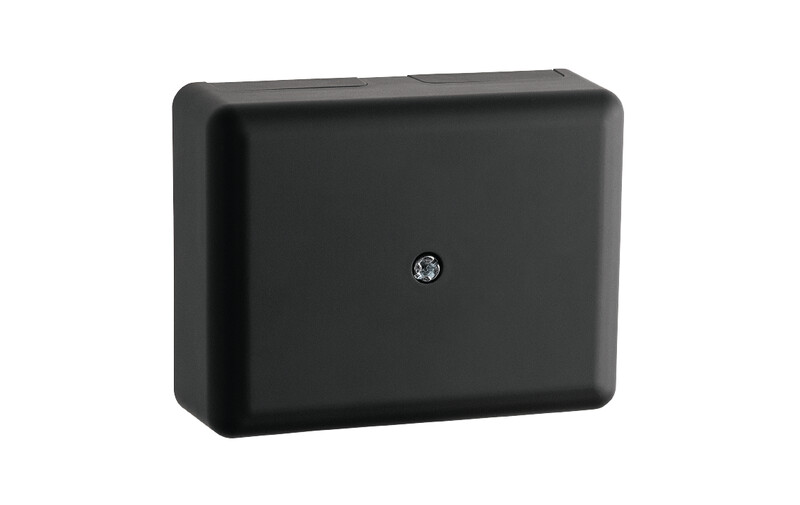

TERMINAL BOX INSTALL IP20 TERMINAL BOX BLACK
Product code
1609001
Surface-mounted junction box IP20. Includes 6 removable screw terminals for conductors up to 2x6mm². Cable entries at the corners and sides of the box. Bottom entry for 16 mm conduit. Made from color-stable polycarbonate. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Terminal box (EC002713)
Number of connection clamps6
Max. conductor cross section6 mm²
Length83 mm
Width64 mm
Depth28 mm
Material plate thickness cabinet0 mm
Mounting methodSurface mounted
ShapeRectangular
Extension possibleyes
Number of inlets0
Type of inletCable
MaterialPlastic
Halogen freeyes
Surface protectionOther
ColourBlack
Product codes
SAPCNU593
STK1609001
PLC1609001
GTIN/EAN7021987870113
Manufacturer part number78701
Vendor material number78701
Basic information
Package measurements (L x W x H)80 x 60 x 20 mm
Package volume0.1 l
Package weight0.06 kg
Base uniteach
Package units6
Package contents–
UNSPSC39121303
BrandSG ARMATUREN
VendorSG ARMATUREN OY
