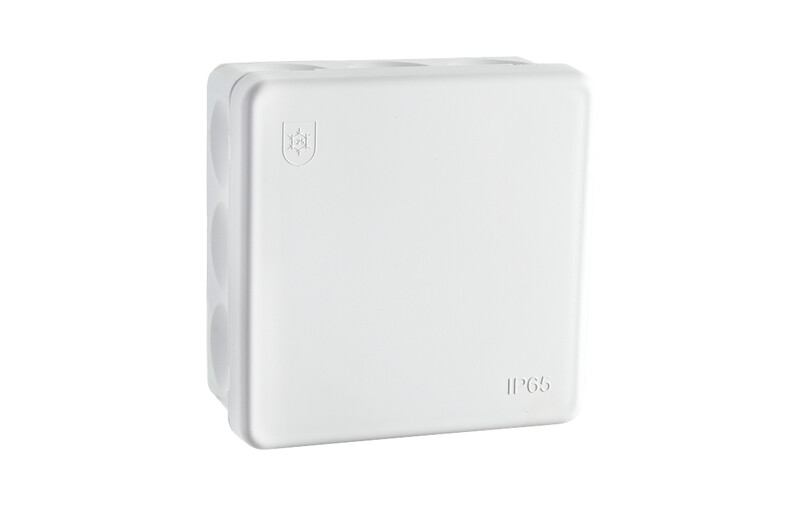

TERMINAL BOX INSTALL IP65 TERMINAL 85X85 BOX WHITE
Product code
1106115
Surface-mounted junction box IP65. 12 integrated membranes around the box and two in the base. Supplied without connectors. Made of color-stable polycarbonate. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Box/housing for surface mounting on the wall/ceiling (EC002600)
Equipped withNone
Max. conductor cross section2.5 mm²
ShapeSquare
Mounting methodUniversal
Mounting in the soilno
Mounting under waterno
For tube diameterOther
Number of inlets14
Inlet from the rearyes
Length85 mm
Width85 mm
Depth40 mm
Connectableno
Type of housing feed-throughSeal membrane
MaterialPlastic
Product codes
SAPCNU587
STK1106115
PLC1106115
GTIN/EAN7021987872018
Manufacturer part number78720
Vendor material number78720
Basic information
Package measurements (L x W x H)85 x 85 x 30 mm
Package volume0.217 l
Package weight0.077 kg
Base uniteach
Package units6
Package contents–
UNSPSC39121332
BrandSG ARMATUREN
VendorSG ARMATUREN OY
Documents (6)
Brochures & documents
Links
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)0.4011
GWP, uniteach
Source for GWP dataEPD
