TOOL FIBRE OTDR

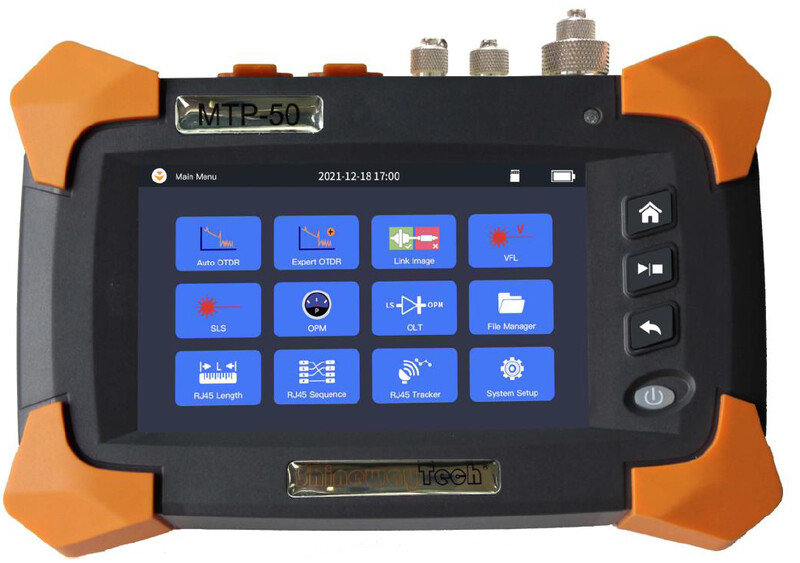

MTP-50 series OTDR provides greater testing capacity, flexibility, and adds value to fiber optic network testing. Convenient and easy-to-use additional features simplify the installer’s work on-site.

MTP-50 Series fiber optic tester includes the following features: automatic OTDR, Expert OTDR, Link image, optical power meter, stabilized laser source, optical loss test, visual fault locator, RJ45 cable length, RJ45 cable sequence, and RJ45 cable tracker.

The LED flashlight and large 6600 mAh lithium battery capacity help installers use the OTDR in dark environments and on-site without worrying about battery depletion. The MTP-50 series OTDR is an ideal testing device for fiber optic installation and maintenance, meeting all different testing requirements of the entire fiber network.


Features:
• Compact, handheld, lightweight, and easy to use
• 5-inch capacitive touch screen facilitates operation and quick response
• Device starts up extremely quickly, allowing you to perform measurements rapidly
• Different OTDR, OPM, and VFL functions of the device can be performed simultaneously
• Single-mode fiber wavelengths: 1310/1550 nm with dynamic range of 24/22 dB
• Device takes dead zone events into account starting from as little as 1.5 m
• Automatic OTDR / Expert OTDR / Averaging / Real-time test
• Link image, intelligent icon-based map view with multiple pulse width options
• Built-in stabilized laser source, optical power meter, optical loss test, and VFL
• Optional RJ45 cable testing function supported: RJ45 cable length, RJ45 cable sequence, and RJ45 cable tracker
• Pass/fail evaluation and ORL test function (you can also set your own pass/fail thresholds)
• 8 GB memory card supporting storage of over 200,000 measurements and folder creation
• OTDR trace file creation (.sor)
• PC software for data processing, downloadable from device via USB connection to PC
• USB charging and data transfer
• Screen capture easily available at any interface
• 8 hours continuous operation / 20 hours standby

Sold product includes:
• OTDR device itself
• Soft protective case
• Device certificate/test report
• Lithium battery 6600 mAh
• USB cable and AC adapter
• Warranty card

Technical specifications

Fiber optic tester features:
• Wavelength: 1310/1550 nm ±20 nm
• Dynamic range: 24/22 dB
• Dead zone events from 1.5 m → and attenuation from 8 m →
• Distance range: 0.5 km, 1 km, 2 km, 4 km, 8 km, 16 km, 32 km, 64 km, 100 km (automatically sets pulse width)
• Pulse width: 3 ns ~ 20 µs (user-adjustable)
• Measurement time options: 5s, 15s, 30s, 1 min, 2 min, 3 min (longer measurement time = more accurate result)
• Distance measurement accuracy: ±(1 m + 5×10??×distance + sampling interval)
• Attenuation measurement accuracy: ±0.05 dB/dB
• Reflectance measurement accuracy: ±3 dB
• Sampling resolution: 0.05 ~ 8 m
• Refractive index: 1.00000 ~ 2.00000
• Loss accuracy: 0.001 dB
• Loss threshold: 0.01 dB
• Connector: SC/APC
• Multi-tasking interface supported

Visual fault locator:
• Multi-tasking: Supported
• Wavelength: 650 nm ±20 nm
• Output power: >= 10 mW
• Settings: CW/1Hz/2Hz
• Connector: SC APC 2.5 mm

Laser source:
• Wavelength: 1310/1550
• Output power: >= -5 dBm ( This product description is an automated translation of the original Finnish description.
