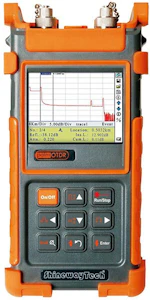

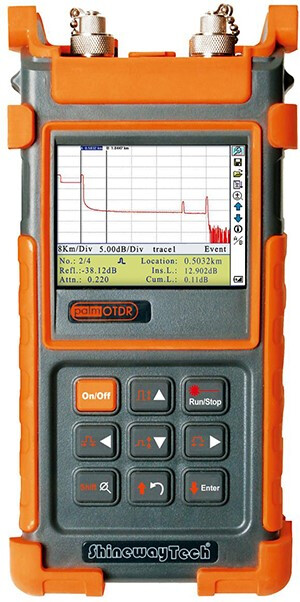

TOOL FIBRE PALM OTDR 1310/1550, 35/34DB

Shinewaytech's new PALM OTDR fiber optic testers offer greater testing capacity, flexibility, and added value for fiber network testing. The device provides top-tier features for various measurements, including up to PON networks.

OTDR-S20BE Basic model features wavelengths suitable for single-mode fiber testing: 1310/1550nm and dynamic range of 35/34dB.

The Advanced model is available with additional features (e.g., light source, PON power meter, microscope, etc.).

PALM OTDR fiber optic testers are available with a wide range of options, including:
• Fiber network testing for single-mode/multi-mode frequencies: 1310/1490/1550/1625/1650 and 850/1300.
• Automatic detection of connectors, splices, events, and macrobends.
• Built-in PON Power Meter for triple-play measurements. (Advanced)
• FTTX service-time testing / testing through splitters (with 1625/1650nm filter). (Advanced)
• Visible light source and visual fault locator. (Advanced)
• Optical Power Meter (OPM) for single-mode and multi-mode wavelengths. (Advanced)
• Microscope for connector inspection. (Optional in Advanced model)

Standard package includes: Device, battery, measurement software, CD, USB data cable, AC adapter, soft carrying case, warranty card, calibration certificate, and user manual.

NOTE! Devices available in various options (Basic/Advanced). Options visible on the datasheet; further information available from customer service.

Technical Specifications:

General available features of the devices:
• Wavelengths: SM 1310/1490/1550/1625/1650 and MM 850/1300
• Dynamic range: Up to 50dB for single-mode and 24dB for multi-mode
• Available distance ranges: 0.1 - 240km
• Pulse widths: 10ns - 300ns
• Measurement time settings: Quick, 15s, 30s, 1min, 2min, 3min
• Distance measurement accuracy: ±(1m+5×10-5× length + sampling interval)
• Attenuation detection accuracy: ±0.05dB/dB
• Reflectance accuracy: ±4dB
• Storage capacity: up to 1000 measurement results
• Device interface: USB
• Connector options: SC / FC or LC connector available
• Battery: NiMH battery / AC power
• Battery life: 8h operation, 20h standby, charging time approx. 4h
• Operating temperature: -20°C - +50°C
• Storage temperature: -40°C - 70°C
• Recommended relative humidity: 0 - 95%
• Weight: 1kg
• Device dimensions: 220x110x70mm (height x width x length)

Visible Light Fault Locator specifications (ADVANCED MODEL):
• Wavelength: 650nm
• Output power: > -3
• Maximum transmission distance: 5km

Light Source features (ADVANCED MODEL):
• Wavelength: Same as the active fiber optic test
• Output power: > -7

Optical Power Meter features (ADVANCED MODEL):
• Wavelengths: 850, 1300, 1310, 1490, 1550, 1625
• Power range: -70dBm - +6dBm (-60 - +6 @850nm)
• Detector type: InGaAs
• Display decimal resolution: 0.01dB
• Accuracy: ±5% ±0.01nW (±0.5dB@850nm)
• Transmission options: 1k, 2k, Hz

PON Power Measurement This product description is an automated translation of the original Finnish description.
