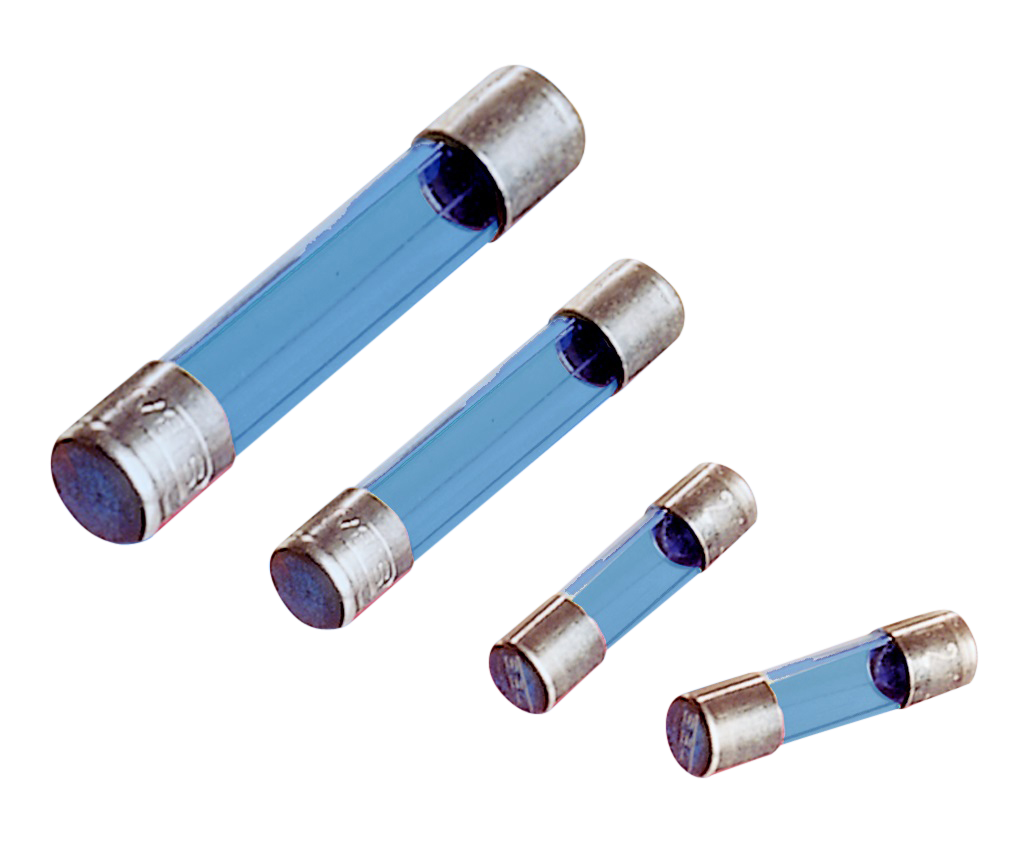

GLASSTUBE FUSE FAST 0,63A 5X20MM
Product code
3056254
Glass tube fuse
Dimensions: 5 x 20 mm, fast (F), rated voltage: 250 VAC, without indicator, IEC 60127-2/2, DIN VDE 0820-2/2 This product description is an automated translation of the original Finnish description.
Dimensions: 5 x 20 mm, fast (F), rated voltage: 250 VAC, without indicator, IEC 60127-2/2, DIN VDE 0820-2/2 This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Cylindrical fuse (EC002704)
ModelGlass fuse
Size5x20 mm
Rated current1.6 A
Rated voltage AC250 V
Voltage typeAC/DC
Utilization category according to IEC 60269gR
Type of fuse status indicatorOther
Release characteristicFast (F)
Breaking capacity at nominal voltage, AC0.035 kA
Breaking capacity at nominal voltage, DC0.035 kA
Power loss at rated current0.7 W
Product codes
SAPAAL095
STK3056254
PLC3056254
GTIN/EAN4028854012327
Manufacturer part number7000134.1,6
Vendor material number3056254
Basic information
Package measurements (L x W x H)20 x 5 x 5 mm
Package volume0.001 l
Package weight0.001 kg
Package units1 / 10 / 100
Package contents10 each
UNSPSC39121607
BrandSIBA
VendorHELLERMANN TYTON
The country of origin stated by the supplierFinland
Documents (1)
Links
Environment and safety
Manufacturer
NameHellermannTyton aktiebolaget sivuliike Suomessa
Postal addressÄyritie 12B, 01510, Vantaa, Finland
