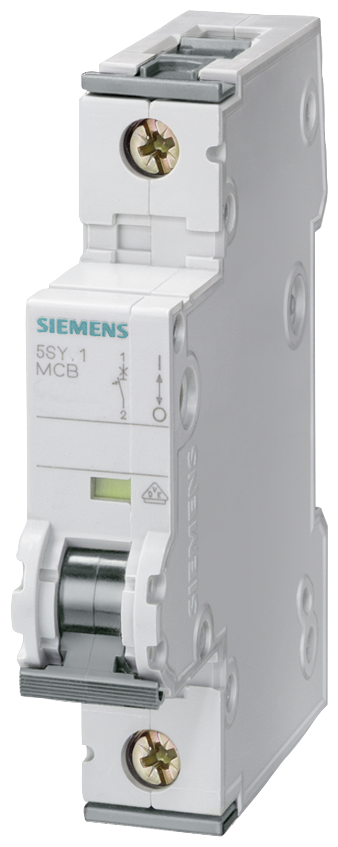

CIRCUIT BREAKER 1-POLE 32A C-CURVE
Product code
3223524
The Sentron module instrument series covers all the most common products This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Miniature circuit breaker (MCB) (EC000042)
Built-in depth70 mm
Release characteristicC
Number of poles (total)1
Number of protected poles1
Rated current32 A
Rated voltage400 V
Rated insulation voltage Ui440 V
Rated impulse withstand voltage Uimp4 kV
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V6 kA
Voltage typeAC/DC
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V6 kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V15 kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V15 kA
Frequency50-60 Hz
Current limiting class3
Product codes
SAPGBE220
STK3223524
PLC3223524
GTIN/EAN4001869246109
Manufacturer part number5SY6132-7
Vendor material number3223524
Basic information
Package measurements (L x W x H)93 x 83 x 21 mm
Package volume0.162 l
Package weight0.165 kg
Base uniteach
Package units1
Package contents–
UNSPSC39121603
BrandSIEMENS
VendorSIEMENS OY
