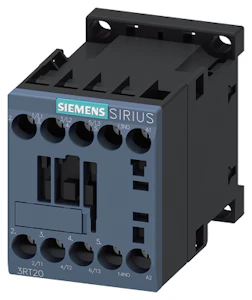

CONTACTOR 3RT2015-1AP01
Product code
3720600
No product description available.
Product details
Technical specifications
Rated control supply voltage AC 50 Hz230 ... 230 V
Rated control supply voltage AC 60 Hz230 ... 230 V
Rated control supply voltage DC-99999 ... -99999 V
Voltage type for actuatingAC
Number of normally closed contacts as main contact0
Number of normally open contacts as main contact3
Type of electrical connection of main circuitScrew connection
Rated operation current Ie at AC-1, 400 V18 A
Rated operation current Ie at AC-3, 400 V7 A
Rated operation power at AC-3, 400 V3 kW
Rated operation current Ie at AC-4, 400 V6.5 A
Rated operation power at AC-4, 400 V3 kW
Number of auxiliary contacts as normally open contact1
Number of auxiliary contacts as normally closed contact0
Modular versiontrue
Product codes
SAPGBQ153
PLC3720600
STK3720600
GTIN/EAN4011209780767
Manufacturer part number3RT2015-1AP01
Vendor material number3RT2015-1AP01
Basic information
Package measurements (L x W x H)82 x 60 x 46 mm
Package volume0.226 l
Package weight0.22 kg
Base uniteach
Package units1
Package contents1
UNSPSC39121529
BrandSIEMENS
VendorSIEMENS OY
