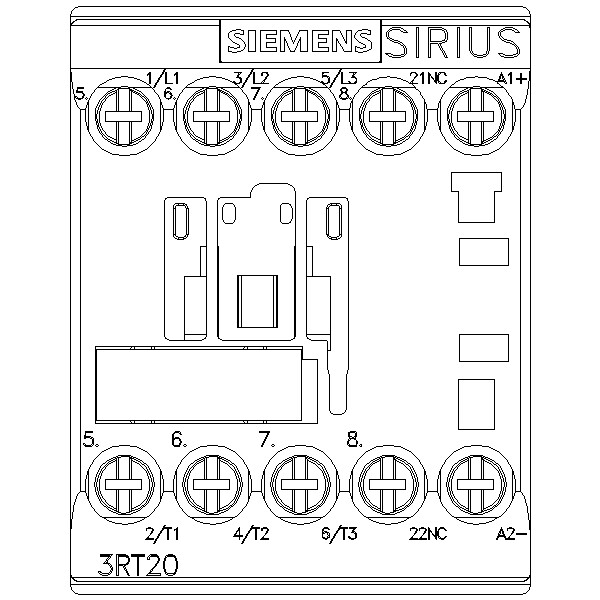

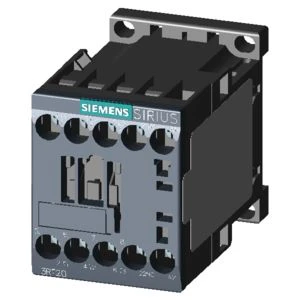

CONTACTOR 3RT2016-1VB42
Product code
3720494
Using the SIRIUS modular system, which consists of motor connection, protection components, starters, and other system components. A fast, simple, flexible, and space-saving solution for switchgear. All this is possible with SIRIUS products. The modular structure is possible up to 250 kW/400 V power. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Power contactor, AC switching (EC000066)
Rated control supply voltage AC 50 Hz-99999 - -99999 V
Rated control supply voltage AC 60 Hz-99999 - -99999 V
Rated control supply voltage DC24 - 24 V
Voltage type for actuatingDC
Number of normally closed contacts as main contact0
Number of normally open contacts as main contact3
Type of electrical connection of main circuitScrew connection
Rated operation current Ie at AC-1, 400 V22 A
Rated operation current Ie at AC-3, 400 V9 A
Rated operation power at AC-3, 400 V4 kW
Rated operation current Ie at AC-4, 400 V8.5 A
Rated operation power at AC-4, 400 V4 kW
Rated operation power NEMA3.677 kW
Number of auxiliary contacts as normally open contact0
Number of auxiliary contacts as normally closed contact1
Product codes
SAPCOX017
STK3720494
PLC3720494
GTIN/EAN4011209844063
Manufacturer part number3RT2016-1VB42
Vendor material number3RT2016-1VB42
Basic information
Package measurements (L x W x H)62 x 50 x 78 mm
Package volume0.242 l
Package weight0.296 kg
Base uniteach
Package units1
Package contents–
UNSPSC39121529
BrandSIEMENS
VendorSIEMENS OY
