CONTACTOR 3RT2017-1VB42

Name: CONTACTOR 3RT2017-1VB42
Brand: SIEMENS
SKU: COX001

Product code

3720496

No product description available.

Product details

Rated control supply voltage AC 50 Hz-99999 ... -99999 V

Rated control supply voltage AC 60 Hz-99999 ... -99999 V

Rated control supply voltage DC24 ... 24 V

Voltage type for actuatingDC

Number of normally closed contacts as main contact0

Number of normally open contacts as main contact3

Type of electrical connection of main circuitScrew connection

Rated operation current Ie at AC-1, 400 V22 A

Rated operation current Ie at AC-3, 400 V12 A

Rated operation power at AC-3, 400 V5.5 kW

Rated operation current Ie at AC-4, 400 V8.5 A

Rated operation power at AC-4, 400 V4 kW

Rated operation power NEMA5.516 kW

Number of auxiliary contacts as normally open contact0

Number of auxiliary contacts as normally closed contact1

SAPCOX001

PLC3720496

STK3720496

GTIN/EAN4011209844094

Manufacturer part number3RT2017-1VB42

Vendor material number3RT2017-1VB42

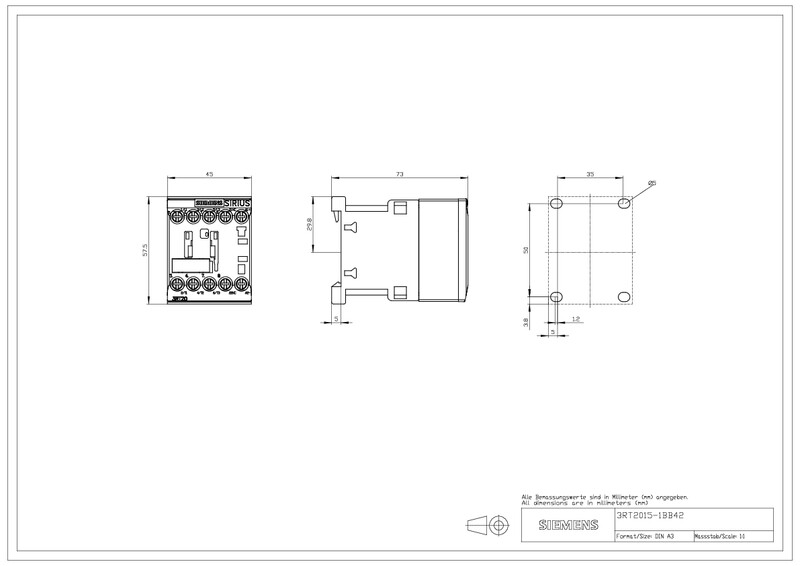

Package measurements (L x W x H)62 x 50 x 78 mm

Package volume0.242 l

Package weight0.297 kg

Base uniteach

Package units1

Package contents1

UNSPSC39121529

BrandSIEMENS

VendorSIEMENS OY
